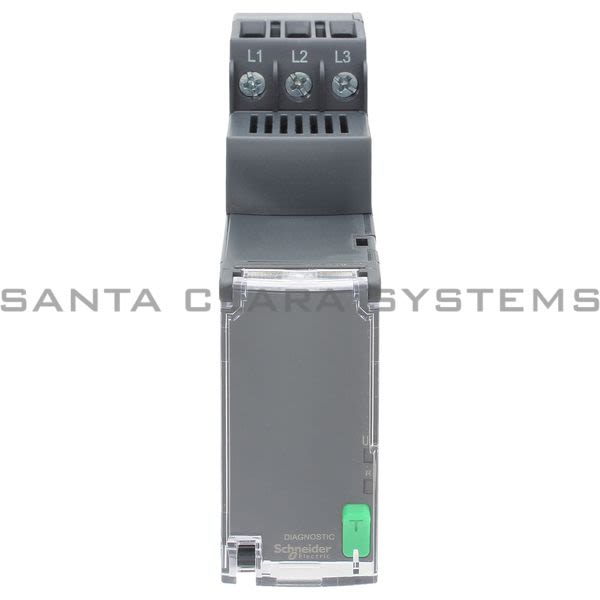

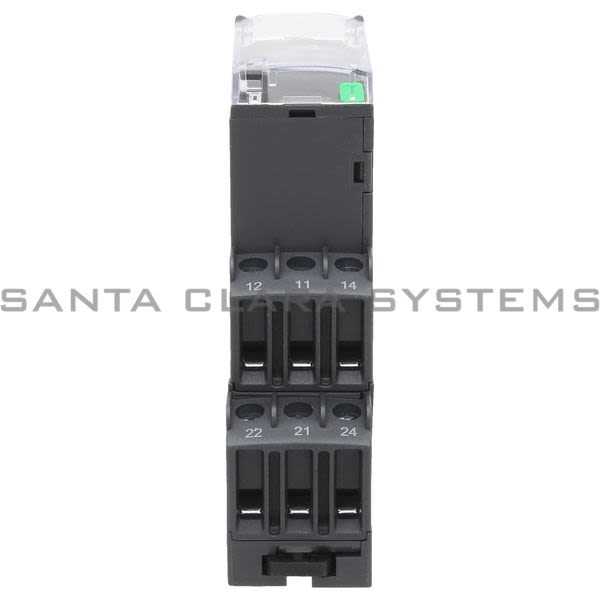

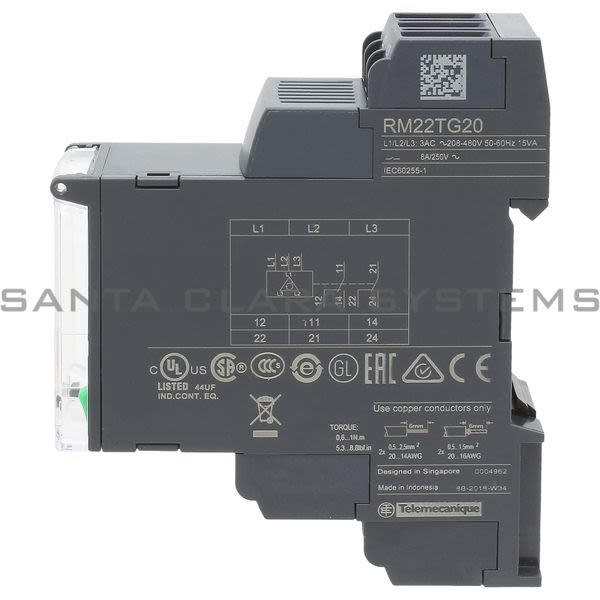

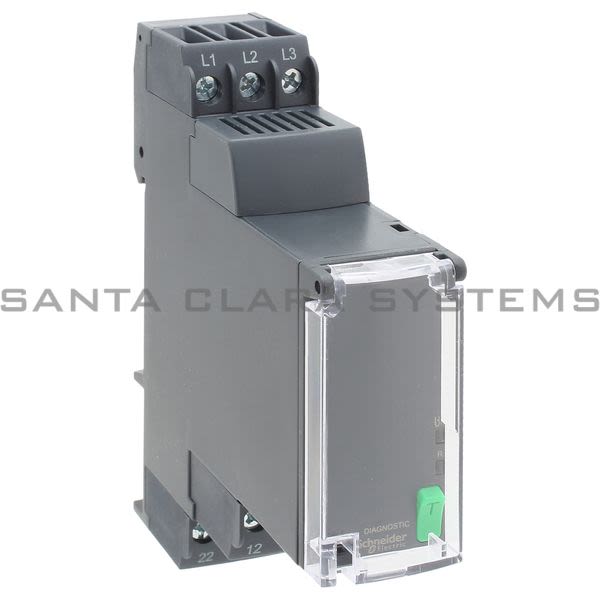

RM22TG20

Telemecanique - three-Phase control relay 183?528Vac, 2 C/O

Current response time:

By 5AM PT on Monday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: three-Phase control relay 183?528Vac, 2 C/O
Product weight: 0.2 lb(US) (0.09 kg)
Range of product: Zelio Control
IP degree of protection: IP20 on terminals conforming to IEC 60529IP40 on housing conforming to IEC 60529IP50 on front panel conforming to IEC 60529
Standards: EN/IEC 60255-1
Width: 0.89 in (22.5 mm)
Mechanical durability: 10000000 cycles
Tightening torque: 5.31...8.85 lbf.in (0.6...1 N.m) conforming to IEC 60947-1
Connections - terminals: Screw terminals 2 x 0.5...2 x 2.5 mm² - AWG 20...AWG 14, solid cable without cable endScrew terminals 2 x 0.2...2 x 1.5 mm² - AWG 24...AWG 16, flexible cable with cable endScrew terminals 1 x 0.5...1 x 3.3 mm² - AWG 20...AWG 12, solid cable without cable endScrew terminals 1 x 0.2...1 x 2.5 mm² - AWG 24...AWG 14, flexible cable with cable end
Mounting support: 35 mm DIN rail conforming to EN/IEC 60715
Vibration resistance: 0.075 mm (f = 10...58.1 Hz) (not in operation) conforming to IEC 60068-2-61 gn (f = 10...58.1 Hz) (not in operation) conforming to IEC 60068-2-60.035 mm (f = 58.1...150 Hz) (in operation) conforming to IEC 60068-2-60.5 gn (f = 58.1...150 Hz) (in operation) conforming to IEC 60068-2-6
Shock resistance: 15 gn for 11 ms (not in operation) conforming to IEC 60068-2-275 gn for 11 ms (in operation) conforming to IEC 60068-2-27
Electrical durability: 100000 cycles
Insulation resistance: > 100 MOhm at 500 V DC conforming to IEC 60255-27
Utilization category: AC-1 conforming to IEC 60947-4-1DC-1 conforming to IEC 60947-4-1AC-15 conforming to IEC 60947-5-1DC-13 conforming to IEC 60947-5-1
Control circuit voltage limits: 183...528 V AC
[Us] rated supply voltage: 208...480 V AC
Overvoltage category: III conforming to UL 508III conforming to IEC 60664-1
Relative humidity: 93...97 % at 25...55 °C conforming to IEC 60068-2-30
Response time: <= 200 ms
Mounting position: Any position
Housing material: Self-extinguishing plastic
Dielectric test voltage: 2.5 kV for 1 min AC 50 Hz conforming to IEC 60255-27
Reset time: <= 1500 ms at maximum voltage
Immunity to micro breaks: <= 10 ms

Product or component type: Modular measurement and control relays
Maximum switching voltage: 250 V AC
Electromagnetic compatibility: Conducted and radiated emissions class B conforming to CISPR 22Immunity for residential, commercial and light-industrial environments conforming to EN/IEC 61000-6-1Electrostatic discharge 6 kV level 3 contact discharge conforming to IEC 61000-4-2Electrostatic discharge 8 kV level 3 air discharge conforming to IEC 61000-4-2Radiated radio-frequency electromagnetic field immunity test 10 V/m level 3 conforming to IEC 61000-4-3Electrical fast transient/burst immunity test 4 kV level 4 direct conforming to IEC 61000-4-4Electrical fast transient/burst immunity test 2 kV level 4 capacitive coupling conforming to IEC 61000-4-4Surge immunity test 4 kV level 4 common mode conforming to IEC 61000-4-5Surge immunity test 2 kV level 4 differential mode conforming to IEC 61000-4-5Conducted and radiated emissions class B group 1 conforming to CISPR 11Emission standard for industrial environments conforming to EN/IEC 61000-6-4Emission standard for residential, commercial and light-industrial environments conforming to EN/IEC 61000-6-3Immunity for industrial environments conforming to EN/IEC 61000-6-2
Relay type: Control relay
Minimum switching current: 10 mA at 5 V DC
Phase: 3 phases
Maximum switching current: 8 A AC
Product certifications: RCMEACChina RoHSCECSAULGLCCC
Relay name: RM22TG
Ambient air temperature for storage: -40...158 °F (-40...70 °C)
Relay monitored parameters: Phase failure detectionPhase sequence
Supply voltage limits: 183...528 V AC
Ambient air temperature for operation: -20...50 °C at 60 Hz-20...60 °C at 50 Hz AC/DC
Time delay type: Without
switching capacity in VA: 2000 VA
power consumption in VA: 15 VA at 480 V AC 60 Hz
Measurement range: 183...528 V voltage AC
Voltage detection threshold: < 100 V AC
Supply frequency: 50...60 Hz +/- 10 %
Output contacts: 2 C/O
Pollution degree: 3 conforming to IEC 60664-13 conforming to UL 508
Run-up delay at power-up: <= 650 ms
status LED: LED yellow relay ONLED green power ON
Safety reliability data: MTTFd = 924.6 yearsB10d = 850000
Contacts material: Cadmium free

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on RM22TG20 . Santa Clara Systems carries 10,416 items from Telemecanique.
