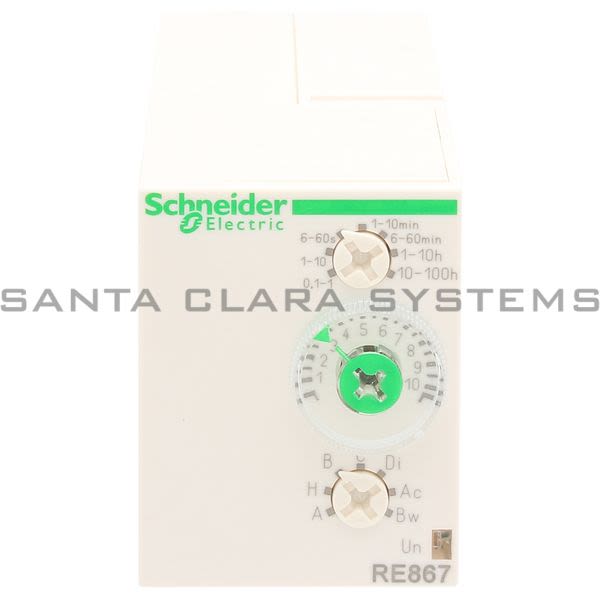

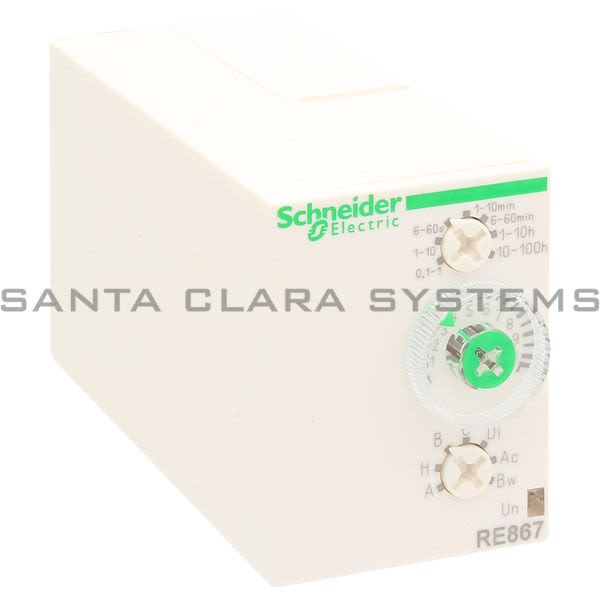

Telemecanique RE88867105 universal plug-in timing relay - 0.1 s..60 mn - 24..240 V AC - 1 OC Product Image

RE88867105

Telemecanique - universal plug-in timing relay - 0.1 s..60 mn - 24..240 V AC - 1 OC

Current response time:

16 Minutes 28 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: universal plug-in timing relay - 0.1 s..60 mn - 24..240 V AC - 1 OC
Product weight: 0.18 lb(US) (0.08 kg)
Range of product: Zelio Time
IP degree of protection: IP20 (terminal block) conforming to IEC 60529, IP40 (housing) conforming to IEC 60529, IP50 (front panel) conforming to IEC 60529
Standards: EN 50081-1/2, IEC 61812-1, EN 50082-1/2, IEC 60669-2-3, 89/336/EEC, 93/68/EEC, 73/23/EEC
[Uimp] rated impulse withstand voltage: 5 kV 1.2...50 s conforming to IEC 60664-1, 5 kV for 1.2...50 s conforming to IEC 61812-1
Mechanical durability: 5000000 cycles
Vibration resistance: 0.35 mm (f = 10...55 Hz) conforming to IEC 60068-2-6
Electrical durability: 100000 cycles 8 A at 250 V resistive

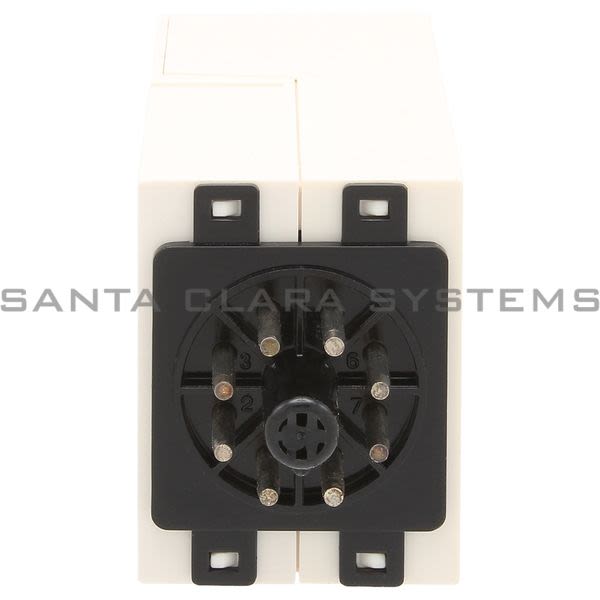

Electrical connection: Plug-in sub-base 8 pin(s)
[Us] rated supply voltage: 24...240 V AC at 50/60 Hz, 24 V DC
Relative humidity: 93 % without condensation conforming to IEC 60068-2-3
Breaking capacity: 80 W
Housing material: Self-extinguishing
Immunity to micro breaks: > 10 ms
Product or component type: Universal timing relay
Contacts material: AgNi (cadmium free)
Dielectric strength: 2.5 kV 1 mA/1 minute 50 Hz conforming to IEC 61812-1
Discrete output type: Relay
Line Rated Current: 8:00 AM
Width pitch dimension: 1.38 in (35 mm)
Product certifications: cURus, CSA, GL
Component name: RE88867
Voltage range: 0.85...1.1 Us
Ambient air temperature for operation: -4...140 F (-20...60 C)

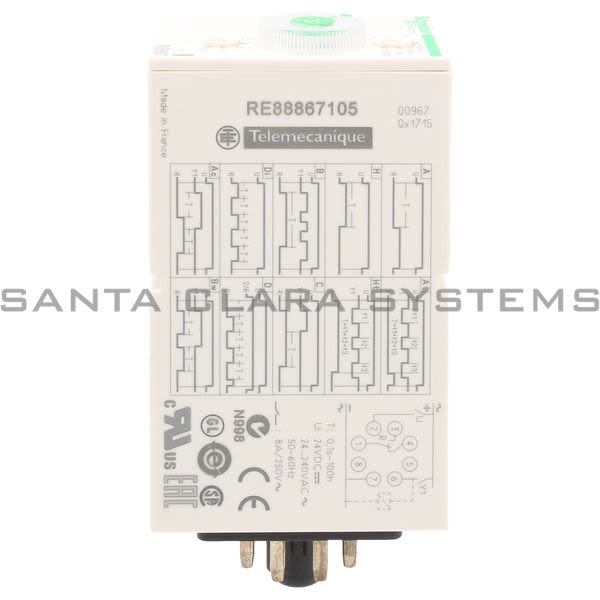

Time delay type: C, At, Ht, B, A, Di, H, W, Ac, D
Ambient air temperature for storage: -22...140 F (-30...60 C)
Time delay range: 0.1...1 s, 6...60 min, 10...100 h, 1...10 s, 1...10 min, 1...10 h, 6...60 s
Repeat accuracy: +/- 0.5 % conforming to IEC 61812-1
Temperature drift: +/- 0.05 %/C
Voltage drift: +/- 0.2 %/V
Setting accuracy of time delay: +/- 10 % of full scale at 25 C conforming to IEC 61812-1
Resistance to electrostatic discharge: 6 kV (in contact) conforming to IEC 61000-4-2 level 3, 8 kV (in air) conforming to IEC 61000-4-2 level 3
Minimum pulse duration: 100 ms under load, 30 ms
Resistance to electromagnetic fields: 9.14 V/yd (10 V/m), 80 MHz to 1 GHz conforming to ENV 50140/204 level 3, 9.14 V/yd (10 V/m), 80 MHz to 1 GHz conforming to IEC 61000-4-3 level 3
Reset time: 100 ms on de-energisation
Resistance to fast transients: 1 kV, capacitive connecting clip conforming to IEC 61000-4-4 level 3, 2 kV, direct conforming to IEC 61000-4-4 level 3
On-load factor: 100%
Immunity to radio electric fields: 10 V (0.15...80 MHz) conforming to ENV 50141 (IEC 61000-4-6)
power consumption in VA: 32 VA 240 V
Immunity to voltage dips: 30 % / 10 ms conforming to IEC 61000-4-11, 60 % / 100 ms conforming to IEC 61000-4-11, 95 % / 5 s conforming to IEC 61000-4-11
power consumption in W: 0.6 W 24 V, 1.5 W 240 V
Disturbance radiated/conducted: Class B conforming to EN 55022 (EN 55011 group 1)
Minimum switching current: 10 mA
Maximum switching current: 8:00 AM
Maximum switching voltage: 250 V
Marking: CE
Creepage distance: 4 kV/3 conforming to IEC 60664-1
Surge withstand: 1 kV (differential mode) conforming to IEC 61000-4-5 level 3, 2 kV (common mode) conforming to IEC 61000-4-5 level 3
Local signaling: LED indicator green flashing: timing in progress, LED indicator green on steady: relay energized, no timing in progress, LED indicator green pulsing: relay energized, no timing in progress (except functions Di-D)
