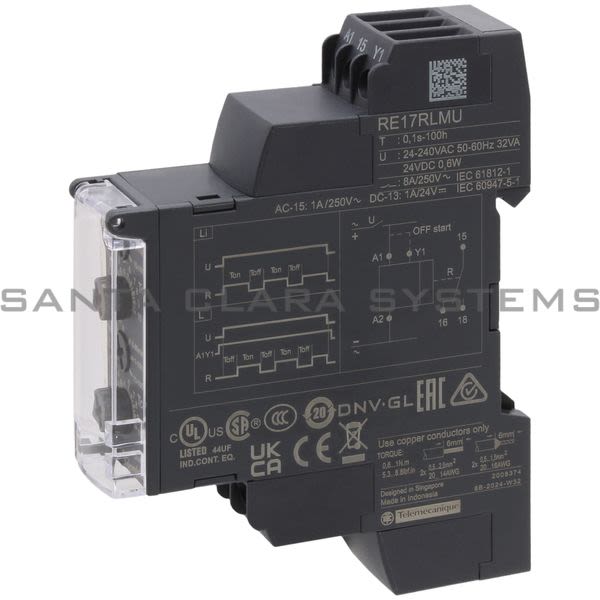

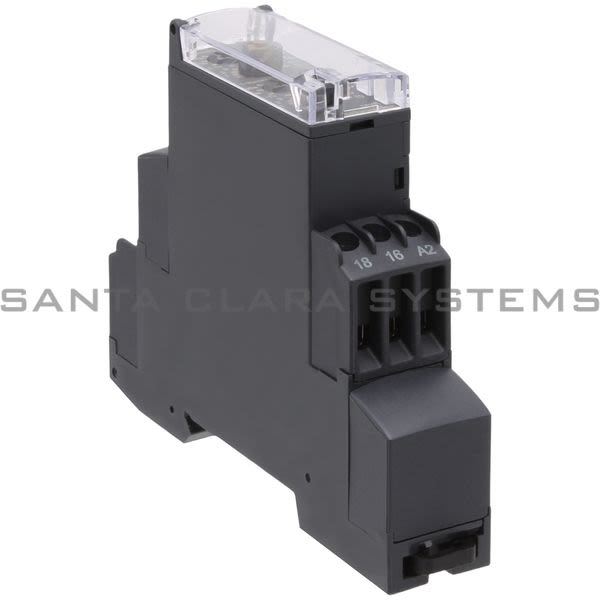

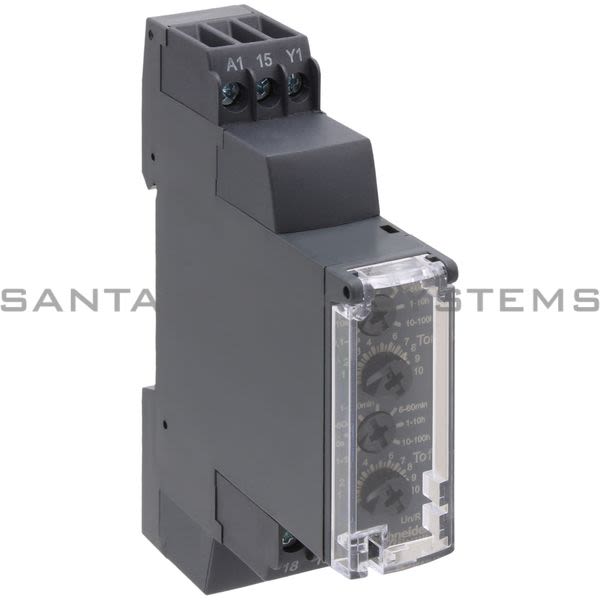

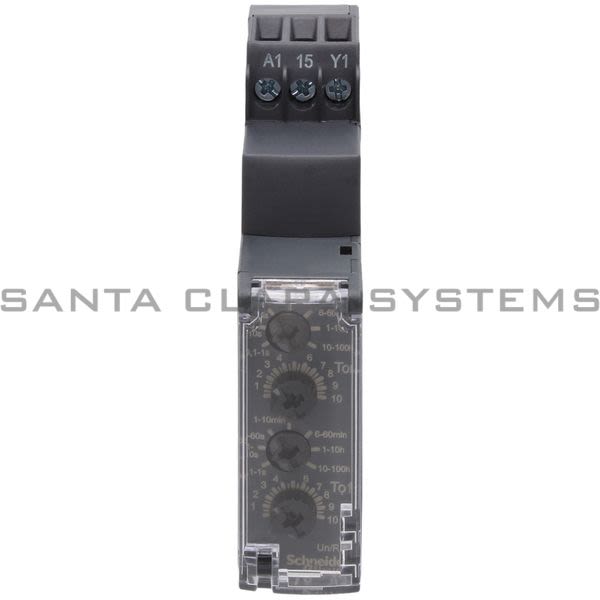

RE17RLMU

Telemecanique - asymmetrical flashing relay - 1 s..100 h - 24..240 V AC - 1 OC

Current response time:

14 Minutes 30 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: asymmetrical flashing relay - 1 s..100 h - 24..240 V AC - 1 OC
Product weight: 0.15 lb(US) (0.07 kg)
Range of product: Zelio Time
IP degree of protection: IP20 (terminal block) conforming to IEC 60529, IP40 (housing) conforming to IEC 60529, IP50 (front panel) conforming to IEC 60529
Standards: EN 61000-6-4, EN 61000-6-1, 2004/108/EC, IEC 61812-1, EN 61000-6-3, 2006/95/EC, EN 61000-6-2
Device short name: RE17R
Width: 0.69 in (17.5 mm)
[Uimp] rated impulse withstand voltage: 5 kV (1.2/50 s)
Mechanical durability: 10000000 cycles
Tightening torque: 5.31...8.85 lbf.in (0.6...1 N.m) conforming to IEC 60947-1
Connections - terminals: Screw terminals, clamping capacity: 1 x 0.5...1 x 3.3 mm AWG 20...AWG 12 (solid) without cable end, Screw terminals, clamping capacity: 2 x 0.5...2 x 2.5 mm AWG 20...AWG 14 (solid) without cable end, Screw terminals, clamping capacity: 1 x 0.2...1 x 2.5 mm AWG 24...AWG 14 (flexible) with cable end, Screw terminals, clamping capacity: 2 x 0.2...2 x 1.5 mm AWG 24...AWG 16 (flexible) with cable end
Mounting support: 35 mm DIN rail conforming to EN/IEC 60715
Vibration resistance: 20 m/s (f = 10...150 Hz) conforming to IEC 60068-2-6
Shock resistance: 15 gn (duration = 11 ms) conforming to IEC 60068-2-27
Electrical durability: 100000 cycles resistive load (8 A at 250 V AC maximum)
Insulation resistance: 100 MOhm at 500 V DC conforming to IEC 60664-1
[Us] rated supply voltage: 24...240 V AC at 50/60 Hz, 24 V DC
Relative humidity: 93 % without condensation conforming to IEC 60068-2-30
Control type: Selector switch on front panel
Breaking capacity: <= 2000 VA
Mounting position: Any position in relation to normal vertical mounting plane
Input voltage: 10 V
Housing material: Self-extinguishing
Contacts type and composition: 1 C/O
Immunity to micro breaks: <= 20 ms
Product or component type: Modular timing relay
Contacts material: Cadmium free
Discrete output type: Relay

Product certifications: cULus, CSA, GL
Ambient air temperature for storage: -22...140 F (-30...60 C)
Voltage range: 0.85...1.1 Us
Ambient air temperature for operation: -4...140 F (-20...60 C)
Time delay type: L, Li
Supply frequency: 50...60 Hz (+/- 5 %)
Time delay range: 1...10 min, 10...100 h, 1...10 h, 6...60 s, 6...60 min, 1...10 s, 0.1...1 s
Nominal output current: 8:00 AM
Electromagnetic compatibility: Electrostatic discharge immunity test, in contact at 6 kV conforming to IEC 61000-4-2 level 3, Electrostatic discharge immunity test, in air at 8 kV conforming to IEC 61000-4-2 level 3, Susceptibility to electromagnetic fields, 80 MHz to 1 GHz at 10 V/m conforming to IEC 61000-4-3 level 3, Electrical fast transient/burst immunity test, capacitive connecting clip at 1 kV conforming to IEC 61000-4-4 level 3, Electrical fast transient/burst immunity test, direct at 2 kV conforming to IEC 61000-4-4 level 3, 1.2/50 s shock waves immunity test, differential mode at 1 kV conforming to IEC 61000-4-5 level 3, 1.2/50 s shock waves immunity test, common mode at 2 kV conforming to IEC 61000-4-5 level 3, Conducted RF disturbances, 0.15...80 MHz at 10 V conforming to IEC 61000-4-6 level 3, Voltage dips and interruptions immunity test, 1 cycle at 0 % conforming to IEC 61000-4-11, Voltage dips and interruptions immunity test, 25/30 cycles at 70 % conforming to IEC 61000-4-11, Conducted and radiated emissions conforming to EN 55022 class B
Repeat accuracy: +/- 0.5 % conforming to IEC 61812-1
Temperature drift: +/- 0.05 %/C
Voltage drift: +/- 0.2 %/V
Setting accuracy of time delay: +/- 10 % of full scale at 25 C conforming to IEC 61812-1
Impulse duration: 100 ms with load in parallel typical, 30 ms typical
Reset time: 120 ms on de-energisation typical
On-load factor: 100%
power consumption in VA: 0...32 VA at 240 V AC
power consumption in W: <= 0.6 W at 24 V DC
Minimum switching current: 10 mA at 5 V DC
Maximum switching current: 8 A AC/DC
Maximum switching voltage: 250 V AC
operating rate in Hz: 10 Hz
Dielectric strength: 2.5 kV 1 mA/1 minute 50 Hz conforming to IEC 61812-1
Delay response: < 100 ms
Marking: CE
Creepage distance: 4 kV/3 conforming to IEC 60664-1
Safety reliability data: B10d = 270000, MTTFd = 296.8 years
Local signaling: LED indicator on steady: relay energized, no timing in progress, LED indicator flashing: timing in progress (80 % ON and 20 % OFF)
