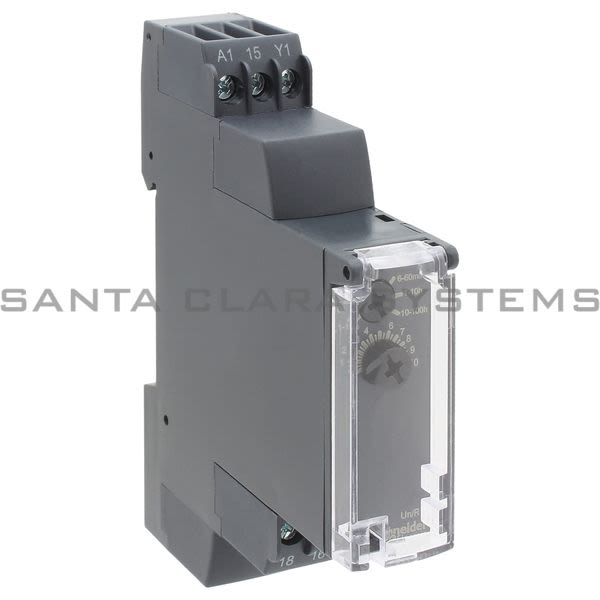

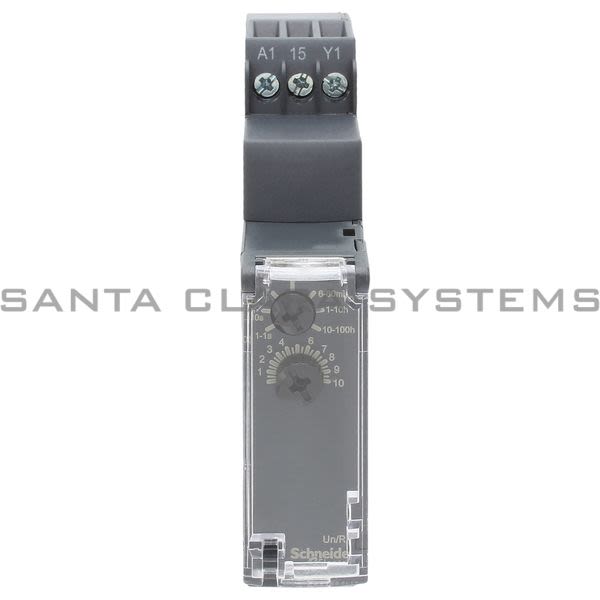

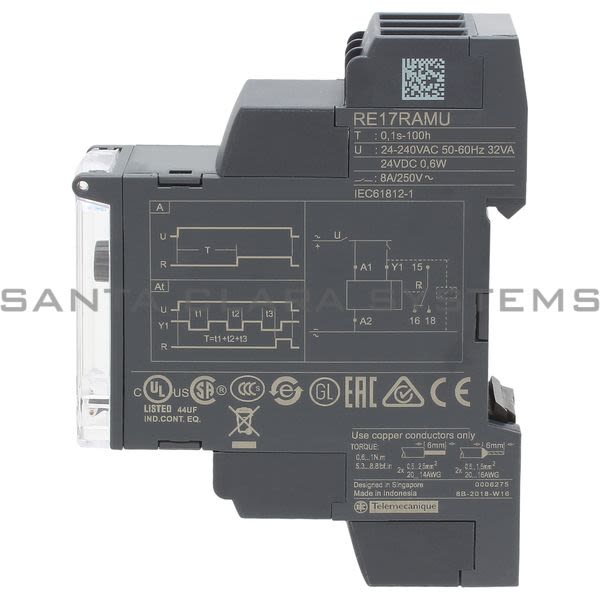

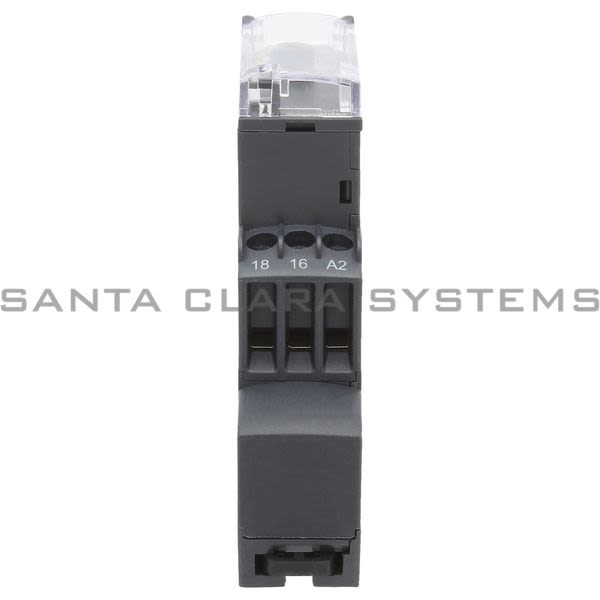

- Description: on-delay timing relay - 1 s..100 h - 24..240 V AC - 1 OC
- Product weight: 0.15 lb(US) (0.07 kg)
- Range of product: Zelio Time
- IP degree of protection: IP20 (terminal block) conforming to IEC 60529, IP40 (housing) conforming to IEC 60529, IP50 (front panel) conforming to IEC 60529
- Standards: EN 61000-6-1, EN 61000-6-2, 2006/95/EC, IEC 61812-1, 2004/108/EC, EN 61000-6-4, EN 61000-6-3
- Device short name: RE17R
- Width: 0.69 in (17.5 mm)
- [Uimp] rated impulse withstand voltage: 5 kV (1.2/50 s)
- Mechanical durability: 10000000 cycles
- Tightening torque: 5.31...8.85 lbf.in (0.6...1 N.m) conforming to IEC 60947-1
- Connections - terminals: Screw terminals, clamping capacity: 1 x 0.5...1 x 3.3 mm AWG 20...AWG 12 (solid) without cable end, Screw terminals, clamping capacity: 2 x 0.5...2 x 2.5 mm AWG 20...AWG 14 (solid) without cable end, Screw terminals, clamping capacity: 1 x 0.2...1 x 2.5 mm AWG 24...AWG 14 (flexible) with cable end, Screw terminals, clamping capacity: 2 x 0.2...2 x 1.5 mm AWG 24...AWG 16 (flexible) with cable end
- Mounting support: 35 mm DIN rail conforming to EN/IEC 60715
- Vibration resistance: 20 m/s (f = 10...150 Hz) conforming to IEC 60068-2-6
- Shock resistance: 15 gn (duration = 11 ms) conforming to IEC 60068-2-27
- Electrical durability: 100000 cycles resistive load (8 A at 250 V AC maximum)
- Insulation resistance: 100 MOhm at 500 V DC conforming to IEC 60664-1
- [Us] rated supply voltage: 24...240 V AC at 50/60 Hz, 24 V DC
- Relative humidity: 93 % without condensation conforming to IEC 60068-2-30
- Control type: Selector switch on front panel
- Breaking capacity: <= 2000 VA
- Mounting position: Any position in relation to normal vertical mounting plane
- Input voltage: 10 V
- Housing material: Self-extinguishing
- Contacts type and composition: 1 C/O
- Immunity to micro breaks: <= 20 ms
- Product or component type: Modular timing relay
- Contacts material: Cadmium free
- Discrete output type: Relay
- Product certifications: GL, CSA, cULus
- Ambient air temperature for storage: -22...140 F (-30...60 C)
- Voltage range: 0.85...1.1 Us
- Ambient air temperature for operation: -4...140 F (-20...60 C)
- Time delay type: At, A
- Supply frequency: 50...60 Hz (+/- 5 %)
- Time delay range: 6...60 s, 10...100 h, 6...60 min, 0.1...1 s, 1...10 h, 1...10 s, 1...10 min
- Nominal output current: 8:00 AM
- Electromagnetic compatibility: Electrostatic discharge immunity test, in contact at 6 kV conforming to IEC 61000-4-2 level 3, Electrostatic discharge immunity test, in air at 8 kV conforming to IEC 61000-4-2 level 3, Susceptibility to electromagnetic fields, 80 MHz to 1 GHz at 10 V/m conforming to IEC 61000-4-3 level 3, Electrical fast transient/burst immunity test, capacitive connecting clip at 1 kV conforming to IEC 61000-4-4 level 3, Electrical fast transient/burst immunity test, direct at 2 kV conforming to IEC 61000-4-4 level 3, 1.2/50 s shock waves immunity test, differential mode at 1 kV conforming to IEC 61000-4-5 level 3, 1.2/50 s shock waves immunity test, common mode at 2 kV conforming to IEC 61000-4-5 level 3, Conducted RF disturbances, 0.15...80 MHz at 10 V conforming to IEC 61000-4-6 level 3, Voltage dips and interruptions immunity test, 1 cycle at 0 % conforming to IEC 61000-4-11, Voltage dips and interruptions immunity test, 25/30 cycles at 70 % conforming to IEC 61000-4-11, Conducted and radiated emissions conforming to EN 55022 class B
- Repeat accuracy: +/- 0.5 % conforming to IEC 61812-1
- Temperature drift: +/- 0.05 %/C
- Voltage drift: +/- 0.2 %/V
- Setting accuracy of time delay: +/- 10 % of full scale at 25 C conforming to IEC 61812-1
- Impulse duration: 100 ms with load in parallel typical, 30 ms typical
- Reset time: 120 ms on de-energisation typical
- On-load factor: 100%
- power consumption in VA: 0...32 VA at 240 V AC
- power consumption in W: <= 0.6 W at 24 V DC
- Minimum switching current: 10 mA at 5 V DC
- Maximum switching current: 8 A AC/DC
- Maximum switching voltage: 250 V AC
- operating rate in Hz: 10 Hz
- Dielectric strength: 2.5 kV 1 mA/1 minute 50 Hz conforming to IEC 61812-1
- Delay response: < 100 ms
- Marking: CE
- Creepage distance: 4 kV/3 conforming to IEC 60664-1
- Safety reliability data: MTTFd = 296.8 years, B10d = 270000
- Local signaling: LED indicator on steady: relay energized, no timing in progress, LED indicator flashing: timing in progress (80 % ON and 20 % OFF), LED indicator pulsing: relay de-energized, no timing in progress (except function Di-D, Li-L) (5 % ON and 95 % OFF)
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on RE17RAMU . Santa Clara Systems carries 10,327 items from Telemecanique.
- On-Delay Timing Relay - 1 S..100 H - 24..240 V Ac - 1 Oc
