Out of Stock

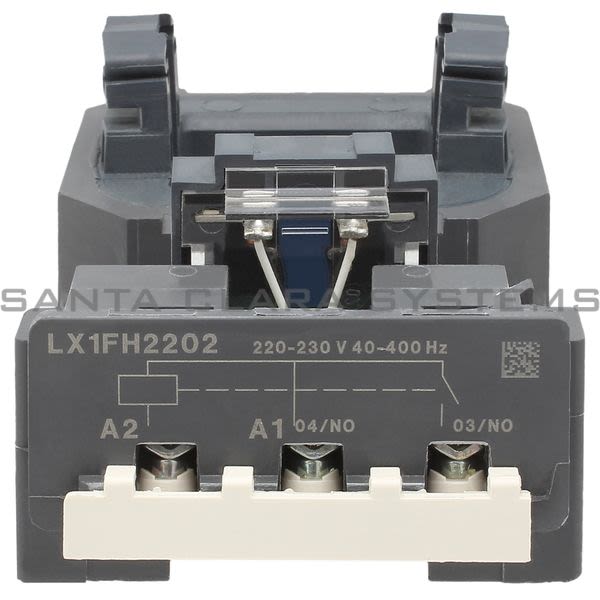

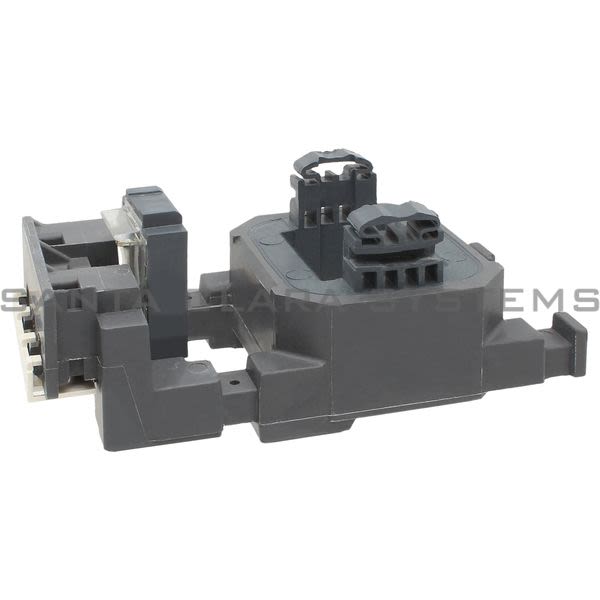

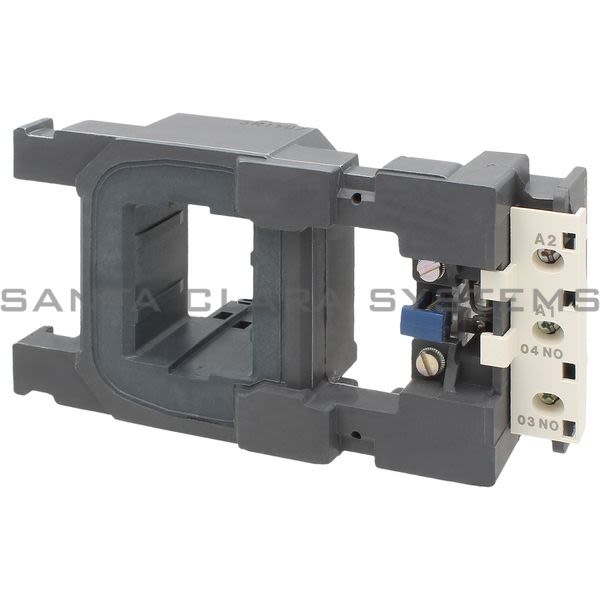

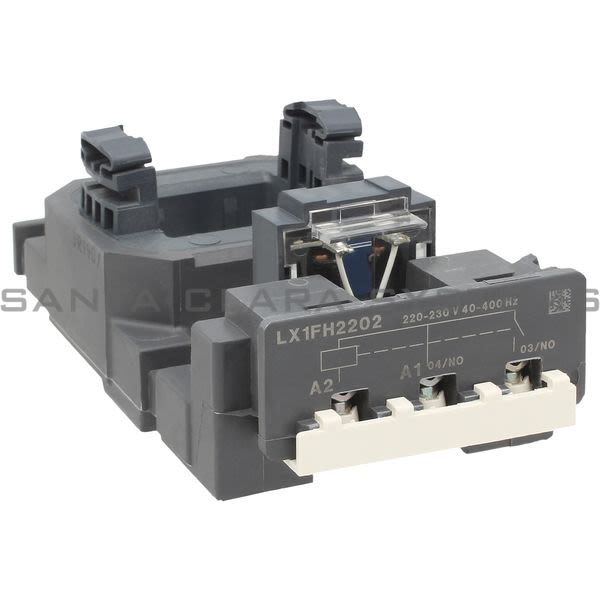

Telemecanique LX1FH2202 TeSys F - contactor coil - LX1FH - 220...230 V AC 40...400 Hz Product Image

LX1FH2202

Telemecanique - TeSys F - contactor coil - LX1FH - 220...230 V AC 40...400 Hz

Current response time:

By 5AM PT on Monday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: TeSys F - contactor coil - LX1FH - 220...230 V AC 40...400 Hz
Product weight: 1.65 lb(US) (0.75 kg)
Device short name: LX1FH
Mechanical durability: 10 Mcycles
Range: TeSys
Operating rate: <= 2400 cyc/h at <= 55 °C
[Uc] control circuit voltage: 220...230 V AC 40...400 Hz
Control circuit voltage limits: 0.85...1.1 Uc at 131 °F (55 °C) operational 40...400 Hz0.35...0.55 Uc at 131 °F (55 °C) drop-out 40...400 Hz
Operating time: 100...170 ms opening40...65 ms closing
Control circuit type: AC 40...400 Hz

Coil technology: Without built-in suppressor module
Ambient air temperature for operation: > 23...131 °F (> -5...55 °C)
Product or component type: Contactor coil
inrush power in VA: 650 VA at 68 °F (20 °C) (cos ? 0.9) 40...400 Hz
Range compatibility: TeSys F LC1F contactor
hold-in power consumption in VA: 10 VA at 68 °F (20 °C) (cos ? 0.3) 40...400 Hz
Product compatibility: LC1F330LC1F265
Heat dissipation: 8 W at 40...400 Hz
Average resistance: 70.6 Ohm inrush at 68 °F (20 °C)1578 Ohm holding at 68 °F (20 °C)

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on LX1FH2202 . Santa Clara Systems carries 10,431 items from Telemecanique.
