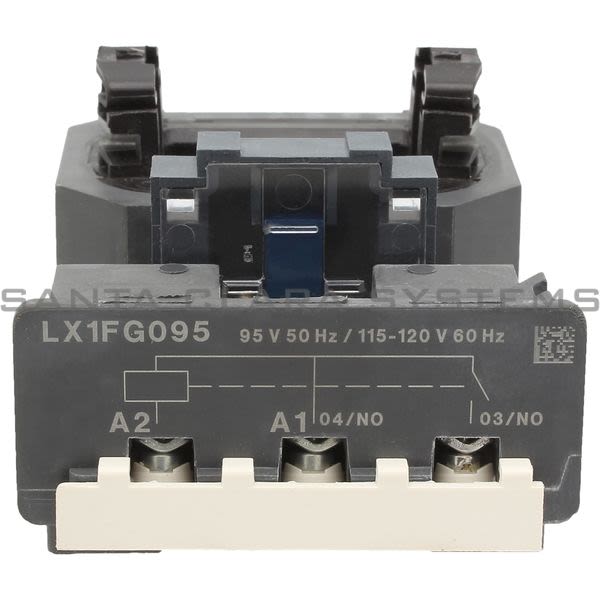

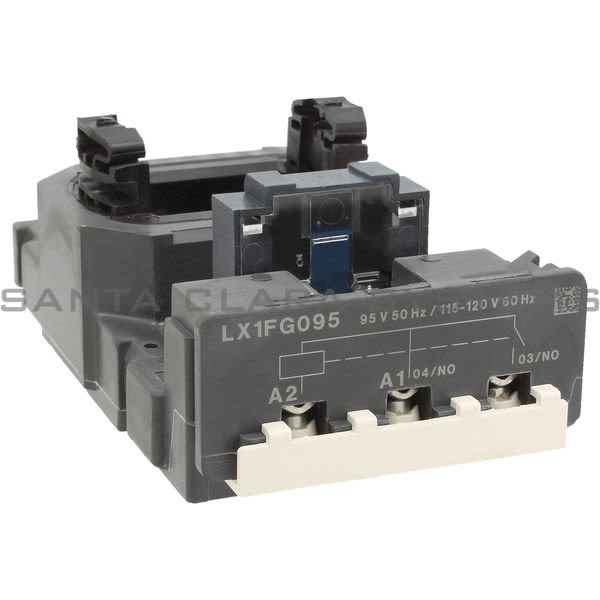

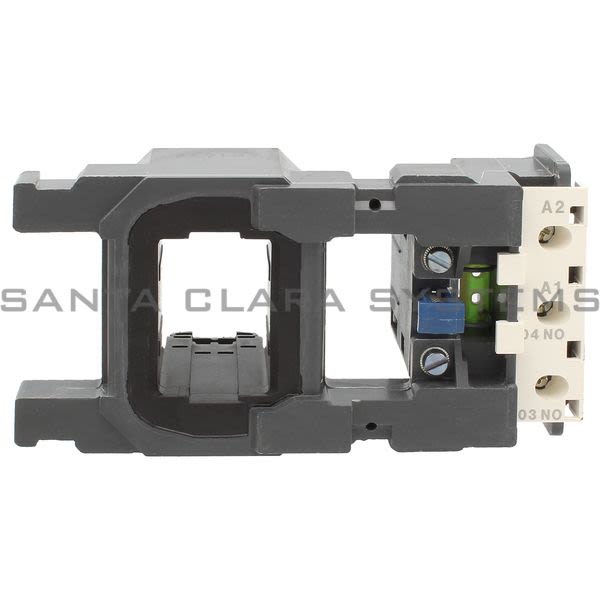

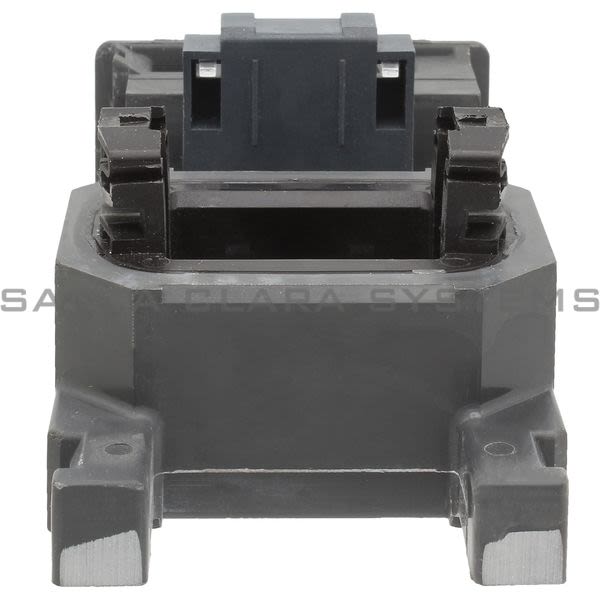

Telemecanique LX1FG095 TeSys F - contactor coil - LX1FG - 115...120 V AC 60 Hz Product Image

LX1FG095

Telemecanique - TeSys F - contactor coil - LX1FG - 115...120 V AC 60 Hz

Current response time:

By 5AM PT on Monday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: TeSys F - contactor coil - LX1FG - 115...120 V AC 60 Hz
Product weight: 1.21 lb(US) (0.55 kg)
Device short name: LX1FG
Mechanical durability: 10 Mcycles
Range: TeSys
Operating rate: <= 2400 cyc/h at <= 55 C
[Uc] control circuit voltage: 115...120 V AC 60 Hz
Control circuit voltage limits: 0.35...0.55 Uc at 131 F (55 C) drop-out 50/60 Hz, 0.85...1.1 Uc at 131 F (55 C) operational 50/60 Hz
Operating time: 20...35 ms closing, 7...15 ms opening
Control circuit type: AC 60 Hz

Coil technology: Without built-in suppressor module
Ambient air temperature for operation: > 23...131 F (> -5...55 C)
Product or component type: Contactor coil
inrush power in VA: 970 VA at 68 F (20 C) (cos ? 0.3) 60 Hz
Range compatibility: TeSys F LC1F contactor
hold-in power consumption in VA: 66 VA at 68 F (20 C) (cos ? 0.3) 60 Hz
Product compatibility: LC1F225, LC1F185
Heat dissipation: 18...24 W at 60 Hz
Average resistance: 2.87 Ohm at 68 F (20 C)
Inductance of closed circuit: 0.49 H

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on LX1FG095 . Santa Clara Systems carries 10,417 items from Telemecanique.
