LTMR100EFM

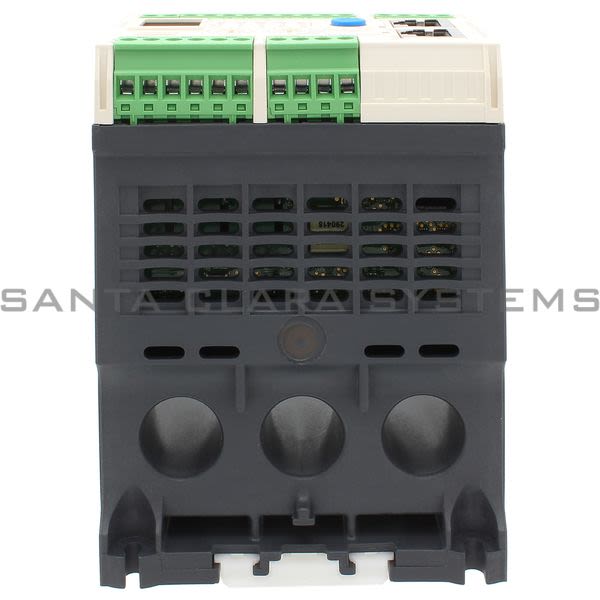

Telemecanique - motor controller LTMR TeSys T - 100..240 V AC 100 A for Ethernet TCP/IP

Current response time:

By 5AM PT on Monday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: motor controller LTMR TeSys T - 100..240 V AC 100 A for Ethernet TCP/IP
Product weight: 1.17 lb(US) (0.53 kg)
IP degree of protection: IP20
Standards: IEC 60947-4-1IACS E10CSA C22.2 No 14UL 508EN 60947-4-1
Device short name: LTMR
Width: 3.58 in (91 mm)
Height: 2.4 in (61 mm)
Depth: 4.82 in (122.5 mm)
Protective treatment: 12 x 24 hour cycles conforming to EN/IEC 60068-2-3048 h conforming to EN/IEC 60070-2-11TH conforming to EN/IEC 60068
[Ui] rated insulation voltage: 690 V conforming to CSA C22.2 No 14690 V conforming to EN/IEC 60947-1690 V conforming to UL 508
[Uimp] rated impulse withstand voltage: 4 kV supply, inputs and outputs conforming to EN/IEC 60947-4-16 kV current or voltage measurement circuit conforming to EN/IEC 60947-4-10.8 kV communication circuit conforming to EN/IEC 60947-4-1
Operating altitude: <= 6561.68 ft. (2000 m) without derating
Tightening torque: 4.42...5.31 lbf.in (0.5...0.6 N.m), 0.12 in (3 mm) flat screwdriver control circuit
Connections - terminals: Connector, 1 flexible cable with cable end 0...0 in² (0.25...2.5 mm²) /AWG 24...AWG 14 control circuitConnector, 1 flexible cable without cable end 0...0 in² (0.2...2.5 mm²) /AWG 24...AWG 14 control circuitConnector, 1 flexible cable without cable end 0...0 in² (0.25...2.5 mm²) /AWG 24...AWG 14 control circuitConnector, 1 solid cable without cable end 0...0 in² (0.2...2.5 mm²) /AWG 24...AWG 14 control circuitConnector, 2 flexible cable with cable end 0...0 in² (0.2...1 mm²) /AWG 24...AWG 14 control circuitConnector, 2 flexible cable without cable end 0...0 in² (0.2...1.5 mm²) /AWG 24...AWG 14 control circuitConnector, 2 flexible cable without cable end 0...0 in² (0.5...1.5 mm²) /AWG 24...AWG 14 control circuitConnector, 2 solid cable without cable end 0...0 in² (0.2...1 mm²) /AWG 24...AWG 14 control circuit
Range: TeSys
Operating rate: 1800 cyc/h
Product name: TeSys T
[Us] rated supply voltage: 100...240 V AC 50/60 Hz
Overvoltage category: III
Associated fuse rating: 0.5 A gG control circuit4 A gG output
Protection type: Phase failureLocked rotorReverse polarity protectionOverloadThermal protectionLoad fluctuationThermal overload protectionEarth-leakage protectionPower factor variationOverload (long time)Phase unbalance
Product certifications: RINAC-TickGLULEACKERIBVRMRoSABSCSADNVATEXNOMLROS (Lloyds register of shipping)CCC
Short-circuit withstand: 100 kA conforming to EN/IEC 60947-4-1
Product or component type: Motor controller
Fire resistance: 1202 °F (650 °C) conforming to EN/IEC 60695-2-121760 °F (960 °C) conforming to UL 94

Device application: Equipment monitoring and control
Ambient air temperature for operation: -4...140 °F (-20...60 °C)
Measurement current: 5...100 A
Network and machine diagnosis type: Event recordingWaiting time after overload trippingMotor control command recordingPhase fault and earth fault trip countersRunning hours counter/operating timeFault recordingStarting current and timeTrip context informationTrip history informationRemaining operating time before overload tripping
Ambient air temperature for storage: -40...176 °F (-40...80 °C)
Logic input number: 6
Current consumption: 8...62.8 mA
Input current: 3.1 mA at 100 V7.5 mA at 240 V
Mechanical robustness: shocks half sine wave acceleration (15 Gn for 11 ms) conforming to EN/IEC 60068-2-27? vibrations mounted on symmetrical rail (1 Gn, 5...300 Hz) conforming to EN/IEC 60068-2-6? vibrations plate mounted (4 Gn, 5...300 Hz) conforming to EN/IEC 60068-2-6
Supply voltage limits: 93.5...264 V AC
Input/output type: Logic input : 0...40 V and <= 15 mA 25 ms (at state 0)Logic input : 79...264 V and >= 2 mA 25 ms (at state 1)
Communication port protocol: Modbus TCP/Ethernet/IP
Maximum operating frequency: 2 Hz
Bus type: Ethernet IEEE 802.3 interface, addressing 0...159, transmission rate 10...100 Mbit/s, RJ45 with 2 shielded twisted pairs
Load current: 5 A at 250 V AC logic output5 A at 30 V DC logic output
Permissible power: 480 VA (AC-15), Ie = 2 A, 500000 cycles (output)30 W (DC-13), Ie = 1.25 A, 500000 cycles (output)
Contacts type and composition: 1 NO + 1 NC fault signal3 NO
Metering type: Imbalance currentPhase current I1, I2, I3 RMSAverage current IavgTemperatureEarth-fault current
Measurement accuracy: 3 % power factor (cos ? > 0.6)+/- 30 min/year internal clock0,02 current0,02 temperature5...15 % earth fault current internal measurement (for current > 0.3 A)1 % voltage (100...830 V)5 % active and reactive power5 % earth fault current external measurement (< 5 % or 0.01 A)
Connection pitch: 0.2 in (5.08 mm)
Pollution degree: 3
Electromagnetic compatibility: electrostatic discharge 3 (8 kV air, 6 kV contact), conforming to EN/IEC 61000-4-2? fast transients immunity test other circuits level 3 (2 kV), conforming to EN/IEC 61000-4-4? fast transients immunity test on supply and relay outputs level 4 (4 kV), conforming to EN/IEC 61000-4-4? conducted RF disturbances (10 V), conforming to EN/IEC 61000-4-6? surges serial mode (1 kV) control circuit, conforming to EN/IEC 61000-4-5? surges common mode (2 kV) communication, conforming to EN/IEC 61000-4-5? surges common mode (2 kV) control circuit, conforming to EN/IEC 61000-4-5? radiated RF fields 3 (10 V/m), conforming to EN/IEC 61000-4-3? voltage dips and interruptions immunity test (70 %, 500 ms), conforming to EN/IEC 61000-4-11? surges serial mode (0.5 kV) temperature sensor, conforming to EN/IEC 61000-4-5? surges common mode (1 kV) temperature sensor, conforming to EN/IEC 61000-4-5? surges serial mode (2 kV) relay outputs and supply, conforming to EN/IEC 61000-4-5? surges common mode (4 kV) relay outputs and supply, conforming to EN/IEC 61000-4-5
Web services: Web server
Compatibility code: LTMR
