LP4K1201BW3

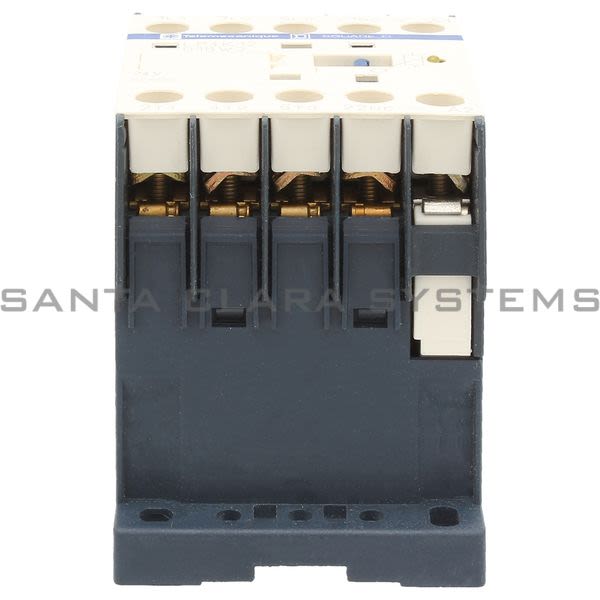

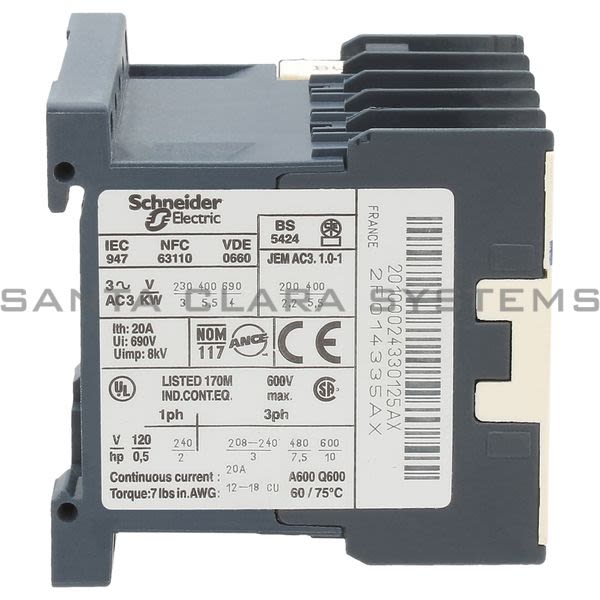

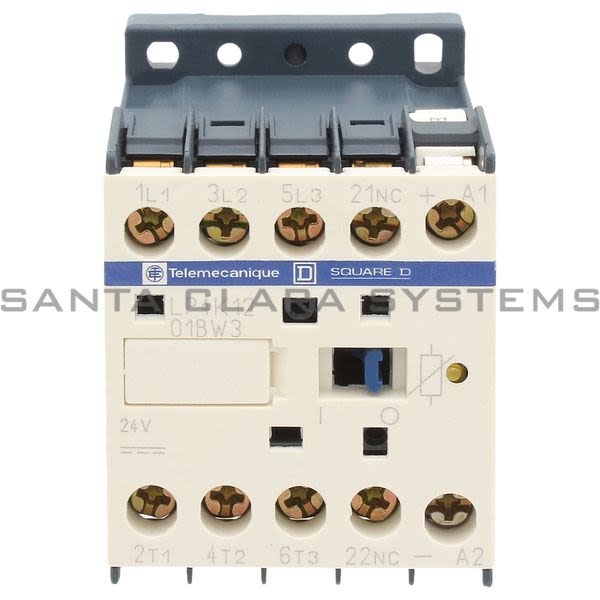

Telemecanique - TeSys K contactor - 3P - AC-3 <= 440 V 12 A - 1 NC aux. - 24 V DC coil

Current response time:

11 Minutes 13 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: TeSys K contactor - 3P - AC-3 <= 440 V 12 A - 1 NC aux. - 24 V DC coil
Product weight: 0.52 lb(US) (0.235 kg)
Range of product: TeSys K
IP degree of protection: IP2x conforming to VDE 0106
Standards: BS 5424, IEC 60947, NF C 63-110, VDE 0660
Device short name: LP4K
Width: 1.77 in (45 mm)
Height: 2.28 in (58 mm)
Depth: 2.24 in (57 mm)
Protective treatment: TC conforming to IEC 60068, TC conforming to DIN 50016
[Ui] rated insulation voltage: 690 V signaling circuit conforming to IEC 60947-4-1, 690 V signaling circuit conforming to IEC 60947-5-1, 600 V signaling circuit conforming to UL 508, 600 V power circuit conforming to CSA C22.2 No 14, 600 V signaling circuit conforming to CSA C22.2 No 14, 690 V power circuit conforming to IEC 60947-4-1, 600 V power circuit conforming to UL 508
[Uimp] rated impulse withstand voltage: 8 kV
Operating altitude: 6561.68 ft. (2000 m) without derating in temperature
Mechanical durability: 30 Mcycles
Tightening torque: 11.5 lbf.in (1.3 N.m) - on screw clamp terminals - with screwdriver Philips No 2, 11.5 lbf.in (1.3 N.m) - on screw clamp terminals - with screwdriver flat 6 mm
Connections - terminals: Screw clamp terminals 1 cable(s) 0...0.01 in (1.5...4 mm) - cable stiffness: solid, Screw clamp terminals 1 cable(s) 0...0.01 in (0.75...4 mm) - cable stiffness: flexible - without cable end, Screw clamp terminals 1 cable(s) 0...0 in (0.34...2.5 mm) - cable stiffness: flexible - with cable end, Screw clamp terminals 2 cable(s) 0...0.01 in (1.5...4 mm) - cable stiffness: solid, Screw clamp terminals 2 cable(s) 0...0.01 in (0.75...4 mm) - cable stiffness: flexible - without cable end, Screw clamp terminals 2 cable(s) 0...0 in (0.34...1.5 mm) - cable stiffness: flexible - with cable end
Range: TeSys
Mounting support: Plate, Rail
[Ith] conventional free air thermal current: 20 A at <= 122 F (50 C) power circuit, 10 A at <= 122 F (50 C) signaling circuit
System Voltage: 690 V AC 50/60 Hz power circuit, <= 690 V AC 50/60 Hz signaling circuit
Operating rate: 3600 cyc/h
Product name: TeSys K
[Uc] control circuit voltage: 24 V DC
Electrical durability: 0.3 Mcycles 20 A AC-1 at Ue <= 440 V, 1.3 Mcycles 12 A AC-3 at Ue <= 440 V
Insulation resistance: > 10 MOhm signaling circuit
motor power kW: 3 kW at 220...230 V AC 50/60 Hz AC-3, 2.2 kW at 400 V AC 50/60 Hz AC-4, 5.5 kW at 440 V AC 50/60 Hz AC-3, 5.5 kW at 380...415 V AC 50/60 Hz AC-3, 4 kW at 480 V AC 50/60 Hz AC-3, 4 kW at 500...600 V AC 50/60 Hz AC-3, 4 kW at 660...690 V AC 50/60 Hz AC-3
[Ie] rated operational current: 20 A (<= 122 F (50 C)) at <= 440 V AC AC-1 power circuit, 16 A (<= 158 F (70 C)) at 690 V AC AC-1 power circuit, 12 A at <= 440 V AC AC-3 power circuit
Utilization category: AC-1, AC-4, AC-3
Control circuit voltage limits: 0.7...1.30 Uc at <= 122 F (50 C) operational, 0.1...0.7 Uc at <= 122 F (50 C) drop-out

Poles description: 3P
Overvoltage category: III
Operating time: 10...20 ms coil de-energisation and NO opening, 30...40 ms coil energisation and NO closing
Associated fuse rating: 25 A gG at <= 440 V power circuit, 25 A aM power circuit, 10 A gG signaling circuit conforming to IEC 60947, 10 A gG signaling circuit conforming to VDE 0660
Control circuit type: DC low consumption
Product certifications: CSA, UL
Product or component type: Contactor
Pole contact composition: 3 NO
Ambient air temperature for operation: -13...122 F (-25...50 C)
Device application: Control
Ambient air temperature for storage: -58...176 F (-50...80 C)
Contactor application: Motor control, Resistive load
Flame retardance: V1 conforming to UL 94, Requirement 2 conforming to NF F 16-101, Requirement 2 conforming to NF F 16-102
Auxiliary contact composition: 1 NC
Irms rated making capacity: 110 A AC signaling circuit conforming to IEC 60947, 144 A AC power circuit conforming to NF C 63-110, 144 A AC power circuit conforming to IEC 60947
Rated breaking capacity: 110 A at 440 V conforming to IEC 60947, 80 A at 500 V conforming to IEC 60947, 70 A at 660...690 V conforming to IEC 60947
[Icw] rated short-time withstand current: 25 A <= 50 C >= 15 min power circuit, 80 A 1 s signaling circuit, 90 A 500 ms signaling circuit, 110 A 100 ms signaling circuit, 115 A <= 122 F (50 C) 1 s power circuit, 105 A <= 122 F (50 C) 5 s power circuit, 100 A <= 122 F (50 C) 10 s power circuit, 75 A <= 122 F (50 C) 30 s power circuit, 55 A <= 122 F (50 C) 1 min power circuit, 50 A <= 122 F (50 C) 3 min power circuit
Average impedance: 3 mOhm at 50 Hz - Ith 20 A power circuit
inrush power in W: 1.8 W at 68 F (20 C)
hold-in power consumption in W: 1.8 W at 68 F (20 C)
Heat dissipation: 1.8 W
Coil technology: Built-in bidirectional peak limiting diode suppressor
Auxiliary contacts type: Type instantaneous (1 NC)
Minimum switching current: 5 mA signaling circuit
Minimum switching voltage: 17 V signaling circuit
Safety reliability level: B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1, B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
Non overlap distance: 0.02 in (0.5 mm)
Mechanical robustness: Shocks contactor closed, on Z axis 15 Gn for 11 ms IEC 60068-2-27, Shocks contactor opened, on Z axis 10 Gn for 11 ms IEC 60068-2-27, Vibrations contactor closed 4 Gn, 5...300 Hz IEC 60068-2-6, Vibrations contactor opened 2 Gn, 5...300 Hz IEC 60068-2-6, Shocks contactor opened, on X axis 10 Gn for 11 ms IEC 60068-2-27, Shocks contactor opened, on Y axis 6 Gn for 11 ms IEC 60068-2-27, Shocks contactor closed, on X axis 15 Gn for 11 ms IEC 60068-2-27, Shocks contactor closed, on Y axis 10 Gn for 11 ms IEC 60068-2-27
