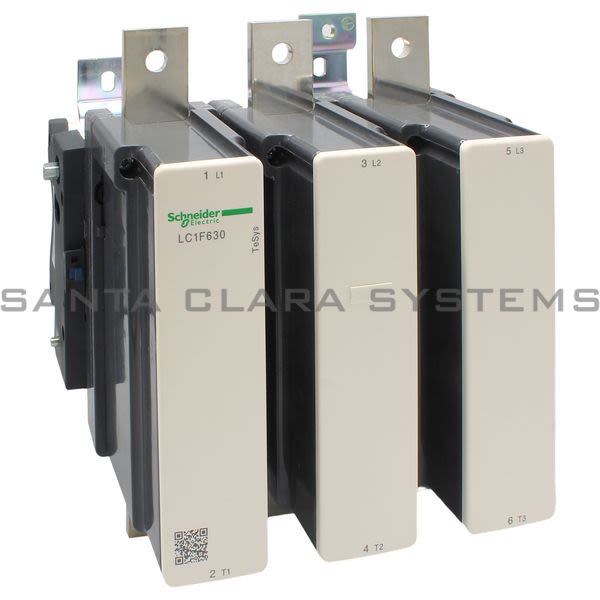

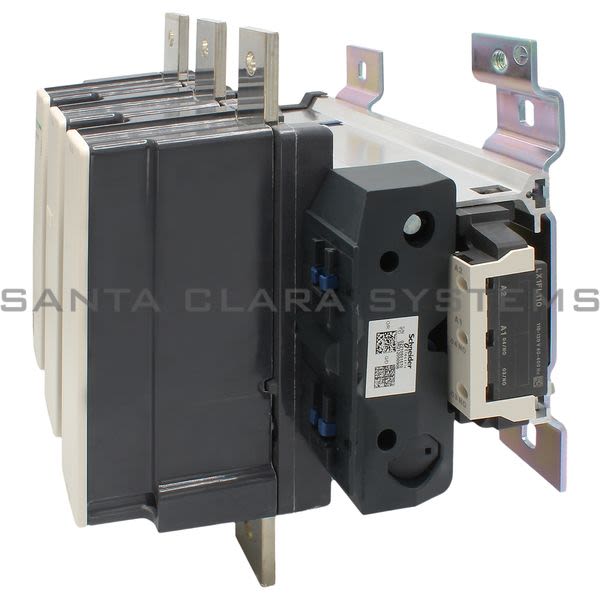

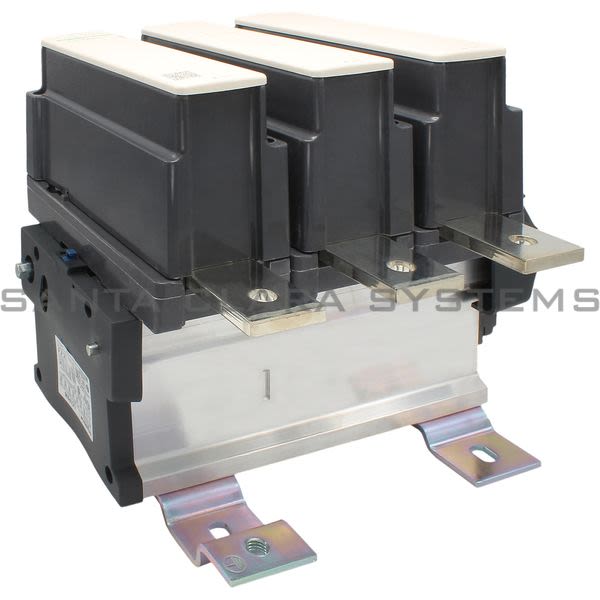

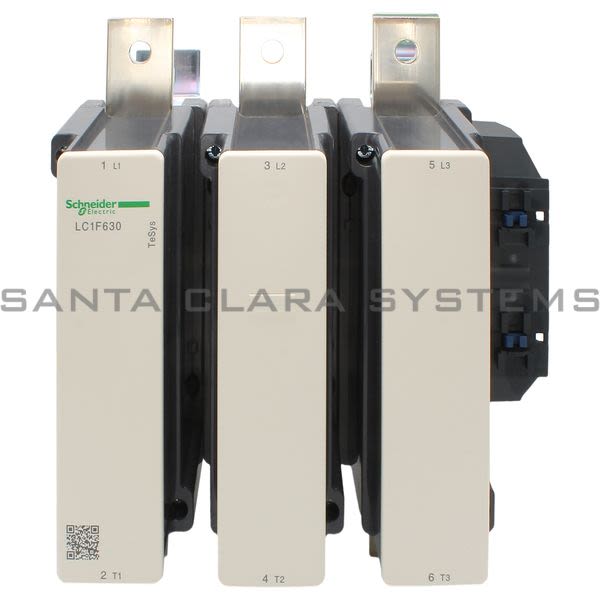

LC1F630F7

Telemecanique - TeSys F contactor - 3P (3 NO) - AC-3 - <= 440 V 630 A - coil 110 V AC

Current response time:

By 5AM PT on Monday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: TeSys F contactor - 3P (3 NO) - AC-3 - <= 440 V 630 A - coil 110 V AC
Product weight: 41.01 lb(US) (18.6 kg)
IP degree of protection: IP20 front face with shrouds (ordered separately) conforming to IEC 60529, IP20 front face with shrouds (ordered separately) conforming to VDE 0106
Standards: EN 60947-1, EN 60947-4-1, JIS C8201-4-1, IEC 60947-1, IEC 60947-4-1
Device short name: LC1F
Width: 12.17 in (309 mm)
Height: 10.04 in (255 mm)
Depth: 11.97 in (304 mm)
Protective treatment: TH
[Ui] rated insulation voltage: 1000 V conforming to IEC 60947-4-1, 1500 V conforming to VDE 0110 group C
[Uimp] rated impulse withstand voltage: 8 kV
Operating altitude: 9842.52 ft. (3000 m) without derating in temperature
Mechanical durability: 5 Mcycles
Tightening torque: Control circuit: 10.62 lbf.in (1.2 N.m), Power circuit: 513.27 lbf.in (58 N.m)
Connections - terminals: Control circuit: screw clamp terminals 2 cable(s) 0...0 in (1...2.5 mm) - cable stiffness: flexible - with cable end, Control circuit: screw clamp terminals 1 cable(s) 0...0.01 in (1...4 mm) - cable stiffness: flexible - without cable end, Control circuit: screw clamp terminals 2 cable(s) 0...0.01 in (1...4 mm) - cable stiffness: flexible - without cable end, Control circuit: screw clamp terminals 1 cable(s) 0...0.01 in (1...4 mm) - cable stiffness: flexible - with cable end, Control circuit: screw clamp terminals 1 cable(s) 0...0.01 in (1...4 mm) - cable stiffness: solid - without cable end, Control circuit: screw clamp terminals 2 cable(s) 0...0.01 in (1...4 mm) - cable stiffness: solid - without cable end, Power circuit : bolted connection, Power circuit : bar 2 x (60 x 5 mm)
Range: TeSys
Mounting support: Plate
[Ith] conventional free air thermal current: 1000 A at <= 104 F (40 C), 1250 A
System Voltage: <= 1000 V AC 50/60 Hz, <= 460 V DC
Operating rate: 1200 cyc/h at <= 131 F (55 C)
Product name: TeSys F
[Uc] control circuit voltage: 110 V AC 40...400 Hz
motor power kW: 335 kW at 380...400 V AC 50/60 Hz AC-3, 375 kW at 415 V AC 50/60 Hz AC-3, 400 kW at 440 V AC 50/60 Hz AC-3, 400 kW at 500 V AC 50/60 Hz AC-3, 450 kW at 1000 V AC 50/60 Hz AC-3, 200 kW at 220...230 V AC 50/60 Hz AC-3, 100 kW at 400 V AC 50/60 Hz AC-4, 450 kW at 660...690 V AC 50/60 Hz AC-3

[Ie] rated operational current: 1000 A (<= 104 F (40 C)) at <= 440 V AC AC-1, 630 A (<= 131 F (55 C)) at <= 440 V AC AC-3
Utilization category: AC-4, AC-3, AC-1
Control circuit voltage limits: 0.85...1.1 Uc at 131 F (55 C) operational 40...400 Hz, 0.25...0.5 Uc at 131 F (55 C) drop-out 40...400 Hz
Poles description: 3P
Overvoltage category: III
Operating time: 100...200 ms opening, 40...80 ms closing
Associated fuse rating: 630 A aM at <= 440 V, 1000 A gG at <= 440 V
Product or component type: Contactor
Ambient air temperature for operation: 23...131 F (-5...55 C)
Rated breaking capacity: 5040 A conforming to IEC 60947-4-1
Ambient air temperature for storage: -76...176 F (-60...80 C)
Contactor application: Motor control, Resistive load
[Icw] rated short-time withstand current: 5050 A <= 104 F (40 C) 10 s, 4400 A <= 104 F (40 C) 30 s, 3400 A <= 104 F (40 C) 1 min, 2200 A <= 104 F (40 C) 3 min, 1600 A <= 104 F (40 C) 10 min
Permissible ambient air temperature around the device: -40...158 F (-40...70 C)
Average impedance: 0.12 mOhm at 50 Hz - Ith 1000 A
Mechanical robustness: Shocks contactor open 9 Gn for 11 ms, Vibrations contactor open 2 Gn, 5...300 Hz, Vibrations contactor closed 4 Gn, 5...300 Hz, Shocks contactor closed 15 Gn for 11 ms
Pole contact composition: 3 NO
Power dissipation per pole: 120 W AC-1, 48 W AC-3
Product certifications: RINA, LROS (Lloyds register of shipping), ABS, CB, RMRoS, BV, DNV, CSA, UL
inrush power in VA: 1650 VA at 68 F (20 C) (cos ? 0.9) 40...400 Hz
hold-in power consumption in VA: 22 VA at 68 F (20 C) (cos ? 0.9) 40...400 Hz
Heat dissipation: 20 W
