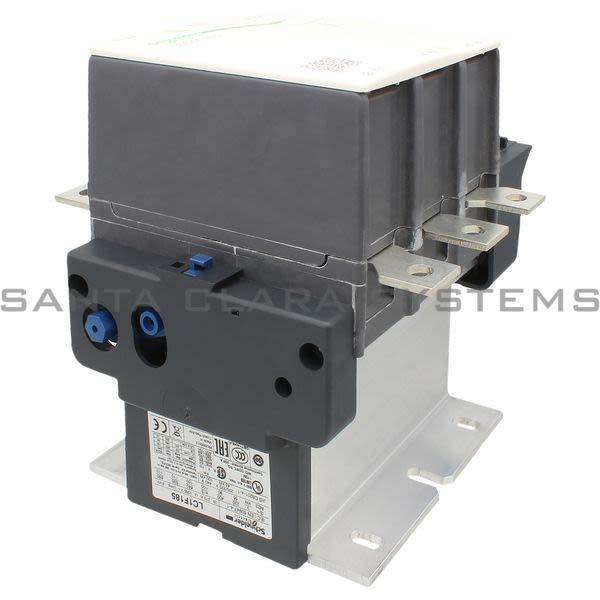

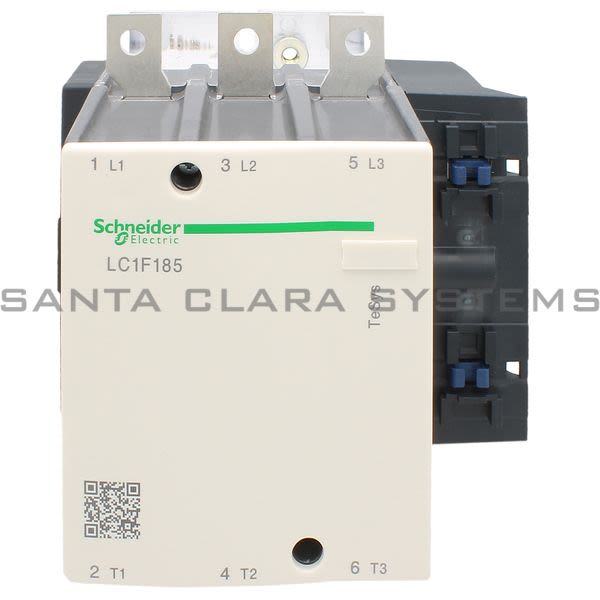

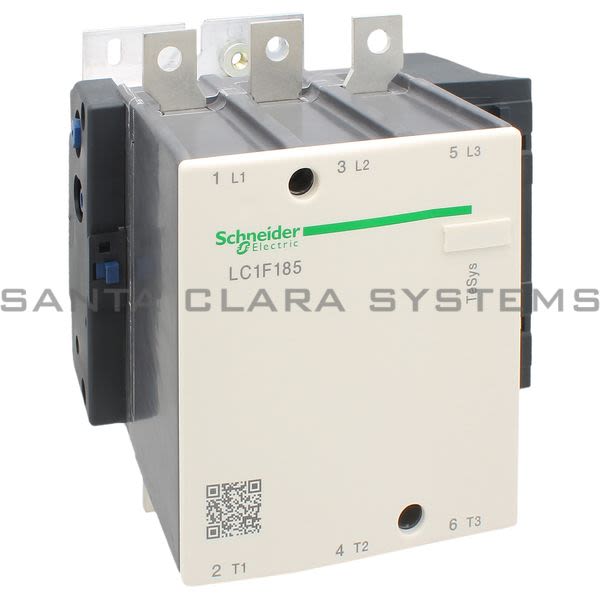

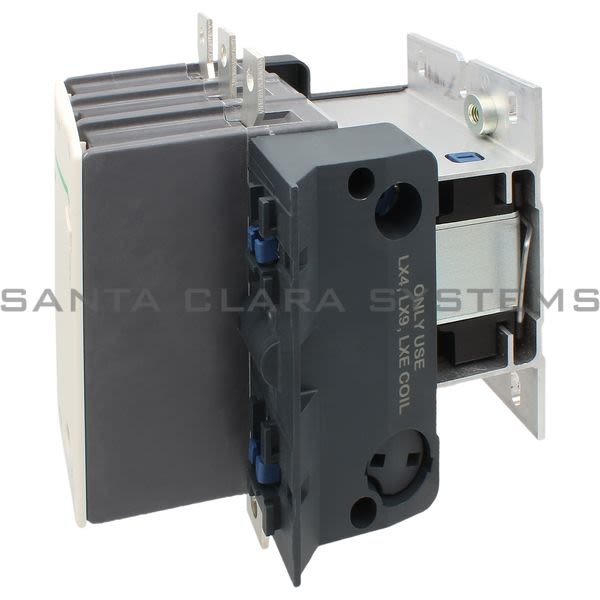

- Description: TeSys F contactor - 3P(3 NO) - AC-3 - <= 440 V 185 A - without coil
- Product weight: 12.02 lb(US) (5.45 kg)
- IP degree of protection: IP2x front face with shrouds (ordered separately) conforming to IEC 60529, IP2x front face with shrouds (ordered separately) conforming to VDE 0106
- Standards: EN 60947-1, IEC 60947-4-1, EN 60947-4-1, IEC 60947-1, JIS C8201-4-1
- Device short name: LC1F
- Width: 6.63 in (168.5 mm)
- Height: 6.85 in (174 mm)
- Depth: 7.13 in (181 mm)
- Protective treatment: TH
- [Ui] rated insulation voltage: 1000 V conforming to IEC 60947-4-1, 1500 V conforming to VDE 0110 group C
- [Uimp] rated impulse withstand voltage: 8 kV
- Operating altitude: 9842.52 ft. (3000 m) without derating in temperature
- Tightening torque: Power circuit: 159.29 lbf.in (18 N.m)
- Connections - terminals: Power circuit: connector 1 cable(s) 0.23 in (150 mm), Power circuit: lugs-ring terminals 1 cable(s) 0.23 in (150 mm), Power circuit: bar 2 x ( 25 x 3 mm), Power circuit : bolted connection
- Range: TeSys
- Mounting support: Plate
- [Ith] conventional free air thermal current: 275 A at <= 104 F (40 C)
- System Voltage: <= 1000 V AC 50/60 Hz, <= 460 V DC
- Product name: TeSys F
- motor power kW: 90 kW at 380...400 V AC 50/60 Hz AC-3, 100 kW at 415 V AC 50/60 Hz AC-3, 100 kW at 440 V AC 50/60 Hz AC-3, 110 kW at 500 V AC 50/60 Hz AC-3, 110 kW at 660?690 V AC 50/60 Hz AC-3, 100 kW at 1000 V AC 50/60 Hz AC-3, 33 kW at 400 V AC 50/60 Hz AC-4, 55 kW at 220...240 V AC 50/60 Hz AC-3
- [Ie] rated operational current: 275 A (<= 104 F (40 C)) at <= 440 V AC AC-1, 185 A (<= 131 F (55 C)) at <= 440 V AC AC-3
- Utilization category: AC-1, AC-3, AC-4
- Poles description: 3P
- Overvoltage category: III
- Associated fuse rating: 200 A aM at <= 440 V, 315 A gG at <= 440 V
- Product or component type: Contactor
- Ambient air temperature for operation: 23...131 F (-5...55 C)
- Irms rated making capacity: 1850 A AC conforming to IEC 60947-4-1
- Ambient air temperature for storage: -76...176 F (-60...80 C)
- Contactor application: Motor control, Resistive load
- Rated breaking capacity: 1480 A conforming to IEC 60947-4-1
- Permissible ambient air temperature around the device: -40...158 F (-40...70 C)
- [Icw] rated short-time withstand current: 1500 A <= 104 F (40 C) 10 s, 920 A <= 104 F (40 C) 30 s, 740 A <= 104 F (40 C) 1 min, 500 A <= 104 F (40 C) 3 min, 400 A <= 104 F (40 C) 10 min
- Mechanical robustness: Vibrations contactor closed 5 Gn, 5...300 Hz, Shocks contactor open 7 Gn for 11 ms, Vibrations contactor open 2 Gn, 5...300 Hz, Shocks contactor closed 15 Gn for 11 ms
- Pole contact composition: 3 NO
- Average impedance: 0.33 mOhm at 50 Hz - Ith 275 A
- Power dissipation per pole: 12 W AC-3, 25 W AC-1
- Product certifications: LROS (Lloyds register of shipping), RINA, BV, UL, DNV, CB, ABS, CSA, RMRoS
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on LC1F185 . Santa Clara Systems carries 10,417 items from Telemecanique.
- Tesys F Contactor - 3p(3 No) - Ac-3 - <= 440 V 185 A - Without Coil
