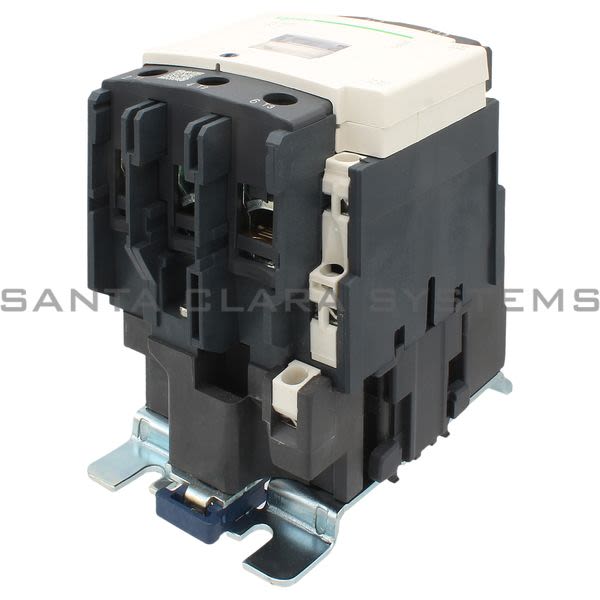

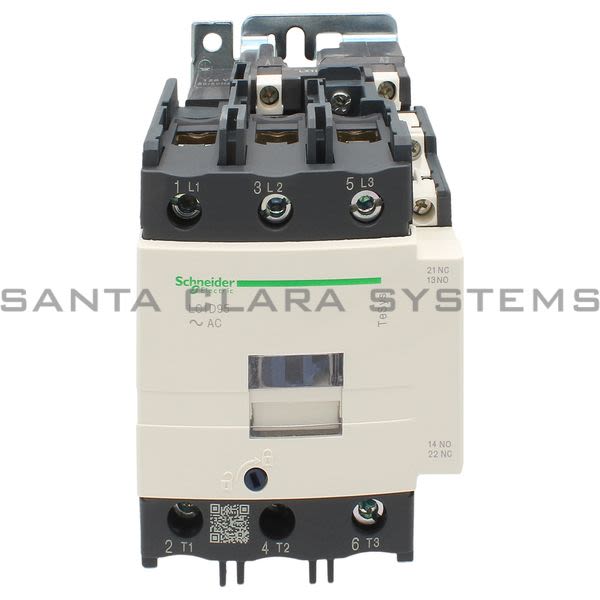

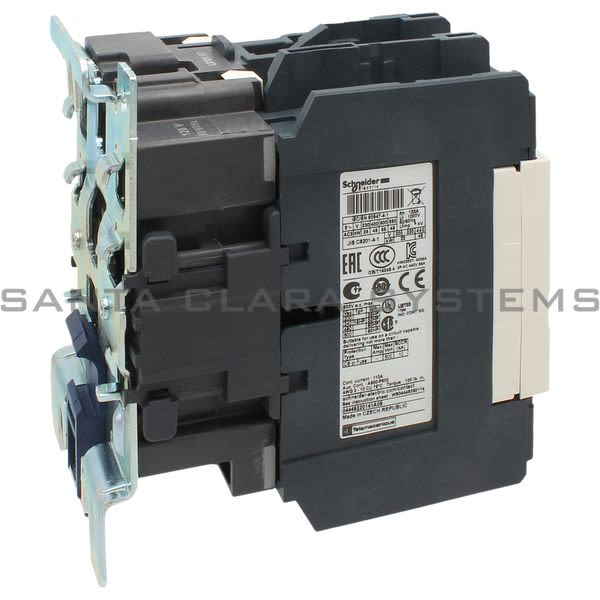

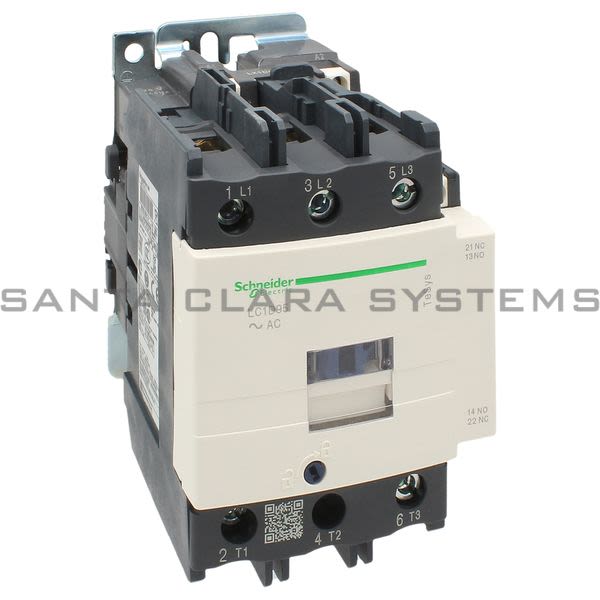

LC1D95G7

Telemecanique - TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 95 A - 120 V AC 50/60 Hz coil

Current response time:

8 Minutes 37 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 95 A - 120 V AC 50/60 Hz coil
Product weight: 3.55 lb(US) (1.61 kg)
Range of product: TeSys D
IP degree of protection: IP20 front face conforming to IEC 60529
Standards: CSA C22.2 No 14EN 60947-4-1EN 60947-5-1IEC 60947-4-1IEC 60947-5-1UL 508
Device short name: LC1D
Width: 3.35 in (85 mm)
Height: 5 in (127 mm)
Depth: 5.12 in (130 mm)
Protective treatment: TH conforming to IEC 60068-2-30
[Ui] rated insulation voltage: 1000 V power circuit conforming to IEC 60947-4-1600 V power circuit certifications CSA600 V power circuit certifications UL690 V signaling circuit conforming to IEC 60947-1600 V signaling circuit certifications CSA600 V signaling circuit certifications UL
[Uimp] rated impulse withstand voltage: Conforming to IEC 60947
Operating altitude: 9842.52 ft. (3000 m) without derating in temperature
Mechanical durability: 4 Mcycles
Tightening torque: Power circuit: 79.65 lbf.in (9 N.m) - on connector - with screwdriver flat Ø 6 to Ø 8 mmPower circuit: 79.65 lbf.in (9 N.m) - on connector hexagonal 0.16 in (4 mm)Control circuit: 10.62 lbf.in (1.2 N.m) - on screw clamp terminals - with screwdriver flat Ø 6 mmControl circuit: 10.62 lbf.in (1.2 N.m) - on screw clamp terminals - with screwdriver Philips No 2
Connections - terminals: Control circuit: screw clamp terminals 2 cable(s) 0...0 in² (1...2.5 mm²) - cable stiffness: flexible - with cable endControl circuit: screw clamp terminals 1 cable(s) 0...0.01 in² (1...4 mm²) - cable stiffness: flexible - without cable endControl circuit: screw clamp terminals 2 cable(s) 0...0.01 in² (1...4 mm²) - cable stiffness: flexible - without cable endControl circuit: screw clamp terminals 1 cable(s) 0...0.01 in² (1...4 mm²) - cable stiffness: solid - without cable endControl circuit: screw clamp terminals 2 cable(s) 0...0.01 in² (1...4 mm²) - cable stiffness: solid - without cable endControl circuit: screw clamp terminals 1 cable(s) 0...0 in² (1...2.5 mm²) - cable stiffness: flexible - with cable endPower circuit: connector 1 cable(s) 0.01...0.08 in² (4...50 mm²) - cable stiffness: flexible - without cable endPower circuit: connector 2 cable(s) 0.01...0.04 in² (4...25 mm²) - cable stiffness: flexible - without cable endPower circuit: connector 1 cable(s) 0.01...0.08 in² (4...50 mm²) - cable stiffness: flexible - with cable endPower circuit: connector 2 cable(s) 0.01...0.02 in² (4...16 mm²) - cable stiffness: flexible - with cable endPower circuit: connector 1 cable(s) 0.01...0.08 in² (4...50 mm²) - cable stiffness: solid - without cable endPower circuit: connector 2 cable(s) 0.01...0.04 in² (4...25 mm²) - cable stiffness: solid - without cable end
Range: TeSys
Mounting support: PlateRail
[Ith] conventional free air thermal current: 125 A at <= 140 °F (60 °C) power circuit10 A at <= 140 °F (60 °C) signaling circuit
System Voltage: <= 300 V DC 25...400 Hz power circuit<= 1000 V AC power circuit
Operating rate: 3600 cyc/h at <= 140 °F (60 °C)
Product name: TeSys D
[Uc] control circuit voltage: 120 V AC 50/60 Hz
Electrical durability: 1.2 Mcycles 95 A AC-3 at Ue <= 440 V1.3 Mcycles 125 A AC-1 at Ue <= 440 V
Insulation resistance: > 10 MOhm signaling circuit
motor power kW: 45 kW at 660...690 V AC 50/60 Hz AC-345 kW at 415...440 V AC 50/60 Hz AC-355 kW at 500 V AC 50/60 Hz AC-345 kW at 1000 V AC 50/60 Hz AC-315 kW at 400 V AC 50/60 Hz AC-425 kW at 220...230 V AC 50/60 Hz AC-345 kW at 380...400 V AC 50/60 Hz AC-3
[Ie] rated operational current: 125 A (<= 140 °F (60 °C)) at <= 440 V AC AC-1 power circuit95 A (<= 140 °F (60 °C)) at <= 440 V AC AC-3 power circuit
Utilization category: AC-1AC-3AC-4
Control circuit voltage limits: 0.85...1.1 Uc operational at 131 °F (55 °C), AC 60 Hz0.3...0.6 Uc drop-out at 131 °F (55 °C), AC 50/60 Hz0.8...1.1 Uc operational at 55 °C, AC 50 Hz
Poles description: 3P
Overvoltage category: III
Operating time: 20...35 ms closing6...20 ms opening

Associated fuse rating: 160 A gG at <= 690 V coordination type 2 power circuit200 A gG at <= 690 V coordination type 1 power circuit10 A gG signaling circuit conforming to IEC 60947-5-1
Control circuit type: AC 50/60 Hz
Coil technology: Without built-in suppressor module
inrush power in VA: 245 VA at 68 °F (20 °C) (cos ? 0.75) 60 Hz245 VA at 68 °F (20 °C) (cos ? 0.75) 50 Hz
Pollution degree: 3
Product or component type: Contactor
hold-in power consumption in VA: 26 VA at 68 °F (20 °C) (cos ? 0.3) 60 Hz26 VA at 68 °F (20 °C) (cos ? 0.3) 50 Hz
Ambient air temperature for operation: 23...140 °F (-5...60 °C)
Heat dissipation: 6...10 W at 50/60 Hz
Ambient air temperature for storage: -76...176 °F (-60...80 °C)
Contactor application: Resistive loadMotor control
Auxiliary contacts type: Type mechanically linked (1 NO + 1 NC) conforming to IEC 60947-5-1Type mirror contact (1 NC) conforming to IEC 60947-4-1
Permissible ambient air temperature around the device: -40...158 °F (-40...70 °C) at Uc
Signaling circuit frequency: 25...400 Hz
Minimum switching current: 5 mA signaling circuit
Fire resistance: 1562 °F (850 °C) conforming to IEC 60695-2-1
Pole contact composition: 3 NO
Minimum switching voltage: 17 V signaling circuit
Flame retardance: V1 conforming to UL 94
Non-overlap time: 1.5 ms on de-energisation (between NC and NO contact)1.5 ms on energisation (between NC and NO contact)
Mechanical robustness: Vibrations contactor open 2 Gn, 5...300 HzShocks contactor open 8 Gn for 11 msVibrations contactor closed 3 Gn, 5...300 HzShocks contactor closed 10 Gn for 11 ms
Motor power hp: 20 hp at 200/208 V AC 50/60 Hz 3 phases motors7.5 hp at 115 V AC 50/60 Hz 1 phase motors15 hp at 230/240 V AC 50/60 Hz 1 phase motors25 hp at 230/240 V AC 50/60 Hz 3 phases motors60 hp at 460/480 V AC 50/60 Hz 3 phases motors60 hp at 575/600 V AC 50/60 Hz 3 phases motors
Auxiliary contact composition: 1 NO + 1 NC
Irms rated making capacity: 1100 A at 440 V power circuit conforming to IEC 60947140 A AC signaling circuit conforming to IEC 60947-5-1250 A DC signaling circuit conforming to IEC 60947-5-1
Rated breaking capacity: 1100 A at 440 V power circuit conforming to IEC 60947
[Icw] rated short-time withstand current: 1100 A <= 104 °F (40 °C) 1 s power circuit135 A <= 104 °F (40 °C) 10 min power circuit400 A <= 104 °F (40 °C) 1 min power circuit800 A <= 104 °F (40 °C) 10 s power circuit100 A 1 s signaling circuit120 A 500 ms signaling circuit140 A 100 ms signaling circuit
Average impedance: 0.8 mOhm at 50 Hz - Ith 125 A power circuit
Power dissipation per pole: 7.2 W AC-312.5 W AC-1
Protective cover: With
Product certifications: GOSTDNVLROS (Lloyds register of shipping)BVCCCGLRINA
Safety reliability level: B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
