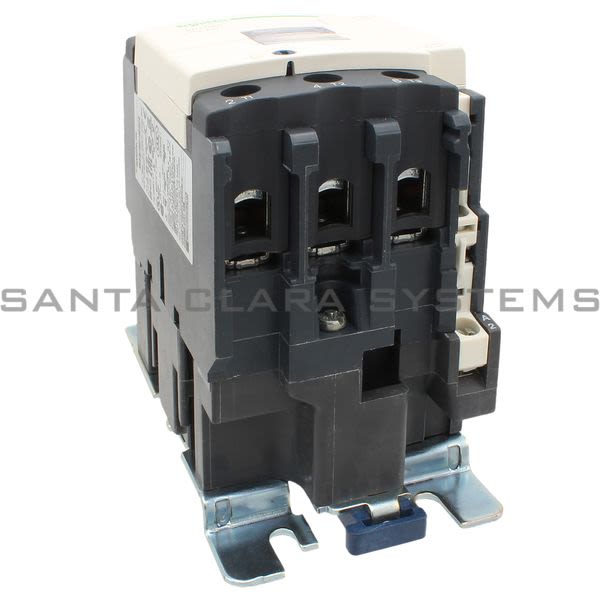

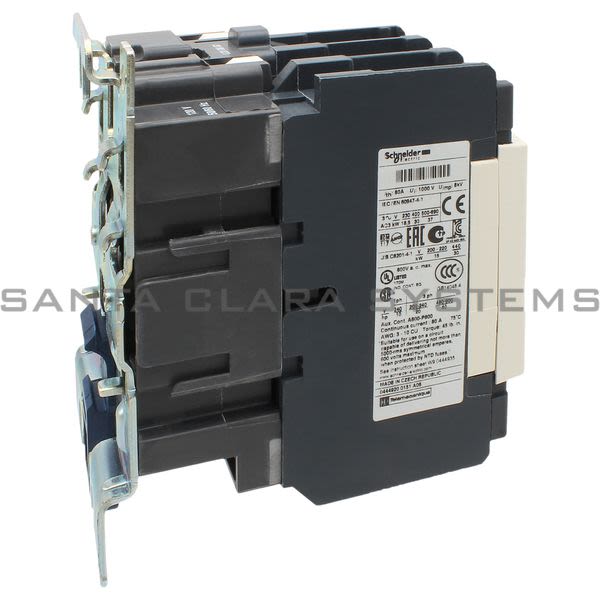

Telemecanique LC1 D65G7 Contactor Product Image

LC1D65G7

Telemecanique - Contactor

Current response time:

14 Minutes 12 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: Contactor
Range of product: TeSys D
IP degree of protection: IP2x conforming to IEC 60529
Standards: EN 60947-5-1
Device short name: LC1D
Width: 75 mm
Height: 127 mm
Depth: 119 mm
[Ui] rated insulation voltage: Control circuit: 600 V CSA certified
[Uimp] rated impulse withstand voltage: 8 kV conforming to IEC 60947
Operating altitude: 3000 m without
Mechanical durability: 6000000 cycles
Tightening torque: Control circuit: 1.2 N.m - on screw clamp terminal - with screwdriver flat 6 mm
Connections - terminals: Control circuit: screw clamp terminal 1 x 14 mmsolid without cable end
Range: TeSys
Mounting support: Rail
[Ith] conventional free air thermal current: 10 A (at 60 C) for control circuit
[Uc] control circuit voltage: 120 V AC 50/60 Hz
Shock resistance: 10 gn contactor opened
Vibration resistance: 2 gn 5300 Hz contactor opened
Insulation resistance: > 10 MOhm for control circuit
motor power kW: 30 kW at 440 V AC 50/60 Hz (AC-3)
[Ie] rated operational current: 80 A (at <60 C) at <= 440 V AC AC-1 for power circuit
Control circuit voltage limits: Drop-out: 0.3...0.6 Uc at 50/60 Hz (at <60 C)
Poles description: 3P
Overvoltage category: III
Operating time: 12...26 ms closing
Associated fuse rating: 10 A gG for control circuit conforming to IEC 60947-5-1
Control circuit type: AC at 50/60 Hz
Product or component type: Contactor

Contactor application: Motor control
Utilisation category: AC-1
Pole contact composition: 3 NO
Motor power hp: 10 hp at 230/240 V AC 60 Hz for 1P motors conforming to CSA
Coil technology: Without built-in bidirectional peak limiting diode suppressor
Protective cover: With
Auxiliary contacts type: type mirror contact 1 NC conforming to IEC 60947-4-1
Auxiliary contact composition: 1 NO + 1 NC
Flame retardance: V1 conforming to UL 94
[Ue] rated operational voltage: Power circuit: <= 690 V AC 25...400 Hz
Irms rated making capacity: 140 A AC for control circuit conforming to IEC 60947-5-1
Rated breaking capacity: 1000 A at 440 V for power circuit conforming to IEC 60947
Average impedance: - Ith 80 A 50 Hz for power circuit
Power dissipation per pole: 6.4 W AC-1
inrush power in VA: 140 VA cos phi 0.75 (at 20 C)
hold-in power consumption in VA: 13 VA 50 Hz cos phi 0.3 (at 20 C)
Safety reliability level: B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
Maximum operating rate: 3600 cyc/h 60 C
Minimum switching current: 5 mA for control circuit
Minimum switching voltage: 17 V for control circuit
Non-overlap time: 1.5 ms on de-energisation between NC and NO contacts
terminals description ISO n1: (A1-A2)CO
Ambient air temperature for operation: -560 C
Ambient air temperature for storage: -6080 C
Permissible ambient air temperature around the device: -4070 C at Uc
Fire resistance: 850 C conforming to IEC 60695-2-1
Heat dissipation: 45 W at 50/60 Hz for control circuit
Toxic heavy metal free: Yes
Circularity Profile: End of Life Information

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on LC1D65G7 . Santa Clara Systems carries 10,326 items from Telemecanique.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
