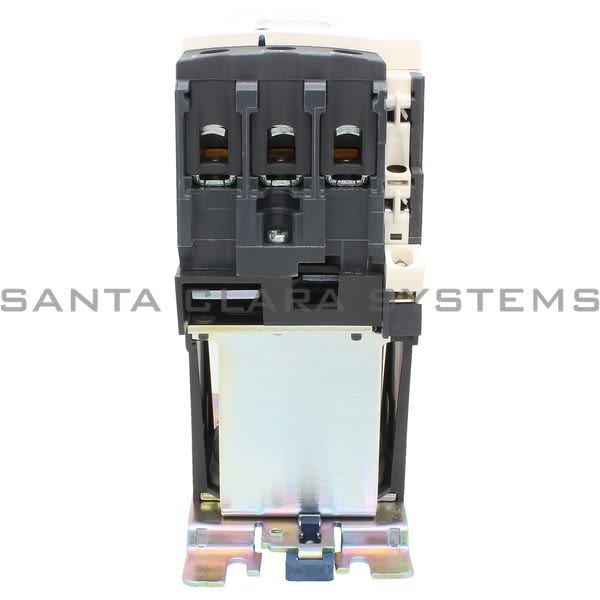

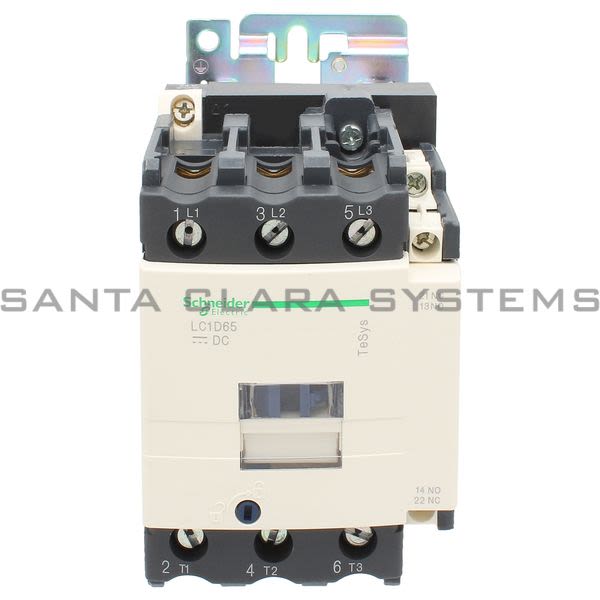

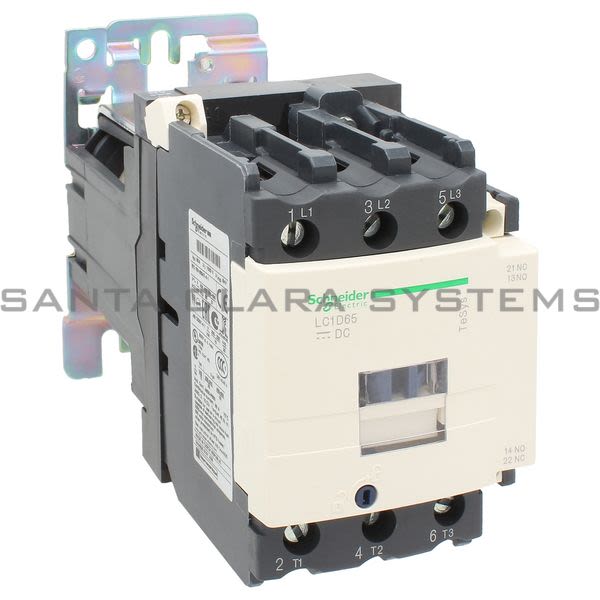

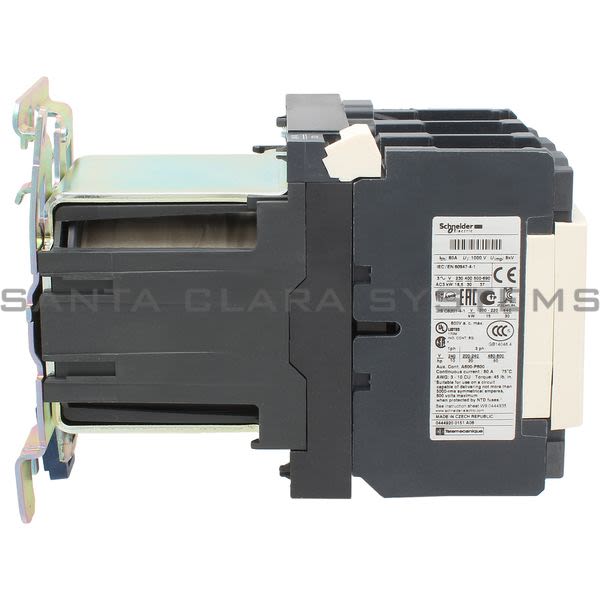

LC1D65BD

Telemecanique - Contactor

Current response time:

By 5AM PT on Monday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: Contactor
Range of product: TeSys D
IP degree of protection: IP2x conforming to IEC 60529
Standards: CSA C22.2 No 14
Device short name: LC1D
Width: 85 mm
Height: 127 mm
Depth: 176 mm
[Ui] rated insulation voltage: Control circuit: 600 V CSA certified
[Uimp] rated impulse withstand voltage: 8 kV conforming to IEC 60947
Operating altitude: 3000 m without
Mechanical durability: 10000000 cycles
Tightening torque: Control circuit: 1.2 N.m - on screw clamp terminal - with screwdriver flat 6 mm
Connections - terminals: Control circuit: screw clamp terminals 1 cable(s) 14 mmrigid
Range: TeSys
Mounting support: Rail
[Ith] conventional free air thermal current: 10 A (at 60 C) for control circuit
[Uc] control circuit voltage: 24 V DC
Shock resistance: 10 gn contactor opened
Vibration resistance: 2 gn 5300 Hz contactor opened
Insulation resistance: > 10 MOhm for control circuit
motor power kW: 30 kW at 440 V AC 50 Hz
[Ie] rated operational current: 80 A (at <60 C) at <= 440 V AC AC-1 for power circuit
Control circuit voltage limits: Drop-out: 0.1...0.3 Uc (at <60 C)
Poles description: 3P
Overvoltage category: III
Operating time: 20 ms opening
Associated fuse rating: 10 A gG for control circuit conforming to IEC 60947-5-1
Control circuit type: DC standard

Product or component type: Contactor
Contactor application: Resistive load
Utilisation category: AC-4
Pole contact composition: 3 NO
Coil technology: Built-in bidirectional peak limiting diode suppressor
Protective cover: With
Motor power hp: 5 hp at 115 V AC 60 Hz for 1 phase motors
Auxiliary contacts type: type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1
Auxiliary contact composition: 1 NO + 1 NC
Time constant: 34 ms
Flame retardance: V1 conforming to UL 94
[Ue] rated operational voltage: Power circuit: <= 690 V AC 25...400 Hz
Irms rated making capacity: 250 A DC for control circuit conforming to IEC 60947-5-1
Rated breaking capacity: 1000 A at 440 V for power circuit conforming to IEC 60947
Power dissipation per pole: 4.2 W AC-3
inrush power in W: 19 W (at 20 C)
hold-in power consumption in W: 7.4 W at 20 C
Safety reliability level: B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
Maximum operating rate: 3600 cyc/h 60 C
Minimum switching current: 5 mA for control circuit
Minimum switching voltage: 17 V for control circuit
Non-overlap time: 1.5 ms on de-energisation between NC and NO contacts
rated operational power in W: 14 W at 24 V DC-13 - electrical durability: 10000000 cycles - for control circuit
Ambient air temperature for operation: -560 C
Ambient air temperature for storage: -6080 C
Permissible ambient air temperature around the device: -4070 C at Uc
Fire resistance: 850 C conforming to IEC 60695-2-1
Toxic heavy metal free: Yes
Circularity Profile: End of Life Information
