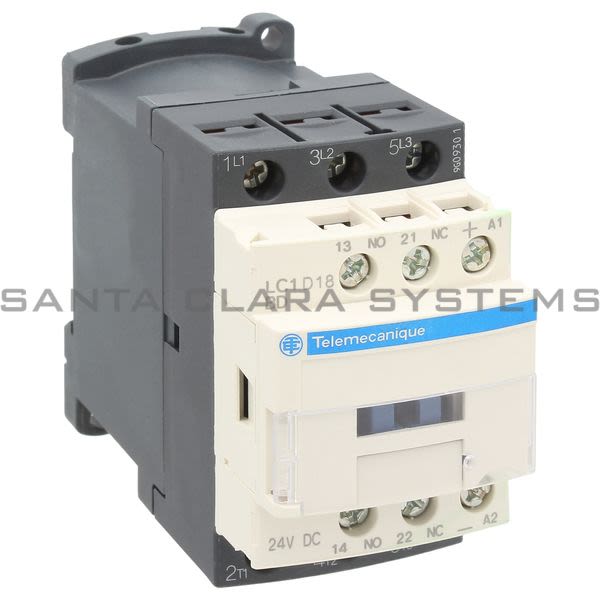

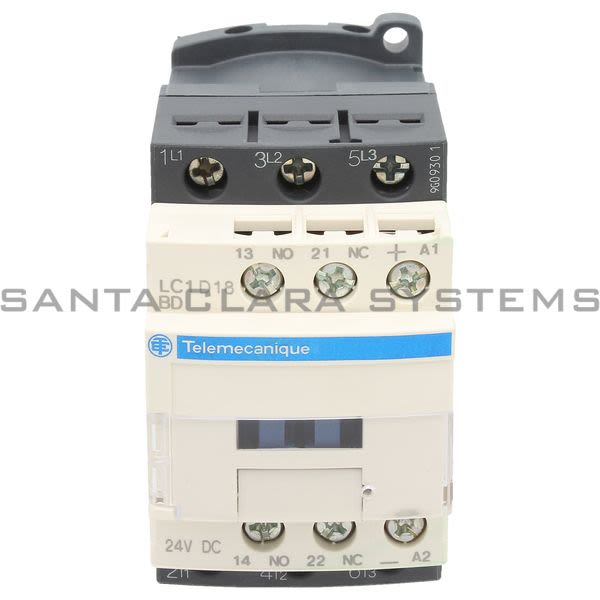

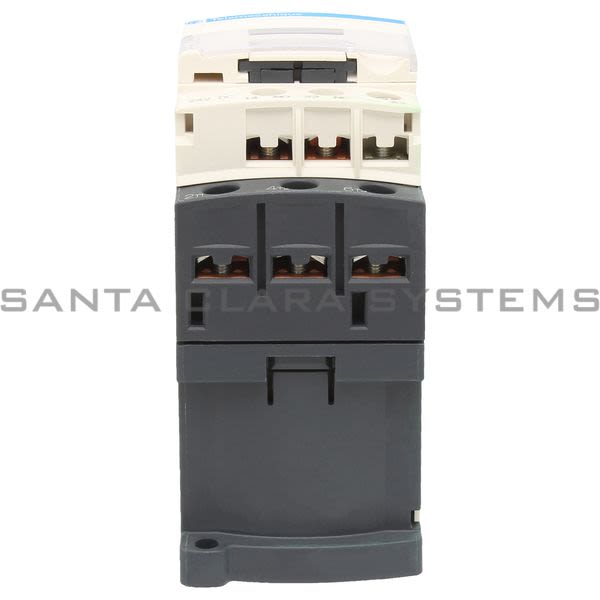

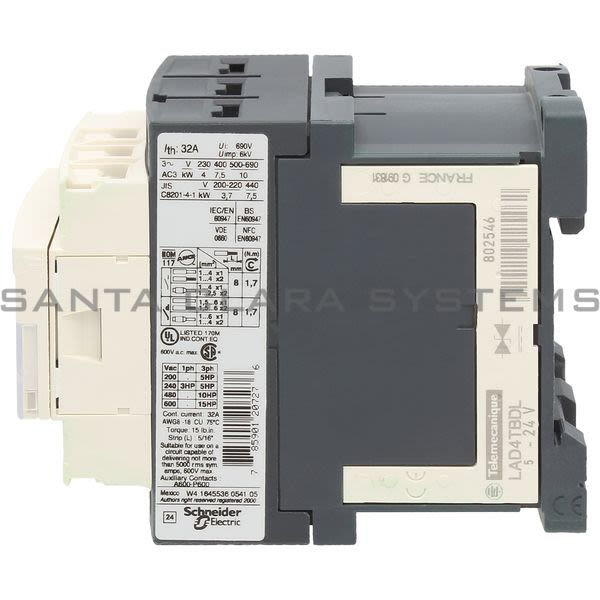

- Description: TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 18 A - 24 V DC coil
- Product weight: 1.08 lb(US) (0.49 kg)
- Range of product: TeSys D
- IP degree of protection: IP20 front face conforming to IEC 60529
- Standards: CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508
- Device short name: LC1D
- Width: 1.77 in (45 mm)
- Height: 3.03 in (77 mm)
- Depth: 3.74 in (95 mm)
- Protective treatment: TH conforming to IEC 60068-2-30
- [Ui] rated insulation voltage: 600 V power circuit certifications CSA, 600 V power circuit certifications UL, 690 V power circuit conforming to IEC 60947-4-1, 690 V signaling circuit conforming to IEC 60947-1, 600 V signaling circuit certifications CSA, 600 V signaling circuit certifications UL
- [Uimp] rated impulse withstand voltage: 6 kV conforming to IEC 60947
- Operating altitude: 9842.52 ft. (3000 m) without derating in temperature
- Mechanical durability: 30 Mcycles
- Tightening torque: Power circuit: 15.04 lbf.in (1.7 N.m) - on screw clamp terminals - with screwdriver flat 6 mm, Power circuit: 15.04 lbf.in (1.7 N.m) - on screw clamp terminals - with screwdriver Philips No 2, Control circuit: 15.04 lbf.in (1.7 N.m) - on screw clamp terminals - with screwdriver flat 6 mm, Control circuit: 15.04 lbf.in (1.7 N.m) - on screw clamp terminals - with screwdriver Philips No 2
- Connections - terminals: Control circuit: screw clamp terminals 2 cable(s) 0...0 in (1...2.5 mm) - cable stiffness: flexible - with cable end, Power circuit: screw clamp terminals 1 cable(s) 0...0.01 in (1...6 mm) - cable stiffness: flexible - with cable end, Control circuit: screw clamp terminals 1 cable(s) 0...0.01 in (1...4 mm) - cable stiffness: flexible - without cable end, Control circuit: screw clamp terminals 2 cable(s) 0...0.01 in (1...4 mm) - cable stiffness: flexible - without cable end, Control circuit: screw clamp terminals 1 cable(s) 0...0.01 in (1...4 mm) - cable stiffness: flexible - with cable end, Control circuit: screw clamp terminals 1 cable(s) 0...0.01 in (1...4 mm) - cable stiffness: solid - without cable end, Control circuit: screw clamp terminals 2 cable(s) 0...0.01 in (1...4 mm) - cable stiffness: solid - without cable end, Power circuit: screw clamp terminals 1 cable(s) 0...0.01 in (1.5...6 mm) - cable stiffness: flexible - without cable end, Power circuit: screw clamp terminals 2 cable(s) 0...0.01 in (1.5...6 mm) - cable stiffness: flexible - without cable end, Power circuit: screw clamp terminals 2 cable(s) 0...0.01 in (1...4 mm) - cable stiffness: flexible - with cable end, Power circuit: screw clamp terminals 1 cable(s) 0...0.01 in (1.5...6 mm) - cable stiffness: solid - without cable end, Power circuit: screw clamp terminals 2 cable(s) 0...0.01 in (1.5...6 mm) - cable stiffness: solid - without cable end
- Range: TeSys
- Mounting support: Rail, Plate
- [Ith] conventional free air thermal current: 32 A at <= 140 F (60 C) power circuit, 10 A at <= 140 F (60 C) signaling circuit
- System Voltage: <= 300 V DC power circuit, <= 690 V AC 25...400 Hz power circuit
- Operating rate: 3600 cyc/h at <= 140 F (60 C)
- Product name: TeSys D
- [Uc] control circuit voltage: 24 V DC
- Electrical durability: 1.65 Mcycles 18 A AC-3 at Ue <= 440 V, 1 Mcycles 32 A AC-1 at Ue <= 440 V
- Insulation resistance: > 10 MOhm signaling circuit
- motor power kW: 10 kW at 500 V AC 50/60 Hz AC-3, 10 kW at 660...690 V AC 50/60 Hz AC-3, 4 kW at 220...230 V AC 50/60 Hz AC-3, 7.5 kW at 380...400 V AC 50/60 Hz AC-3, 9 kW at 415...440 V AC 50/60 Hz AC-3, 4 kW at 400 V AC 50/60 Hz AC-4
- [Ie] rated operational current: 18 A (<= 140 F (60 C)) at <= 440 V AC AC-3 power circuit, 32 A (<= 140 F (60 C)) at <= 440 V AC AC-1 power circuit
- Utilization category: AC-4, AC-3, AC-1
- Control circuit voltage limits: 0.1...0.25 Uc drop-out at 140 F (60 C), DC, 0.7...1.25 Uc operational at 140 F (60 C), DC
- Poles description: 3P
- Overvoltage category: III
- Operating time: 53.55...72.45 ms closing, 16...24 ms opening
- Associated fuse rating: 35 A gG at <= 690 V coordination type 2 power circuit, 50 A gG at <= 690 V coordination type 1 power circuit, 10 A gG signaling circuit conforming to IEC 60947-5-1
- Control circuit type: DC standard
- Coil technology: With integral suppression device
- Time constant: 28 ms
- Pollution degree: 3
- Product or component type: Contactor
- inrush power in W: 5.4 W at 68 F (20 C)
- Ambient air temperature for operation: 23...140 F (-5...60 C)
- hold-in power consumption in W: 5.4 W at 68 F (20 C)
- Ambient air temperature for storage: -76...176 F (-60...80 C)
- Contactor application: Resistive load, Motor control
- Auxiliary contacts type: Type mechanically linked (1 NO + 1 NC) conforming to IEC 60947-5-1, Type mirror contact (1 NC) conforming to IEC 60947-4-1
- Permissible ambient air temperature around the device: -40...158 F (-40...70 C) at Uc
- Signaling circuit frequency: 25...400 Hz
- Minimum switching current: 5 mA signaling circuit
- Fire resistance: 1562 F (850 C) conforming to IEC 60695-2-1
- Pole contact composition: 3 NO
- Minimum switching voltage: 17 V signaling circuit
- Flame retardance: V1 conforming to UL 94
- Non-overlap time: 1.5 ms on energisation between NC and NO contact, 1.5 ms on de-energisation between NC and NO contact
- Mechanical robustness: Vibrations contactor open 2 Gn, 5...300 Hz, Vibrations contactor closed 4 Gn, 5...300 Hz, Shocks contactor open 10 Gn for 11 ms, Shocks contactor closed 15 Gn for 11 ms
- Power range: 7...11 kW 380...440 V 3 phases, 7...11 kW 480...500 V 3 phases, 4...6 kW 200...240 V 3 phases
- Motor power hp: 1 hp at 115 V AC 50/60 Hz 1 phase motors, 3 hp at 230/240 V AC 50/60 Hz 1 phase motors, 5 hp at 200/208 V AC 50/60 Hz 3 phases motors, 5 hp at 230/240 V AC 50/60 Hz 3 phases motors, 10 hp at 460/480 V AC 50/60 Hz 3 phases motors, 15 hp at 575/600 V AC 50/60 Hz 3 phases motors
- Motor starter type: Direct on-line contactor
- Contactor coil voltage: 24 V DC standard
- Auxiliary contact composition: 1 NO + 1 NC
- Irms rated making capacity: 300 A at 440 V power circuit conforming to IEC 60947, 140 A AC signaling circuit conforming to IEC 60947-5-1, 250 A DC signaling circuit conforming to IEC 60947-5-1
- Rated breaking capacity: 300 A at 440 V power circuit conforming to IEC 60947
- [Icw] rated short-time withstand current: 145 A <= 104 F (40 C) 10 s power circuit, 240 A <= 104 F (40 C) 1 s power circuit, 40 A <= 104 F (40 C) 10 min power circuit, 84 A <= 104 F (40 C) 1 min power circuit, 100 A 1 s signaling circuit, 120 A 500 ms signaling circuit, 140 A 100 ms signaling circuit
- Average impedance: 2.5 mOhm at 50 Hz - Ith 32 A power circuit
- Power dissipation per pole: 0.8 W AC-3, 2.5 W AC-1
- Protective cover: With
- Product certifications: LROS (Lloyds register of shipping), BV, GOST, DNV, CCC, GL, CSA, UL, RINA
- Safety reliability level: B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1, B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on LC1D18BD . Santa Clara Systems carries 10,326 items from Telemecanique.
- Tesys D Contactor - 3p(3 No) - Ac-3 - <= 440 V 18 A - 24 V Dc Coil
