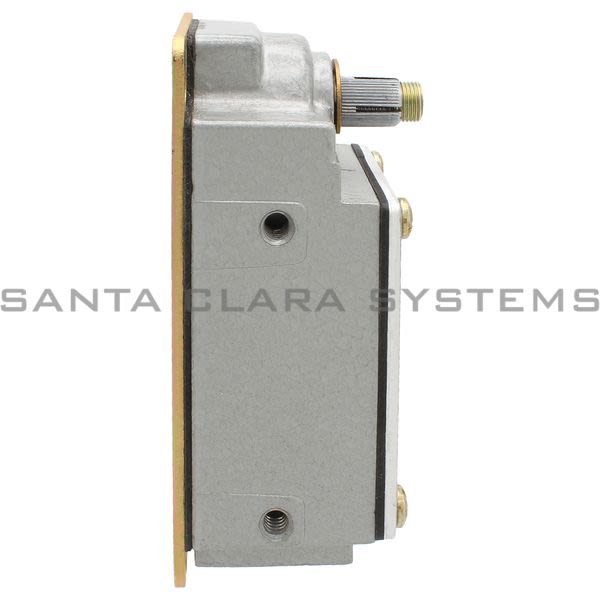

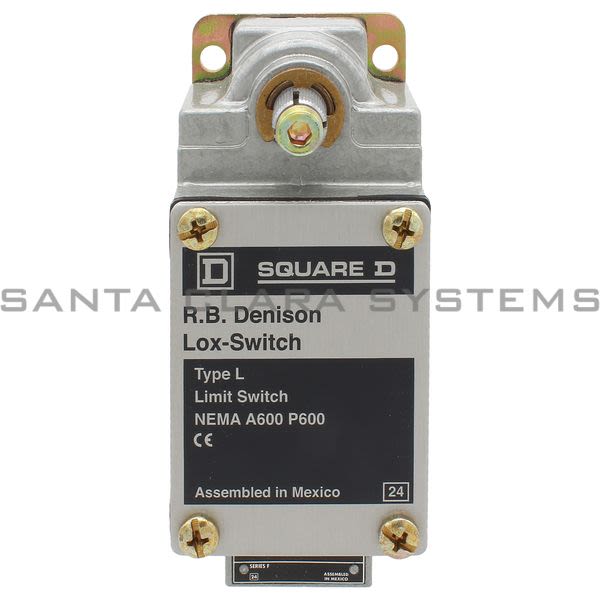

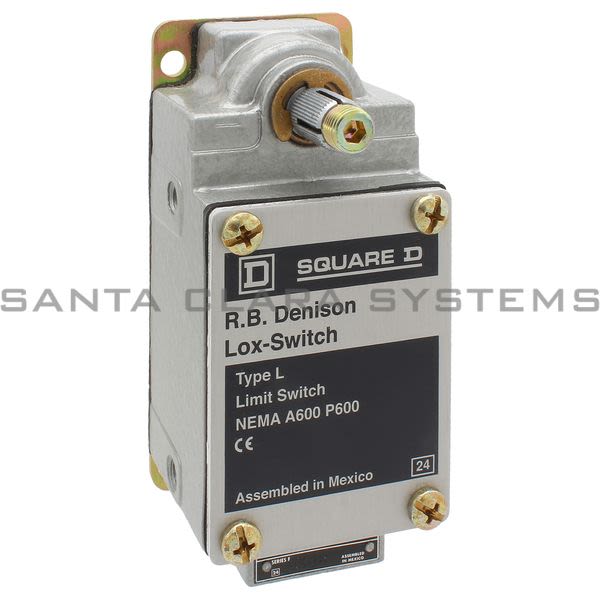

Telemecanique L100WS2M1 LIMIT SWITCH 600V 10AMP TYPE L +OPTIONS Product Image

L100WS2M1

Telemecanique - LIMIT SWITCH 600V 10AMP TYPE L +OPTIONS

Current response time:

11 Minutes 39 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: LIMIT SWITCH 600V 10AMP TYPE L +OPTIONS
Product weight: 1.5 lb(US)
Range of product: L100/300
IP degree of protection: IP67 conforming to IEC 60529
Device short name: L100, L300
Width: 2.25 in
Height: 4.95 in
Depth: 3.41 in
Protective treatment: Corrosion resistant gray paint
[Ui] rated insulation voltage: 600 V (degree of pollution: 3) conforming to UL 508, 600 V (degree of pollution: 3) conforming to CSA C22.2 No 14, 600 V (degree of pollution: 3) conforming to IEC 60947-1
[Uimp] rated impulse withstand voltage: 2.5 kV AC for 1 minute conforming to CE, 2.2 kV AC for 1 minute conforming to UL, 2.64 kV AC for 1 minute conforming to CSA
Shock resistance: 30 gn 9 ms conforming to IEC 60068-2-27
Vibration resistance: 10 gn (f = 10...55 Hz) conforming to IEC 60068-2-6
Electrical connection: Screw-clamp terminals (AWG 22...AWG 12)
Number of poles: 2
Head type: Rotary head
Base plate style: Style 2
Series name: Severe duty mill
Body material: Cast aluminum
Product or component type: Limit switch
Fixing mode: By the body
NEMA degree of protection: NEMA 1 Nema type 250, NEMA 2 Nema type 250, NEMA 4 Nema type 250, NEMA 12 Nema type 250, NEMA 13 Nema type 250
Product specific application: Mill switch
Type of operator: Spring return without operating lever
Contact sequence number: 1
Electrical shock protection class: Class 0 conforming to IEC 61140

Body type: Fixed
Function available: -
Ambient air temperature for operation: -10...185 F
Switch actuation: CW, From left
Ambient air temperature for storage: -10...185 F
Sale per indivisible quantity: 1
Type of approach: Lateral approach
Cable entry: 1 entry for 1/2" - 14 NPT conforming to ANSI B1.20.1
CW operation contacts: 1 NC + 1 NO
CCW operation contacts: 1 NC + 1 NO
Contacts style: A
Switch function: DPDT-DB
Contact form: Form Zb
Contacts material: 90/10 AgCdO on copper backing stationary contact, Silver on steel backing moveable contact
Contacts usage: -
Contact operation: Snap action
Positive opening: Without
Minimum torque for tripping: 190 ozf.in
Maximum actuation speed: 90 ft./min with 45 cam angle, levers only, 130 ft./min with 30 cam angle, levers only
Tripping angle: 17
Maximum displacement angle: 80
Repeat accuracy: +/- 0.03 %
Contact code designation: A600 , AC (Ue = 600 V, Ie = 5 A) conforming to NEMA rating designation, A600 , AC (Ue = 480 V, Ie = 6.25 A) conforming to NEMA rating designation, A600 , AC (Ue = 240 V, Ie = 12.5 A) conforming to NEMA rating designation, A600 , AC (Ue = 120 V, Ie = 20 A) conforming to NEMA rating designation, P600 , DC (Ue = 600 V, Ie = 0.2 A) conforming to NEMA rating designation, P600 , DC (Ue = 250 V, Ie = 1 A) conforming to NEMA rating designation, P600 , DC (Ue = 120 V, Ie = 5 A) conforming to NEMA rating designation
[Ithe] conventional enclosed thermal current: 20 A
Short-circuit protection: 20 A Bussmann class CC KTK-R-20 fuse with non-time delay
terminals description ISO n1: (3-4) right side contact, (1-2) left side contact
