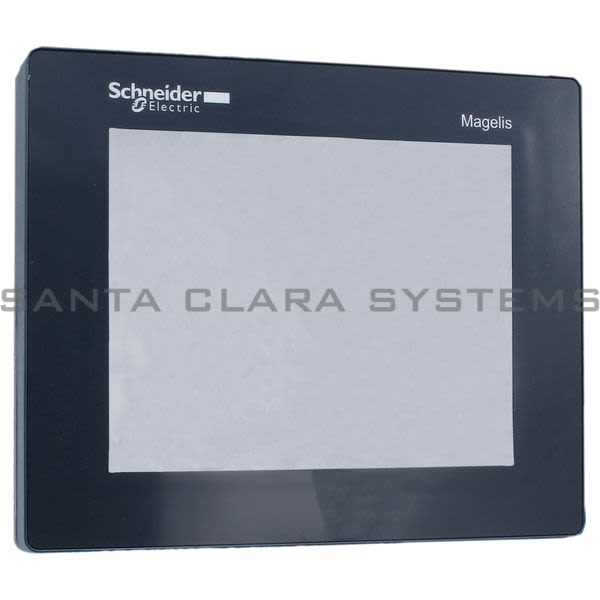

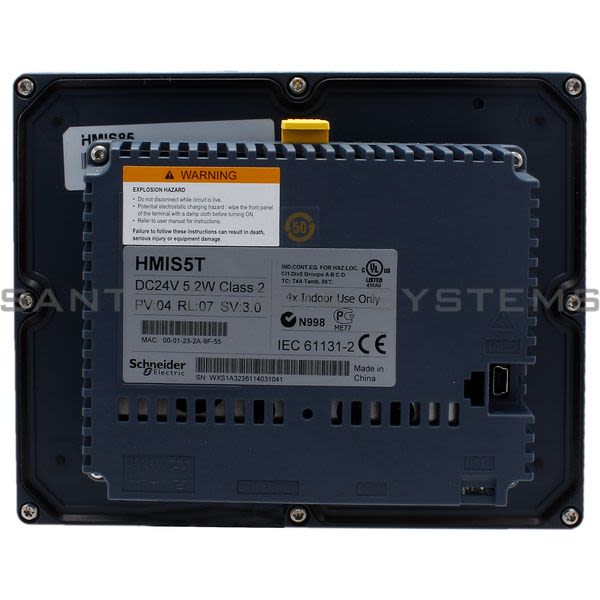

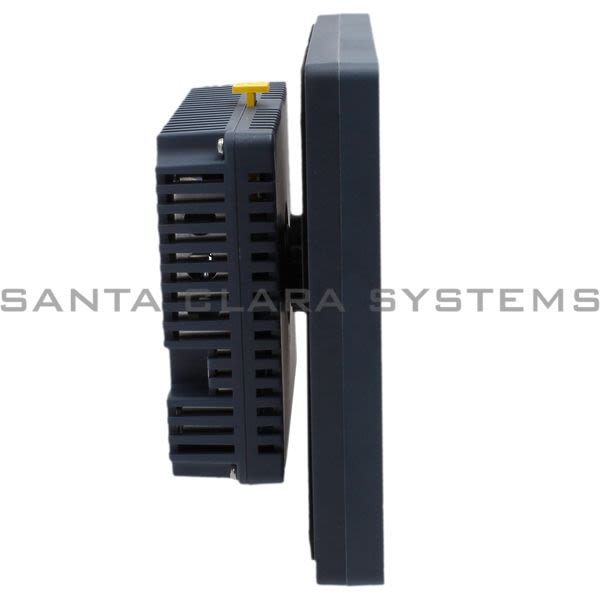

HMISTU855

Telemecanique - touch panel screen 5''7 Color

Current response time:

By 5AM PT on Thursday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: touch panel screen 5''7 Color
Range of product: Magelis STO & STU
IP degree of protection: IP20 (rear panel) conforming to IEC 60529, IP65 (front panel) conforming to IEC 60529
Standards: IEC 61000-6-2, EN 61131-2, UL 508, UL 1604, FCC Class A
Width: 6.42 in (163 mm)
Height: 5.08 in (129.15 mm)
Depth: 2.22 in (56.5 mm)
Operating altitude: <= 6561.68 ft. (2000 m)
Shock resistance: 15 gn 11 ms conforming to IEC 60068-2-27
Vibration resistance: +/- 3.5 mm (f = 5...9 Hz) conforming to IEC 60068-2-6, 1 gn (f = 9...150 Hz) conforming to IEC 60068-2-6
[Us] rated supply voltage: 24 V DC
Relative humidity: 0...85 % without condensation
Enclosure material: PC/PBT and PAA
Display size: 5.7 inch
Immunity to micro breaks: <= 7 ms
Product or component type: Touch panel screen
Display type: QVGA TFT color touchscreen
Software designation: Vijeo Designer
Display color: 65536 colors
Product certifications: UL class 1 Div2 T4A ou T5, Marine, cULus, C-Tick
Operating system: Magelis
Display resolution: 320 x 240 pixels QVGA

Ambient air temperature for operation: 32...122 F (0...50 C)
Processor name: CPU ARM9
Touch panel: Analogue
Ambient air temperature for storage: -4...140 F (-20...60 C)
Backlight lifespan: 50000 hours
Brightness: 16 levels
Character font: Chinese (simplified Chinese), ASCII, Korean, Japanese (ANK, Kanji), Taiwanese (traditional Chinese)
NEMA degree of protection: NEMA 4X front panel (indoor use)
Supply: External source
Supply voltage limits: 20.4...28.8 V
Inrush current: <= 30 A
Resistance to electromagnetic fields: 9.14 V/yd (10 V/m) conforming to IEC 61000-4-3
power consumption in W: 6.8 W
Number of pages: Limited by internal memory capacity
Processor frequency: 333 MHz
Memory description: Application memory, 16 MB, Back up of data, 64 kB
Integrated connection type: 1 USB 2.0 type mini B, 1 USB 2.0 type A, Removable screw terminal block connector power supply, Female RJ45 connector COM1 serial link with RS232C/RS485 interface at <= 115.2 kbits/s
Real-time clock: Access to the PLC real-time clock
Downloadable protocols: Modbus TCP/IP, Uni-TE, Modbus, Third party protocols
Fixing mode: 22 mm hole
Marking: CE, With Schneider logo
