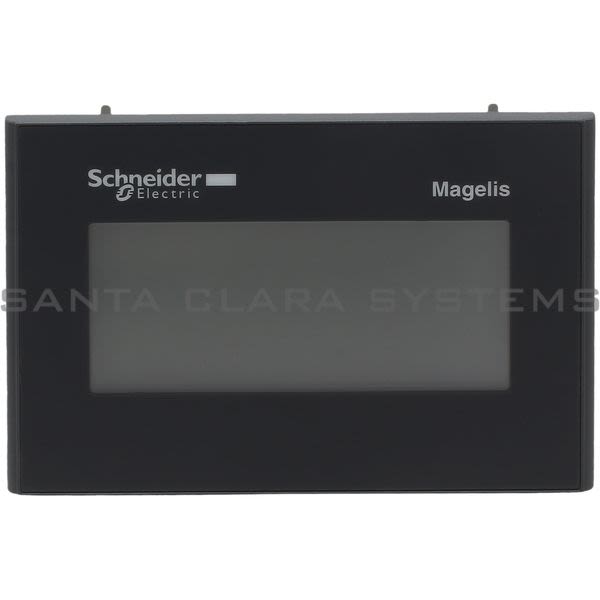

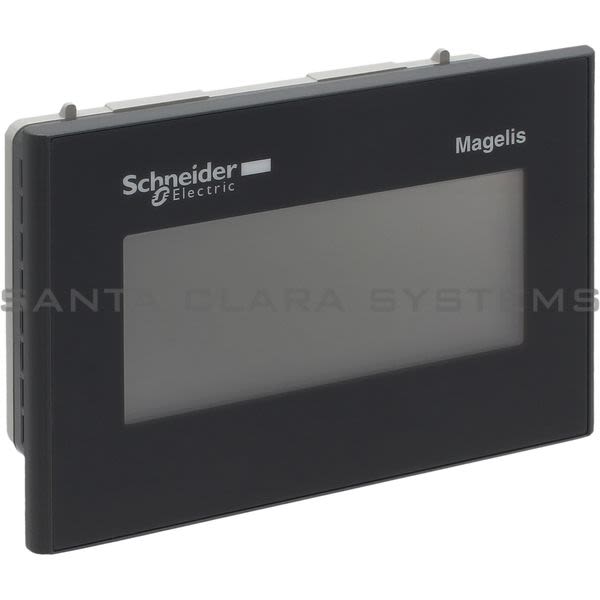

HMISTO501

Telemecanique - touch panel screen 3''4 Monochrome W/P/R for Zelio

Current response time:

4 Minutes 3 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: touch panel screen 3''4 Monochrome W/P/R for Zelio
Range of product: Magelis STO & STU
IP degree of protection: IP20 (rear panel) conforming to IEC 60529, IP65 (front panel) conforming to IEC 60529
Standards: IEC 61000-6-2, FCC Class A, UL 508, EN 61131-2, UL 1604
Operating altitude: <= 6561.68 ft. (2000 m)
Shock resistance: 15 gn 11 ms conforming to IEC 60068-2-27
Vibration resistance: +/- 3.5 mm (f = 5...9 Hz) conforming to IEC 60068-2-6, 1 gn (f = 9...150 Hz) conforming to IEC 60068-2-6
[Us] rated supply voltage: 24 V DC +/- 20 %
Relative humidity: 0...90 % without condensation
Enclosure material: PPT
Display size: 3.4 inch
Immunity to micro breaks: <= 3 ms
Product or component type: Touch panel screen
Display type: Backlit monochrome STN LCD
Software designation: Vijeo Designer
Background color: Red, White, Pink
Product certifications: UL Class 1 Division 2 T4A, cULus, C-Tick, UL Class 1 Division 2 T5, CE
Operating system: Magelis
Display resolution: 200 x 80 pixels
Ambient air temperature for operation: 32...122 F (0...50 C)
Processor name: CPU RISC

Touch panel: Analogue
Ambient air temperature for storage: -4...140 F (-20...60 C)
Backlight lifespan: 10000 hours with red, 50000 hours with pink, 50000 hours with white
Brightness: 8 levels
Contrast: 16 levels via touch panel
Character font: Taiwanese (traditional Chinese), Japanese (ANK, Kanji), ASCII, Chinese (simplified Chinese), Korean
NEMA degree of protection: NEMA 4X front panel (indoor use)
Inrush current: <= 30 A
Local signaling: 1 LED with green for normal operation
Electromagnetic compatibility: Resistance to radiated electromagnetic fields : 10 V/m conforming to IEC 61000-4-3
power consumption in W: 5 W
Number of pages: Limited by internal memory capacity
Processor frequency: 333 MHz
Memory description: Application memory, 16 MB, Back up of data, 128 kB

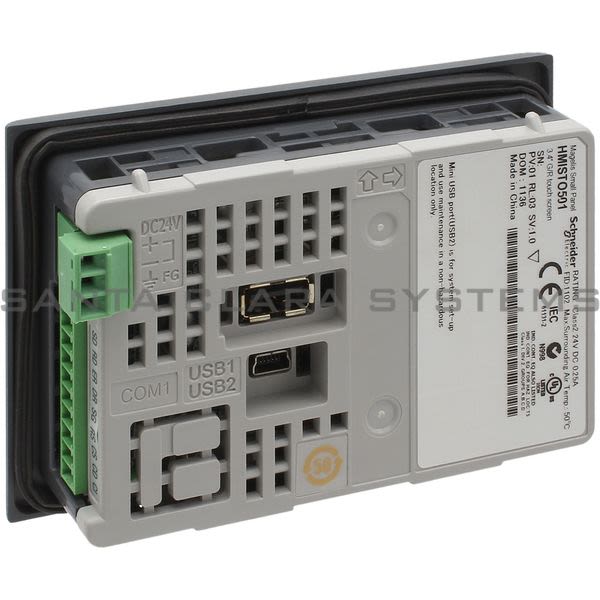

Integrated connection type: 1 USB 2.0 type mini B, 1 USB 2.0 type A, Removable screw terminal block connector power supply, 9-pin terminal block connector serial link with RS232C interface
Supply: External source
Real-time clock: Access to the PLC real-time clock
Downloadable protocols: Zelio
Range compatibility: Zelio Logic
Fixing mode: By 2 spring clips on 1.6...5 mm thick panel
Marking: CE
