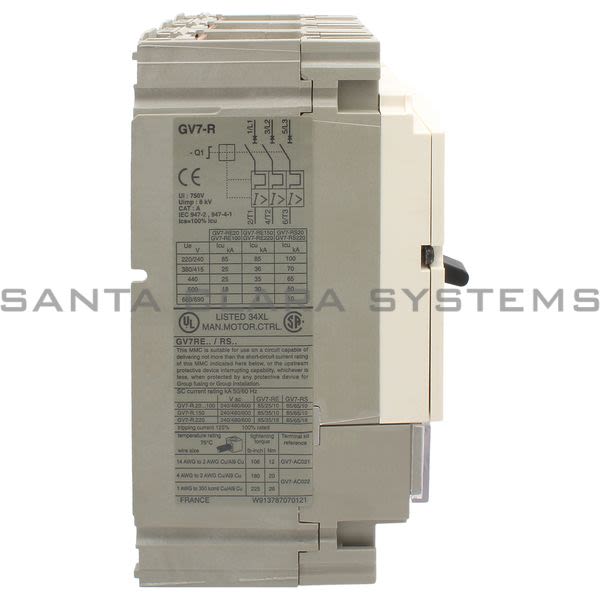

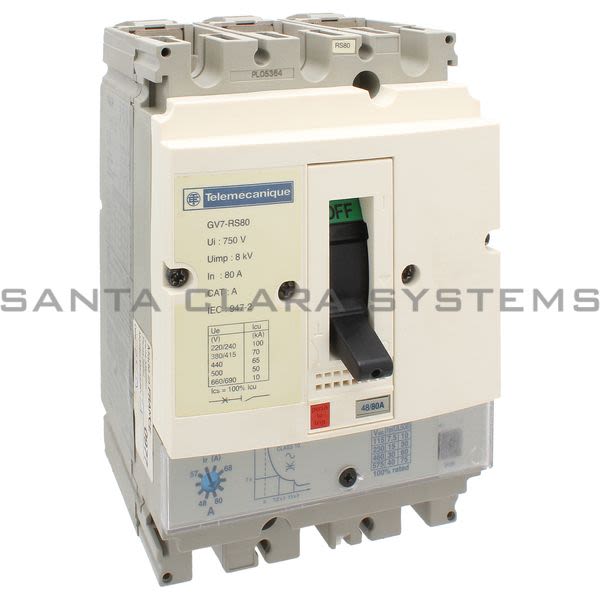

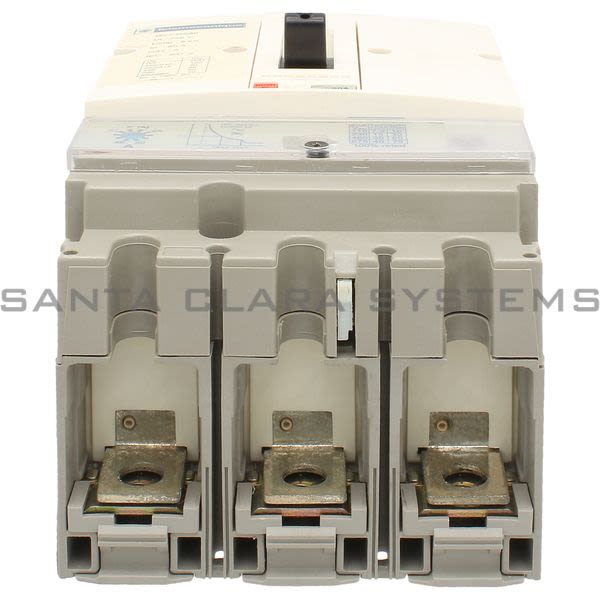

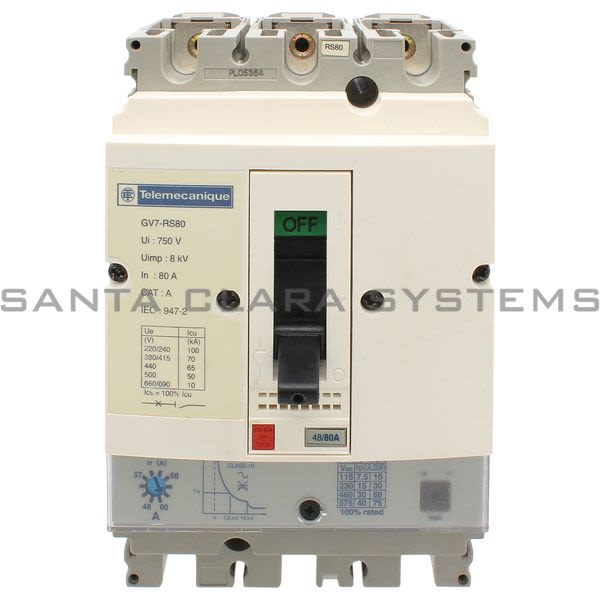

Telemecanique GV7 RS80 TeSys GV7 - circuit breaker - 3P - AC-3 - 48...80 A - thermal-magnetic Product Image

GV7RS80

Telemecanique - TeSys GV7 - circuit breaker - 3P - AC-3 - 48...80 A - thermal-magnetic

Current response time:

4 Minutes 36 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: TeSys GV7 - circuit breaker - 3P - AC-3 - 48...80 A - thermal-magnetic
Product weight: 4.5 lb(US) (2.04 kg)
IP degree of protection: IP405 with terminal shrouds conforming to IEC 60529
Standards: NF C 79-130NF C 63-650EN/IEC 60947-2NF C 63-120EN/IEC 60947-1EN/IEC 60947-4-1VDE 0660VDE 0113
Device short name: GV7R
Width: 4.13 in (105 mm)
Height: 4.92 in (125 mm)
Depth: 4.37 in (111 mm)
Protective treatment: TC
[Ui] rated insulation voltage: 750 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage: 8 kV conforming to IEC 60947-2
Operating altitude: 6561.68 ft. (2000 m)
Mechanical durability: 50000 cycles
Tightening torque: 10 N.m - on screw - screw M615 N.m - on bare cable connectors- cable 1.5...95 mm²
Connections - terminals: BarsCable with lug - external diameter : 10 mmBare cable connectors 1.5...95 mm²Screw
Range: TeSys
Mounting support: RailPanel mountingFlushKit for fixing the switchgear
[Ith] conventional free air thermal current: 80 A conforming to IEC 60947-4-1
System Voltage: 690 V AC 50/60 Hz conforming to IEC 60947-2
Operating rate: 25 cyc/h
Product name: TeSys GV7
Electrical durability: 30000 cycles AC-3 at 440 V In50000 cycles AC-3 at 440 V In/2
motor power kW: 37 kW at 400...415 V AC 50/60 Hz45 kW at 500 V AC 50/60 Hz55 kW at 500 V AC 50/60 Hz55 kW at 660...690 V AC 50/60 Hz
Utilization category: AC-3 conforming to IEC 60947-4-1

Poles description: 3P
Control type: Rocker lever
Breaking capacity: 50 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-265 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-210 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2100 kA Icu at 230...240 V AC 50/60 Hz conforming to IEC 60947-270 kA Icu at 400...415 V AC 50/60 Hz conforming to IEC 60947-2
Mounting position: Vertical
Mounting mode: By Clips / By Screws
Product certifications: ULDNV
Product or component type: Circuit breaker
Device application: Motor
Pollution degree: 3
Ambient air temperature for operation: -13...158 °F (-25...70 °C)
Network type: AC
Ambient air temperature for storage: -67...203 °F (-55...95 °C)
Fire resistance: 1760 °F (960 °C) conforming to IEC 60695-2-1
Network frequency: 50/60 Hz conforming to IEC 60947-4-1
Power dissipation per pole: 5 W
[Ics] rated service short-circuit breaking capacity: 100 % at 400...415 V AC conforming to IEC 60947-2100 % at 440 V AC conforming to IEC 60947-2100 % at 500 V AC conforming to IEC 60947-2100 % at 690 V AC conforming to IEC 60947-2100 % at 230...240 V AC 50/60 Hz conforming to IEC 60947-2
Power dissipation: 5 W
Trip unit rating: 48...80 A
Trip unit technology: Thermal-magnetic
Rated duty: Continuous conforming to IEC 60947-4-1
Connection pitch: 1.38 in (35 mm) without spreaders1.77 in (45 mm) with spreaders
Mechanical robustness: Shocks 15 Gn for 11 ms conforming to IEC 60068-2-27Vibrations 2.5 Gn, 0...25 Hz conforming to IEC 60068-2-6
Suitability for isolation: Yes conforming to IEC 60947-1
Phase failure sensitivity: Yes conforming to IEC 60947-4-1 § 7-2-1-5-2
