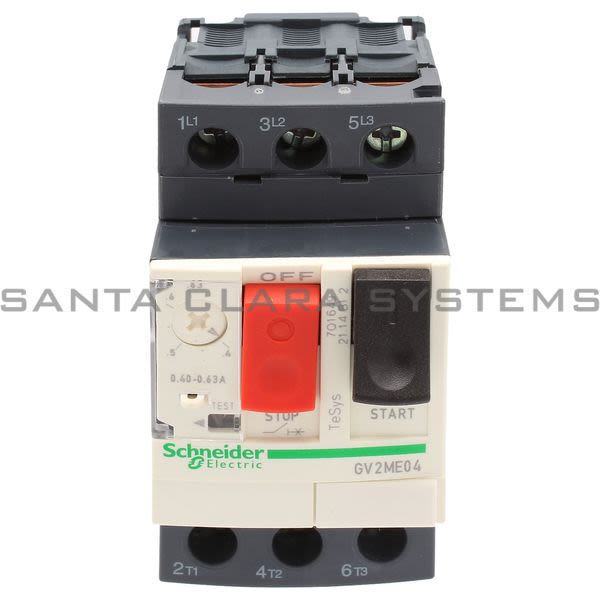

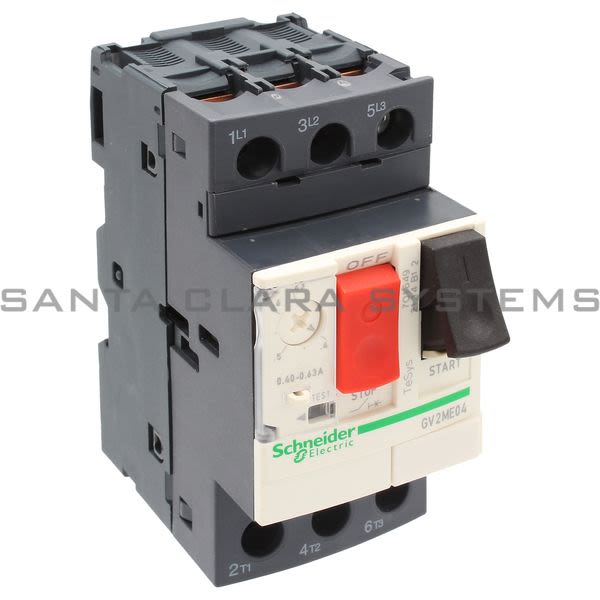

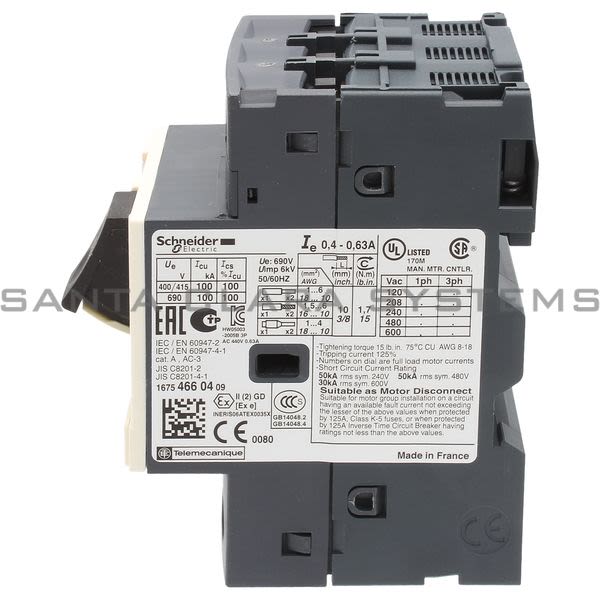

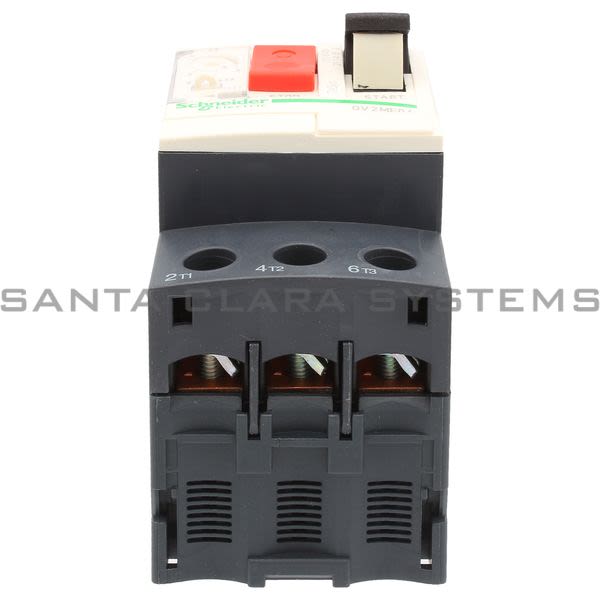

GV2ME04

Telemecanique - TeSys GV2-Circuit breaker-thermal-magnetic- 0.4...0.63 A -screw clamp terminals

Current response time:

15 Minutes 59 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: TeSys GV2-Circuit breaker-thermal-magnetic- 0.4...0.63 A -screw clamp terminals
Product weight: 0.57 lb(US) (0.26 kg)
IP degree of protection: IP20 conforming to IEC 60529
Standards: VDE 0113, IEC 60947-1, NF C 63-120, UL 508, NF C 63-650, NF C 79-130, IEC 60947-2, EN 60204, IEC 60947-4-1, VDE 0660, CSA C22.2
Device short name: GV2ME
Width: 1.77 in (45 mm)
Height: 3.5 in (89 mm)
Depth: 3.08 in (78.2 mm)
Protective treatment: TH
[Ui] rated insulation voltage: 690 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage: 6 kV conforming to IEC 60947-2
Operating altitude: 6561.68 ft. (2000 m)
Mechanical durability: 100000 cycles
Tightening torque: 15.04 lbf.in (1.7 N.m) - on screw clamp terminals
Connections - terminals: Screw clamp terminals 2 cable(s) 0...0.01 in (1...6 mm) - cable stiffness : solid, Screw clamp terminals 2 cable(s) 0...0.01 in (1.5...6 mm) - cable stiffness : flexible - without cable end, Screw clamp terminals 2 cable(s) 0...0.01 in (1...4 mm) - cable stiffness : flexible - with cable end
Range: TeSys
Mounting support: Rail
[Ith] conventional free air thermal current: 0.63 A conforming to IEC 60947-4-1
System Voltage: 690 V AC 50/60 Hz conforming to IEC 60947-2
Operating rate: 25 cyc/h
Product name: TeSys GV2
Electrical durability: 100000 cycles AC-3 at 440 V
motor power kW: 0.12 kW at 400/415 V AC 50/60 Hz, 0.18 kW at 400/415 V AC 50/60 Hz, 0.37 kW at 690 V AC 50/60 Hz
Utilization category: AC-3 conforming to IEC 60947-4-1, Category A conforming to IEC 60947-2

Poles description: 3P
Control type: Push-button
Breaking capacity: 100 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2, 100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2, 100 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2, 100 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2, 100 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2
Mounting position: Vertical, Horizontal
Network type: AC
Product certifications: LROS (Lloyds register of shipping), TSE, DNV, UL, GL, CEBEC, RINA, SETI, CCC, EAC, EZU, ATEX, CSA, BV
Product or component type: Circuit breaker
Network frequency: 50/60 Hz conforming to IEC 60947-4-1
Device application: Motor
Mounting mode: By Clips / By Screws
IK degree of protection: IK04
Trip unit technology: Thermal-magnetic
Ambient air temperature for operation: -4...140 F (-20...60 C)
Ambient air temperature for storage: -40...176 F (-40...80 C)
Fire resistance: 1760 F (960 C) conforming to IEC 60695-2-1
[Ics] rated service short-circuit breaking capacity: 100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2, 100 % at 440 V AC 50/60 Hz conforming to IEC 60947-2, 100 % at 500 V AC 50/60 Hz conforming to IEC 60947-2, 100 % at 690 V AC 50/60 Hz conforming to IEC 60947-2, 100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
[In] rated current: 0.4...0.63 A
Trip unit rating: 0.4...0.63 A
Magnetic tripping current: 8:00 AM
Power dissipation per pole: 2.5 W
Rated duty: Continuous conforming to IEC 60947-4-1
Suitability for isolation: Yes conforming to IEC 60947-1
Phase failure sensitivity: Yes conforming to IEC 60947-4-1
