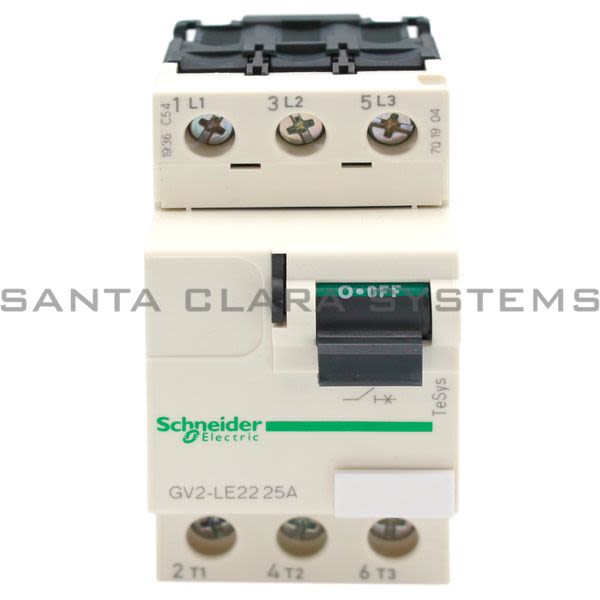

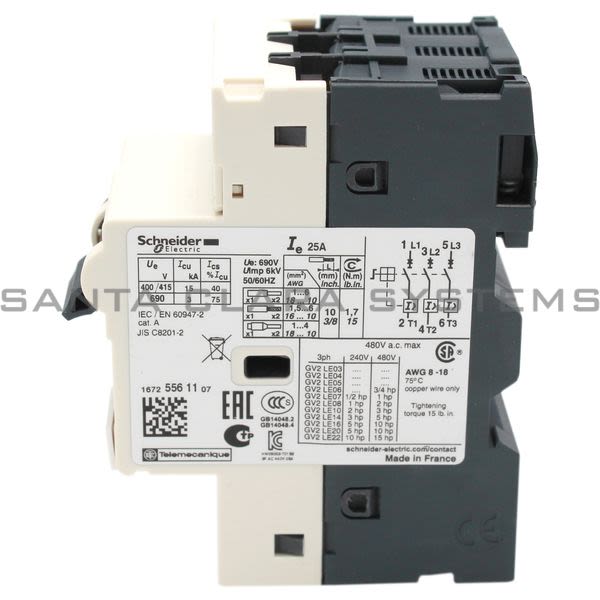

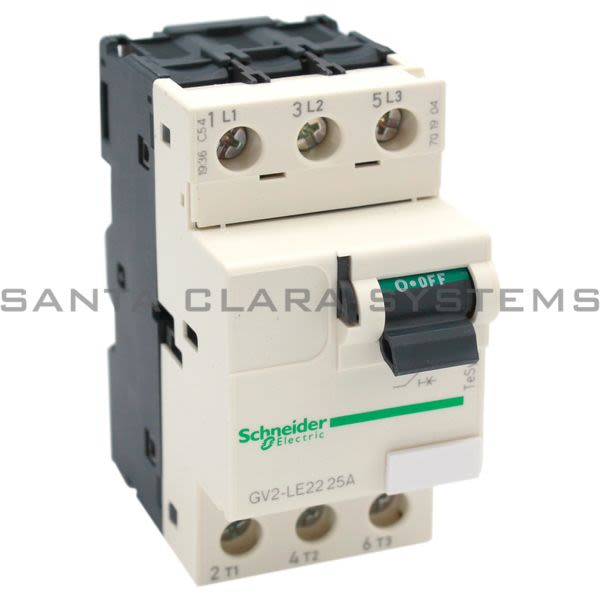

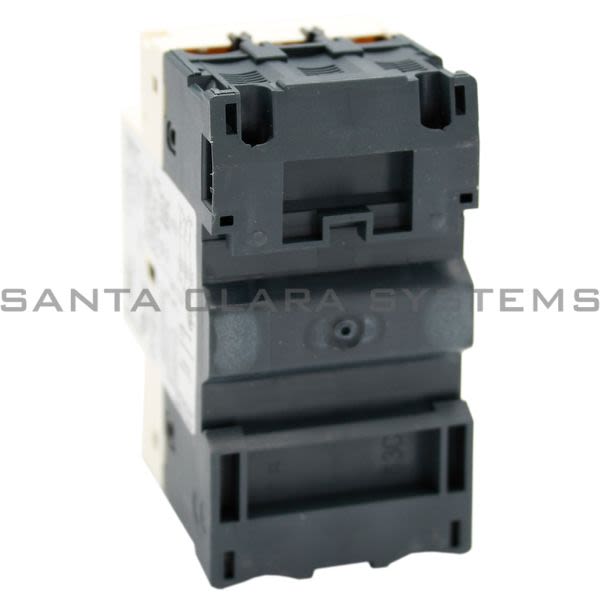

GV2LE22

Telemecanique - Manual Motor Starter

Current response time:

13 Minutes 59 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: Manual Motor Starter
IP degree of protection: IP20 conforming to IEC 60529
Standards: EN/IEC 60947-2
Device short name: GV2LE
Width: 45 mm
Height: 89 mm
Depth: 78.5 mm
Protective treatment: TH
[Ui] rated insulation voltage: 690 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage: IEC 60947-2 6 kV
Operating altitude: 0...2000 m
Mechanical durability: 100000 cycles
Tightening torque: 1.7 N.m on screw clamp terminals
Connections - terminals: Screw clamp terminals 2 cable(s) 16 mm solid
Range: TeSys
Electrical durability: 100000 cycles for AC-3 at 415 V
motor power kW: 9 kW at 400/415 V AC 50/60 Hz
Poles description: 3P
Control type: Toggle
Breaking capacity: 50 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2
Device application: Motor
Network type: AC
Utilisation category: Category A conforming to IEC 60947-2

Network frequency: 50/60 Hz conforming to IEC 60947-2
[Ics] rated service short-circuit breaking capacity: 100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2
Trip unit technology: Magnetic
Magnetic tripping current: 327 A
Fixing mode: 35 mm symmetrical DIN rail: clipped
Operating position: Any position
[Ue] rated operational voltage: 690 V AC 50/60 Hz conforming to IEC 60947-2
Power dissipation per pole: 1.8 W
Maximum operating rate: 40 cyc/h
Rated duty: Continuous conforming to IEC 60947-4-1
Mechanical robustness: Shocks: 30 Gn conforming to IEC 60068-2-27
Suitability for isolation: Yes conforming to IEC 60947-1
Net weight: 0.33 kg
Product certifications: IECEE CB Scheme
IK degree of protection: IK04
Ambient air temperature for operation: -2060 C
Ambient air temperature for storage: -4080 C
Fire resistance: 960 C conforming to IEC 60695-2-1
REACh Regulation: REACh Declaration
Mercury free: Yes
Environmental Disclosure: Product Environmental Profile
Circularity Profile: No need of specific recycling operations
WEEE: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
