BSH1002P12A2A

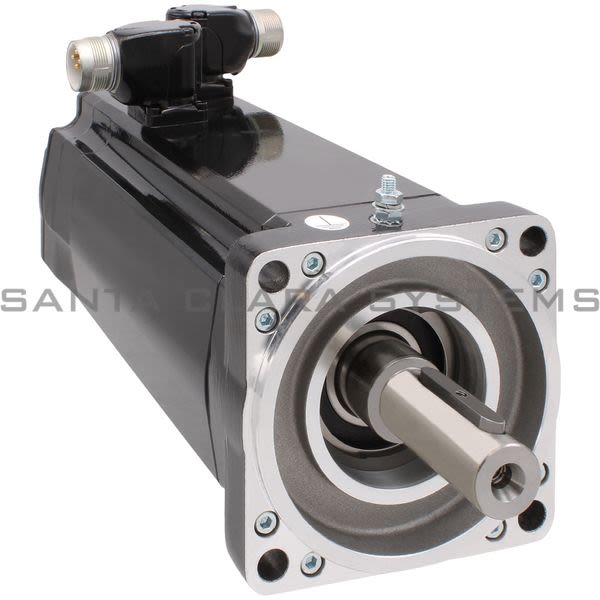

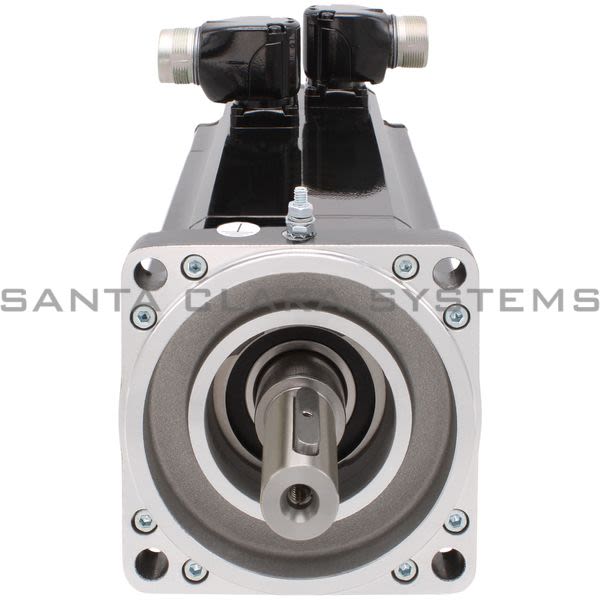

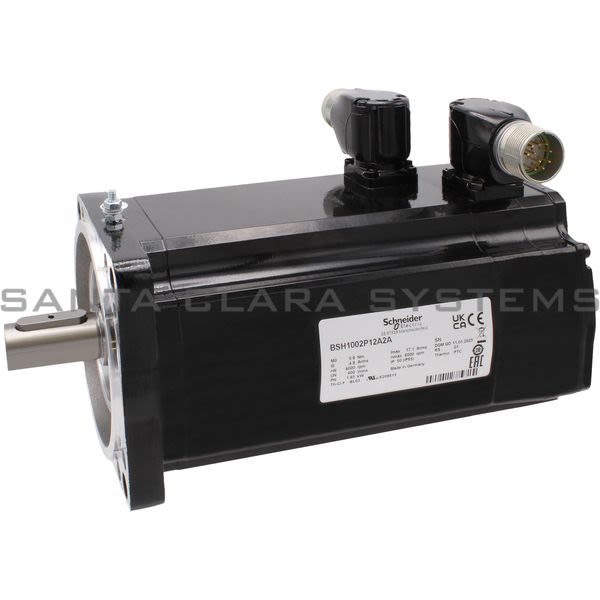

Telemecanique - AC servo motor BSH - 3.4 N.m - 2500 rpm - keyed shaft - without brake - IP50

Current response time:

11 Minutes 46 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: AC servo motor BSH - 3.4 N.m - 2500 rpm - keyed shaft - without brake - IP50
Product weight: 13.01 lb(US) (5.9 kg)
IP degree of protection: IP50 (standard)
Device short name: BSH
Mounting support: International standard flange
Electrical connection: Rotatable right-angled connectors
[Us] rated supply voltage: 480 V
Category: 18282 - LEXIUM 32 MOTORS
Returnability: N
Country of origin: DE
Switching frequency: 8 kHz
Length: 8.05 in (204.5 mm)
Holding brake: Without
Product or component type: Servo motor
Range compatibility: Lexium 32, Lexium 15, Lexium 05
Discount Schedule: PC53
Maximum mechanical speed: 6000 rpm
Phase: Three phase
Nbr. of units in pkg.: 1
Continuous stall torque: 51.33 lbf.in (5.8 N.m) for LXM32.D18N4 6 A at 400 V three phase, 51.33 lbf.in (5.8 N.m) for LXM32.D18N4 6 A at 480 V three phase, 39.82 lbf.in (4.5 N.m) LXM15LD21M3 at 230 V single phase, 48.67 lbf.in (5.5 N.m) LXM05AD28M2 at 200...240 V single phase, 48.67 lbf.in (5.5 N.m) LXM05BD28M2 at 200...240 V single phase, 48.67 lbf.in (5.5 N.m) LXM05CD28M2 at 200...240 V single phase, 30.09 lbf.in (3.4 N.m) LXM15LD13M3 at 230 V three phase, 30.09 lbf.in (3.4 N.m) LXM15LD10N4 at 230 V three phase, 30.09 lbf.in (3.4 N.m) LXM15LD10N4 at 400 V three phase, 30.09 lbf.in (3.4 N.m) LXM15LD10N4 at 480 V three phase, 51.33 lbf.in (5.8 N.m) LXM15LD17N4 at 400 V three phase, 51.33 lbf.in (5.8 N.m) LXM15LD17N4 at 480 V three phase, 51.33 lbf.in (5.8 N.m) LXM15LD21M3 at 230 V three phase, 48.67 lbf.in (5.5 N.m) LXM05AD17M3X at 200...240 V three phase, 48.67 lbf.in (5.5 N.m) LXM05AD22N4 at 380...480 V three phase, 48.67 lbf.in (5.5 N.m) LXM05BD17M3X at 200...240 V three phase, 48.67 lbf.in (5.5 N.m) LXM05BD22N4 at 380...480 V three phase, 48.67 lbf.in (5.5 N.m) LXM05CD17M3X at 200...240 V three phase, 48.67 lbf.in (5.5 N.m) LXM05CD22N4 at 380...480 V three phase
Continuous stall current: 4.8 A
Package weight(Lbs): 13
Peak stall torque: 161.95 lbf.in (18.3 N.m) for LXM32.D18N4 6 A at 480 V three phase, 161.95 lbf.in (18.3 N.m) for LXM32.D18N4 6 A at 400 V three phase, 141.59 lbf.in (16 N.m) LXM05AD28M2 at 200...240 V single phase, 141.59 lbf.in (16 N.m) LXM05BD28M2 at 200...240 V single phase, 141.59 lbf.in (16 N.m) LXM05CD28M2 at 200...240 V single phase, 83.1 lbf.in (9.39 N.m) LXM15LD21M3 at 230 V single phase, 49.56 lbf.in (5.6 N.m) LXM15LD13M3 at 230 V three phase, 70.8 lbf.in (8 N.m) LXM15LD10N4 at 230 V three phase, 70.8 lbf.in (8 N.m) LXM15LD10N4 at 400 V three phase, 70.8 lbf.in (8 N.m) LXM15LD10N4 at 480 V three phase, 107.35 lbf.in (12.13 N.m) LXM15LD17N4 at 400 V three phase, 107.35 lbf.in (12.13 N.m) LXM15LD17N4 at 480 V three phase, 130.88 lbf.in (14.79 N.m) LXM15LD21M3 at 230 V three phase, 99.38 lbf.in (11.23 N.m) LXM05AD17M3X at 200...240 V three phase, 123.19 lbf.in (13.92 N.m) LXM05AD22N4 at 380...480 V three phase, 99.38 lbf.in (11.23 N.m) LXM05BD17M3X at 200...240 V three phase, 123.19 lbf.in (13.92 N.m) LXM05BD22N4 at 380...480 V three phase, 99.38 lbf.in (11.23 N.m) LXM05CD17M3X at 200...240 V three phase, 123.19 lbf.in (13.92 N.m) LXM05CD22N4 at 380...480 V three phase
Continuous power: 2.51 W
Nominal output power: 1700 W for LXM32.D18N4 6 A at 480 V three phase, 1700 W for LXM32.D18N4 6 A at 400 V three phase, 780 W LXM05AD28M2 at 200...240 V single phase, 780 W LXM05BD28M2 at 200...240 V single phase, 780 W LXM05CD28M2 at 200...240 V single phase, 950 W LXM15LD21M3 at 230 V single phase, 950 W LXM15LD21M3 at 230 V three phase, 1400 W LXM05AD22N4 at 380...480 V three phase, 1400 W LXM05BD22N4 at 380...480 V three phase, 1400 W LXM05CD22N4 at 380...480 V three phase, 1600 W LXM15LD10N4 at 400 V three phase, 1700 W LXM15LD17N4 at 400 V three phase, 1950 W LXM15LD17N4 at 480 V three phase, 2150 W LXM15LD10N4 at 480 V three phase, 780 W LXM05AD17M3X at 200...240 V three phase, 780 W LXM05BD17M3X at 200...240 V three phase, 780 W LXM05CD17M3X at 200...240 V three phase, 840 W LXM15LD13M3 at 230 V three phase, 890 W LXM15LD10N4 at 230 V three phase
maximum current Irms: 17.1 A LXM05AD17M3X, 17.1 A LXM05AD22N4, 17.1 A LXM05AD28M2, 17.1 A LXM05BD17M3X, 17.1 A LXM05BD22N4, 17.1 A LXM05BD28M2, 17.1 A LXM05CD17M3X, 17.1 A LXM05CD22N4, 17.1 A LXM05CD28M2, 17.1 A LXM15LD10N4, 17.1 A LXM15LD13M3, 17.1 A LXM15LD17N4, 17.1 A LXM15LD21M3, 17.1 A LXM32.D18N4
Nominal torque: 39.82 lbf.in (4.5 N.m) LXM15LD21M3 at 230 V single phase, 30.09 lbf.in (3.4 N.m) LXM15LD10N4 at 230 V three phase, 30.09 lbf.in (3.4 N.m) LXM15LD10N4 at 400 V three phase, 30.09 lbf.in (3.4 N.m) LXM15LD10N4 at 480 V three phase, 30.09 lbf.in (3.4 N.m) LXM15LD13M3 at 230 V three phase, 51.33 lbf.in (5.8 N.m) LXM15LD21M3 at 230 V three phase, 35.4 lbf.in (4 N.m) for LXM32.D18N4 6 A at 400 V three phase, 35.4 lbf.in (4 N.m) for LXM32.D18N4 6 A at 480 V three phase, 43.89 lbf.in (4.96 N.m) LXM05AD28M2 at 200...240 V single phase, 43.89 lbf.in (4.96 N.m) LXM05BD28M2 at 200...240 V single phase, 43.89 lbf.in (4.96 N.m) LXM05CD28M2 at 200...240 V single phase, 32.74 lbf.in (3.7 N.m) LXM15LD17N4 at 480 V three phase, 35.4 lbf.in (4 N.m) LXM15LD17N4 at 400 V three phase, 38.94 lbf.in (4.4 N.m) LXM05AD22N4 at 380...480 V three phase, 38.94 lbf.in (4.4 N.m) LXM05BD22N4 at 380...480 V three phase, 38.94 lbf.in (4.4 N.m) LXM05CD22N4 at 380...480 V three phase, 43.89 lbf.in (4.96 N.m) LXM05AD17M3X at 200...240 V three phase, 43.89 lbf.in (4.96 N.m) LXM05BD17M3X at 200...240 V three phase, 43.89 lbf.in (4.96 N.m) LXM05CD17M3X at 200...240 V three phase

Maximum permanent current: 17.1 A
Nominal speed: 4000 rpm for LXM32.D18N4 6 A at 400 V three phase, 4000 rpm for LXM32.D18N4 6 A at 480 V three phase, 1500 rpm LXM05AD28M2 at 200...240 V single phase, 1500 rpm LXM05BD28M2 at 200...240 V single phase, 1500 rpm LXM05CD28M2 at 200...240 V single phase, 2000 rpm LXM15LD21M3 at 230 V single phase, 3000 rpm LXM05AD22N4 at 380...480 V three phase, 3000 rpm LXM05BD22N4 at 380...480 V three phase, 3000 rpm LXM05CD22N4 at 380...480 V three phase, 1500 rpm LXM05AD17M3X at 200...240 V three phase, 1500 rpm LXM05BD17M3X at 200...240 V three phase, 1500 rpm LXM05CD17M3X at 200...240 V three phase, 4500 rpm LXM15LD10N4 at 400 V three phase, 6000 rpm LXM15LD10N4 at 480 V three phase, 2000 rpm LXM15LD21M3 at 230 V three phase, 2500 rpm LXM15LD10N4 at 230 V three phase, 2500 rpm LXM15LD13M3 at 230 V three phase, 4000 rpm LXM15LD17N4 at 400 V three phase, 5000 rpm LXM15LD17N4 at 480 V three phase
Product compatibility: LXM05AD28M2 at 200...240 V single phase, LXM05BD28M2 at 200...240 V single phase, LXM05CD28M2 at 200...240 V single phase, LXM15LD21M3 at 230 V single phase, LXM15LD13M3 at 230 V three phase, LXM15LD10N4 at 400 V three phase, LXM05AD17M3X at 200...240 V three phase, LXM05BD17M3X at 200...240 V three phase, LXM05CD17M3X at 200...240 V three phase, LXM15LD10N4 at 230 V three phase, LXM15LD10N4 at 480 V three phase, LXM15LD21M3 at 230 V three phase, LXM05AD22N4 at 380...480 V three phase, LXM05BD22N4 at 380...480 V three phase, LXM05CD22N4 at 380...480 V three phase, LXM15LD17N4 at 400 V three phase, LXM15LD17N4 at 480 V three phase, LXM32.D18N4 at 400 V three phase, LXM32.D18N4 at 480 V three phase
Second shaft: Without second shaft end
Shaft end: Keyed
Shaft diameter: 0.75 in (19 mm)
Shaft length: 1.57 in (40 mm)
Speed feedback resolution: 131072 points/turn x 4096 turns
Key width: 1.18 in (30 mm)
Feedback type: Multiturn SinCos Hiperface
Motor flange size: 3.94 in (100 mm)
Number of motor stacks: 2
Torque constant: 1.21 N.m/A at 248 F (120 C)
Back emf constant: 77 V/krpm at 248 F (120 C)
Number of motor poles: 8
Rotor inertia: 2.31 kg.cm
Stator resistance: 2.4 Ohm at 68 F (20 C)
Stator inductance: 12.7 mH at 68 F (20 C)
Stator electrical time constant: 5.29 ms at 68 F (20 C)
maximum radial force Fr: 620 N at 4000 rpm, 690 N at 3000 rpm, 790 N at 2000 rpm, 990 N at 1000 rpm
maximum axial force Fa: 0.2 x Fr
Type of cooling: Natural convection
Centring collar diameter: 3.74 in (95 mm)
Centring collar depth: 0.14 in (3.5 mm)
Number of mounting holes: 4
Mounting holes diameter: 0.35 in (9 mm)
Circle diameter of the mounting holes: 4.53 in (115 mm)
