ATV71HU55N4

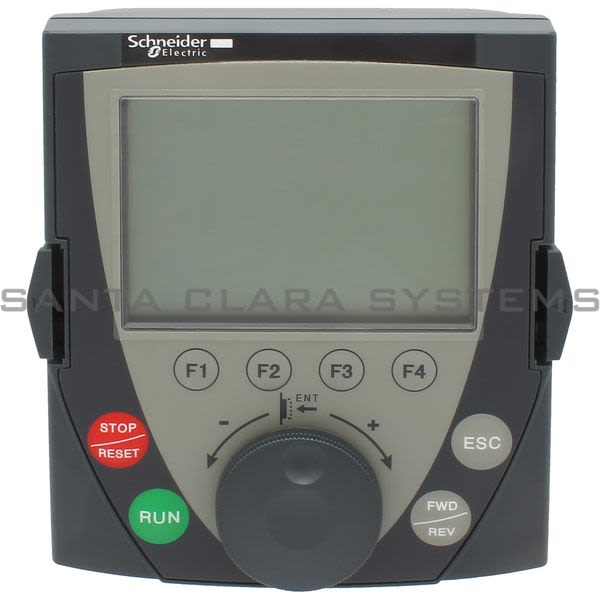

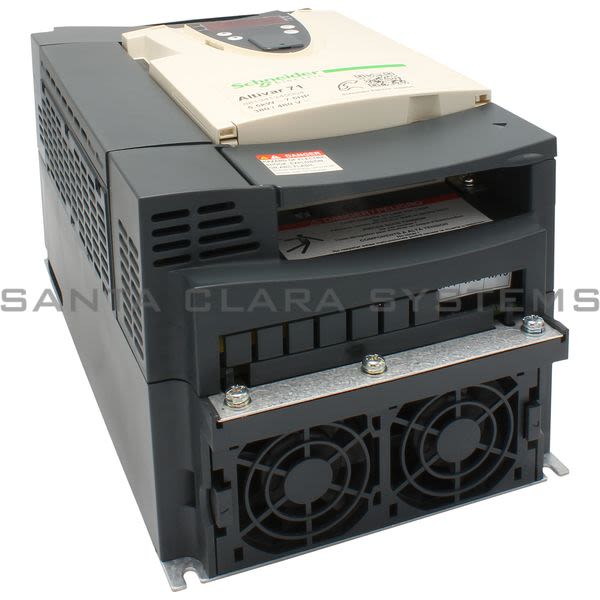

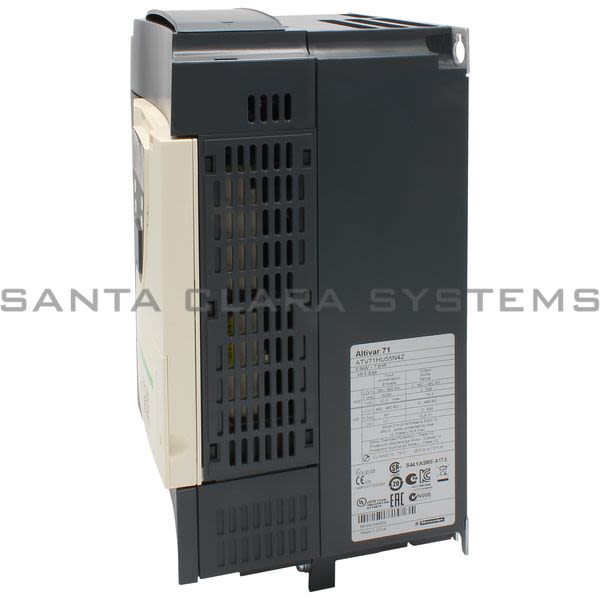

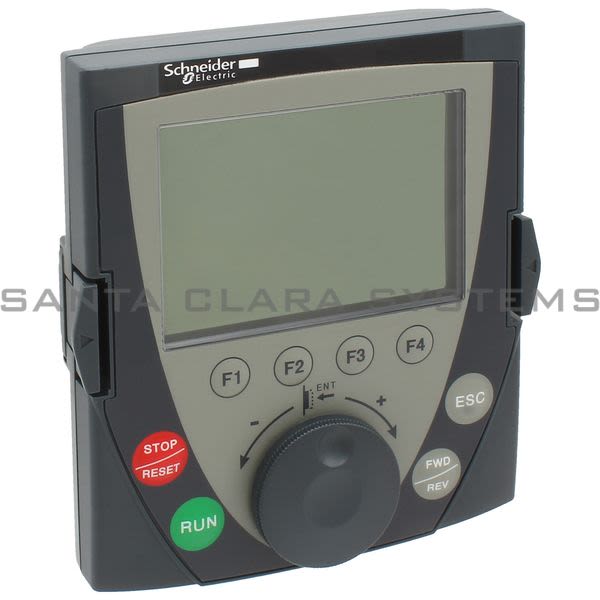

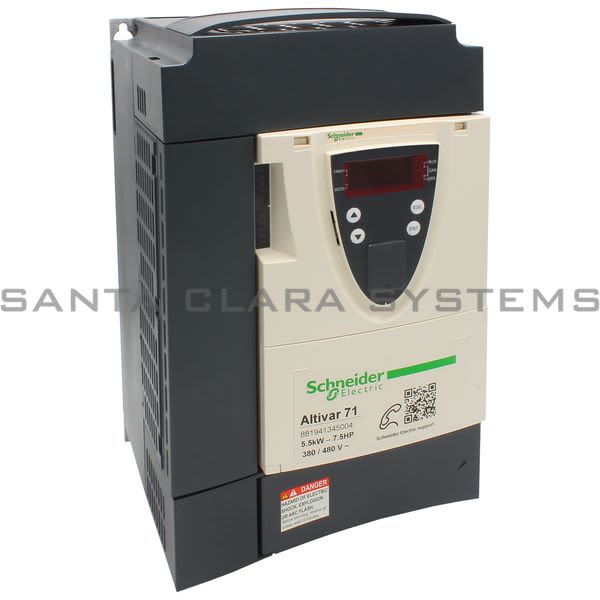

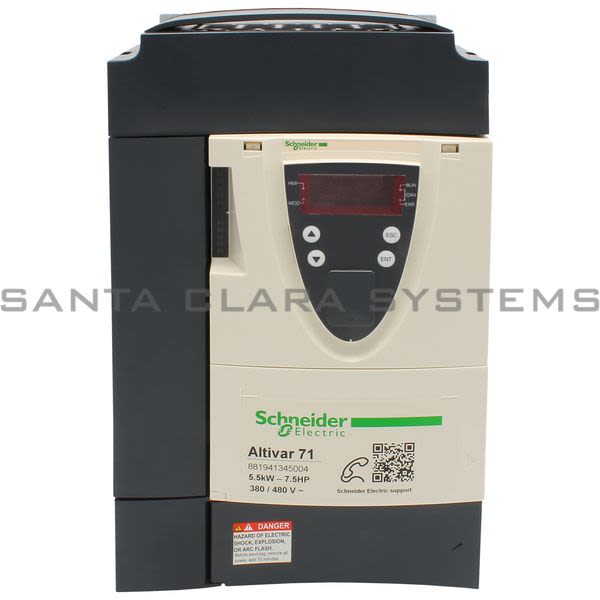

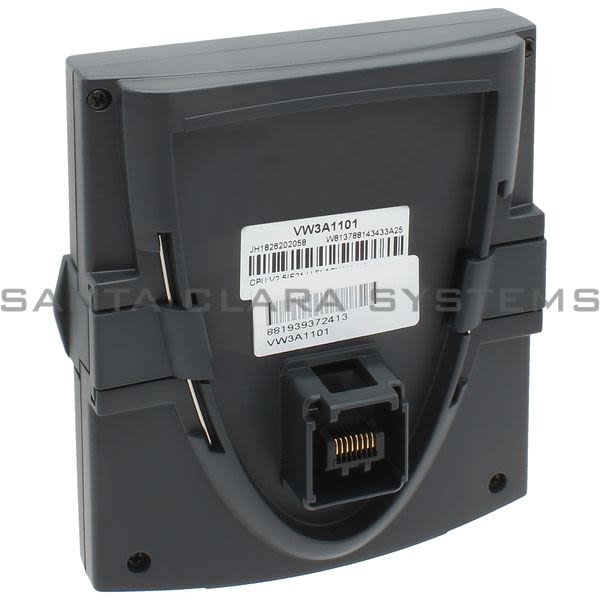

Telemecanique - variable speed drive ATV71 - 5.5kW-7.5HP - 480V - EMC filter-graphic terminal

Current response time:

By 5AM PT on Monday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: variable speed drive ATV71 - 5.5kW-7.5HP - 480V - EMC filter-graphic terminal
Product weight: 12.13 lb(US) (5.5 kg)
Range of product: Altivar 71
IP degree of protection: IP20
Standards: EN/IEC 61800-5-1EN/IEC 61800-3IEC 60721-3-3 class 3C1EN 61800-3 environments 1 category C3UL Type 1IEC 60721-3-3 class 3S2EN 61800-3 environments 2 category C3EN 55011 class A group 2
Width: 6.89 in (175 mm)
Height: 11.61 in (295 mm)
Depth: 7.36 in (187 mm)
Operating altitude: <= 3280.84 ft. (1000 m) without derating3280.84...9842.52 ft. (1000...3000 m) with current derating 1 % per 100 m
Tightening torque: L1/R, L2/S, L3/T, U/T1, V/T2, W/T3, PC/-, PO, PA/+, PA, PB 26.55 lbf.in (3 N.m) / 26.5 lb.inAI1-/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR 5.31 lbf.in (0.6 N.m)
Vibration resistance: 1.5 mm peak to peak (f = 3...13 Hz) conforming to EN/IEC 60068-2-61 gn (f = 13...200 Hz) conforming to EN/IEC 60068-2-6
Shock resistance: 15 gn 11 ms conforming to EN/IEC 60068-2-27
Electrical connection: AI1-/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR terminal 2.5 mm² / AWG 14L1/R, L2/S, L3/T, U/T1, V/T2, W/T3, PC/-, PO, PA/+, PA, PB terminal 6 mm² / AWG 8
Insulation resistance: > 1 mOhm at 500 V DC for 1 minute to earth
motor power kW: 5.5 kWat 380...480 V 3 phases
[Us] rated supply voltage: 380...480 V (- 15...10 %)
Relative humidity: 5...95 % without condensation conforming to IEC 60068-2-35...95 % without dripping water conforming to IEC 60068-2-3
Protection type: Drive against exceeding limit speedDrive against input phase lossDrive break on the control circuitDrive input phase breaksDrive line supply overvoltageDrive line supply undervoltageDrive overcurrent between output phases and earthDrive overheating protectionDrive overvoltages on the DC busDrive short-circuit between motor phasesDrive thermal protectionMotor motor phase breakMotor power removalMotor thermal protection
Response time: <= 100 ms in STO (Safe Torque Off)AO1 2 ms, tolerance +/- 0.5 ms analog output(s)R1A, R1B, R1C 7 ms, tolerance +/- 0.5 ms discrete output(s)R2A, R2B 7 ms, tolerance +/- 0.5 ms discrete output(s)
Switching frequency: 1...16 kHz adjustable4...16 kHz with derating factor
Product destination: Asynchronous motorsSynchronous motors
Noise level: 55.6 dB conforming to 86/188/EEC
Product or component type: Variable speed drive
Supply voltage limits: 323...528 V
Dielectric strength: 3535 V DC between earth and power terminals5092 V DC between control and power terminals
Product specific application: Complex, high-power machines
Supply frequency: 50...60 Hz (- 5...5 %)
Electromagnetic compatibility: Conducted radio-frequency immunity test conforming to IEC 61000-4-6 level 3Electrical fast transient/burst immunity test conforming to IEC 61000-4-4 level 4Electrostatic discharge immunity test conforming to IEC 61000-4-2 level 3Radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3 level 3Voltage dips and interruptions immunity test conforming to IEC 61000-4-111.2/50 µs - 8/20 µs surge immunity test conforming to IEC 61000-4-5 level 3
Component name: ATV71
Network frequency: 47.5...63 Hz
Speed range: 1...100 asynchronous motor in open-loop mode, without speed feedback1...50 synchronous motor in open-loop mode, without speed feedback1...1000 asynchronous motor in closed-loop mode with encoder feedback
Product certifications: CSANOM 117C-TickGOSTUL
Motor power hp: 7.5 hpat 380...480 V 3 phases
Speed accuracy: +/- 0.01 % of nominal speed 0.2 Tn to Tn torque variation in closed-loop mode with encoder feedback+/- 10 % of nominal slip 0.2 Tn to Tn torque variation without speed feedback
Pollution degree: 2 conforming to EN/IEC 61800-5-1
Motor cable length: <= 164.04 ft. (50 m) Shielded cable<= 328.08 ft. (100 m) Unshielded cable
Torque accuracy: +/- 15 % in open-loop mode, without speed feedback+/- 5 % in closed-loop mode with encoder feedback
Transient overtorque: 220 % of nominal motor torque +/- 10 %for 2 s170 % of nominal motor torque +/- 10 %for 60 s every 10 minutes
Phase: 3 phases
Braking torque: <= 150 % with braking or hoist resistor30 % without braking resistor
Line current: 17 Afor 480 V 3 phases 5.5 kW / 7.5 hp20.3 Afor 380 V 3 phases 5.5 kW / 7.5 hp
Synchronous motor control profile: Vector control without speed feedback
EMC filter: Integrated
Regulation loop: Adjustable PI regulator
Ambient air temperature for operation: 14...122 °F (-10...50 °C) without derating
Assembly style: With heat sink

Motor slip compensation: AdjustableNot available in voltage/frequency ratio (2 or 5 points)Automatic whatever the loadSuppressible
Ambient air temperature for storage: -13...158 °F (-25...70 °C)
Apparent power: 13.4 kVAat 380 V 3 phases 5.5 kW / 7.5 hp
Local signaling: 1 LED red presence of drive voltage
prospective line Isc: <= 22 kA, 3 phases
Output voltage: <= power supply voltage
Nominal output current: 11 A at 4 kHz 460 V 3 phases 5.5 kW / 7.5 hp14.3 A at 4 kHz 380 V 3 phases 5.5 kW / 7.5 hp
Insulation: Electrical between power and control
Maximum transient current: 21.5 Afor 60 s 3 phases 5.5 kW / 7.5 hp23.6 Afor 2 s 3 phases 5.5 kW / 7.5 hp
Type of cable: With a NEMA Type1 kit: 3-strand UL 508 cableat 104 °F (40 °C), copper 75 °C PVCWith an IP21 or an IP31 kit: 3-strand IEC cableat 104 °F (40 °C), copper 70 °C PVCWithout mounting kit: 1-strand IEC cableat 113 °F (45 °C), copper 70 °C PVCWithout mounting kit: 1-strand IEC cableat 113 °F (45 °C), copper 90 °C XLPE/EPR
Output frequency: 0.1...599 Hz
Nominal switching frequency: 4 kHz
Supply: Internal supply for reference potentiometer (1 to 10 kOhm), 10.5 V DC +/- 5 %, <= 10 mA for overload and short-circuit protectionInternal supply, 24 V DC, voltage limits 21...27 V, <= 200 mA for overload and short-circuit protection
Asynchronous motor control profile: Sensorless flux vector control (SFVC) (voltage or current vector)Voltage/frequency ratio (2 or 5 points)ENA (Energy adaptation) system for unbalanced loadsFlux vector control (FVC) with sensor (current vector)
Analogue input number: 2
Type of polarization: No impedance Modbus
Analogue input type: AI1-/Al1+ bipolar differential voltage +/- 10 V DC, input voltage 24 V max, resolution 11 bits + signAI2 software-configurable current 0...20 mA, impedance 242 Ohm, resolution 11 bitsAI2 software-configurable voltage 0...10 V DC, input voltage 24 V max, impedance 30000 Ohm, resolution 11 bits
Sampling duration: AI1-/Al1+ 2 ms, +/- 0.5 ms analog input(s)Al2 2 ms, +/- 0.5 ms analog input(s)LI1...LI5 2 ms, +/- 0.5 ms discrete input(s)LI6 (if configured as logic input) 2 ms, +/- 0.5 ms discrete input(s)
Accuracy: AI1-/Al1+ +/- 0.6 % for a temperature variation 60 °CAI2 +/- 0.6 % for a temperature variation 60 °CAO1 +/- 1 % for a temperature variation 60 °C
Linearity error: AI1-/Al1+, AI2 +/- 0.15 % of maximum valueAO1 +/- 0.2 %
Analogue output number: 1
Analogue output type: AO1 software-configurable current 0...20 mA, impedance 500 Ohm, resolution 10 bitsAO1 software-configurable logic output 10 V <= 20 mAAO1 software-configurable voltage 0...10 V DC, impedance 470 Ohm, resolution 10 bits
Discrete output number: 2
Discrete output type: R1A, R1B, R1C configurable relay logic NO/NC, electrical durability 100000 cyclesR2A, R2B configurable relay logic NO, electrical durability 100000 cycles
Minimum switching current: Configurable relay logic 3 mAat 24 V DC
Maximum switching current: R1, R2 on resistive load, 5 A at 250 V AC, cos phi = 1,R1, R2 on resistive load, 5 A at 30 V DC, cos phi = 1,R1, R2 on inductive load, 2 A at 250 V AC, cos phi = 0.4,R1, R2 on inductive load, 2 A at 30 V DC, cos phi = 0.4,
Discrete input number: 7
Discrete input type: LI6: switch-configurable 24 V DC with level 1 PLC, impedance: 3500 OhmPWR: safety input 24 V DC, impedance: 1500 Ohm conforming to ISO 13849-1 level dLI1...LI5: programmable 24 V DC with level 1 PLC, impedance: 3500 OhmLI6: switch-configurable PTC probe 0...6, impedance: 1500 Ohm
Discrete input logic: LI1...LI5 positive logic (source), < 5 V (state 0), > 11 V (state 0)LI1...LI5 negative logic (sink), > 16 V (state 0), < 10 V (state 0)LI6 (if configured as logic input) positive logic (source), < 5 V (state 0), > 11 V (state 0)LI6 (if configured as logic input) negative logic (sink), > 16 V (state 0), < 10 V (state 0)
Acceleration and deceleration ramps: S, U or customizedLinear adjustable separately from 0.01 to 9000 sAutomatic adaptation of ramp if braking capacity exceeded, by using resistor
Braking to standstill: By DC injection
Frequency resolution: Analog input 0.024/50 HzDisplay unit 0.1 Hz
Communication port protocol: ModbusCANopen
Connector type: 1 RJ45 Modbus on front face1 RJ45 Modbus on terminalMale SUB-D 9 on RJ45 CANopen
Physical interface: 2-wire RS 485 Modbus
Transmission frame: RTU Modbus
Transmission rate: 20 kbps, 50 kbps, 125 kbps, 250 kbps, 500 kbps, 1 Mbps CANopen4800 bps, 9600 bps, 19200 bps, 38.4 Kbps Modbus on terminal9600 bps, 19200 bps Modbus on front face
Data format: 8 bits, 1 stop, even parity Modbus on front face8 bits, odd even or no configurable parity Modbus on terminal
Number of addresses: 1...247 Modbus1...127 CANopen
Method of access: Slave CANopen
Marking: CE
Operating position: Vertical +/- 10 degree
Functionality: Full
Specific application: Other applications
Option card: CC-Link communication cardController inside programmable cardDeviceNet communication cardEthernet/IP communication cardFipio communication cardI/O extension cardInterbus-S communication cardInterface card for encoderModbus Plus communication cardModbus TCP communication cardModbus/Uni-Telway communication cardOverhead crane cardProfibus DP communication cardProfibus DP V1 communication card
