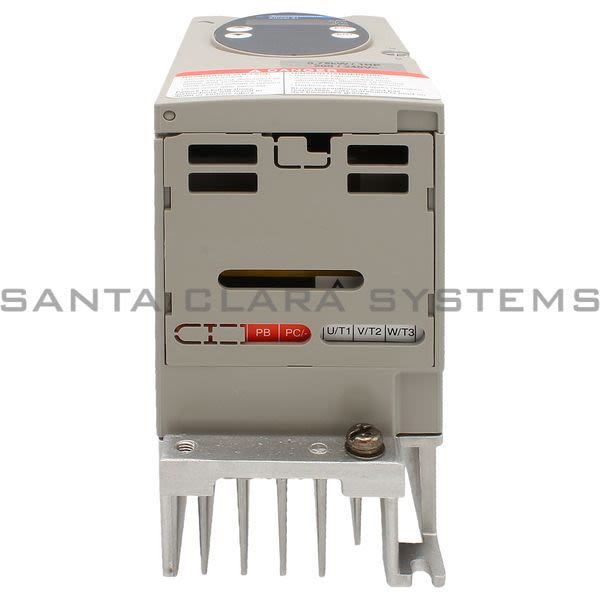

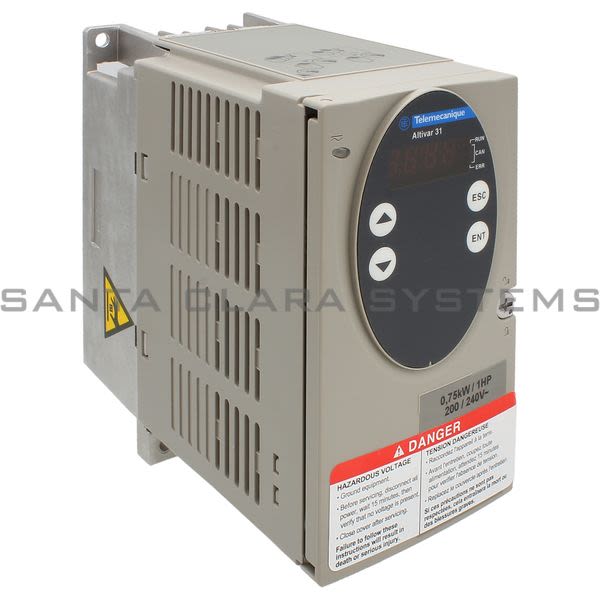

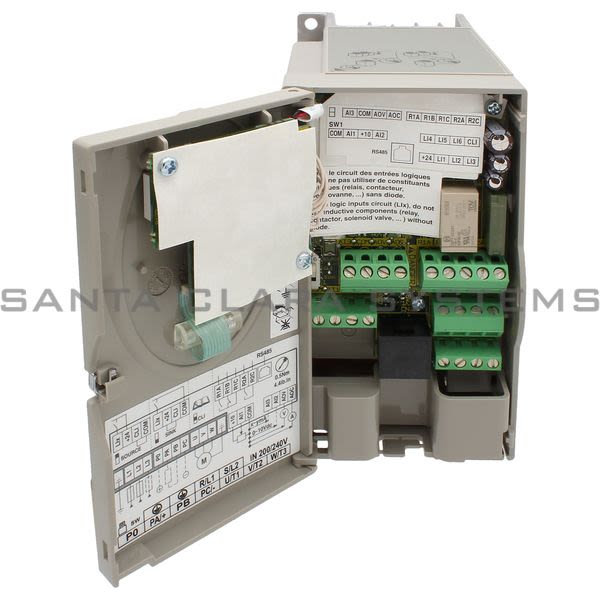

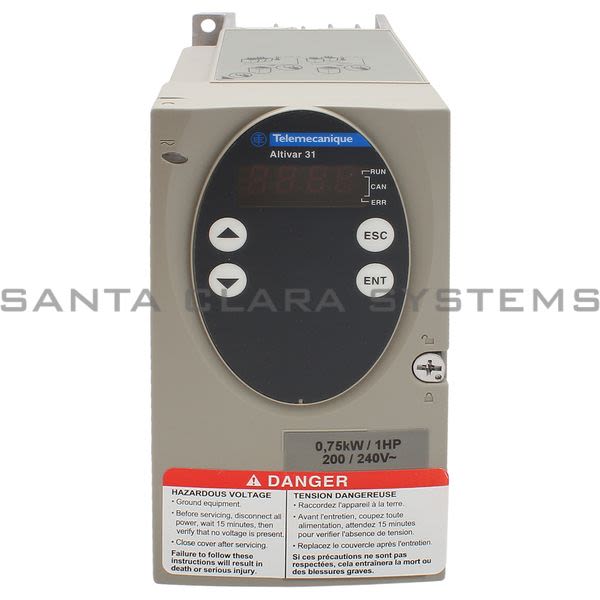

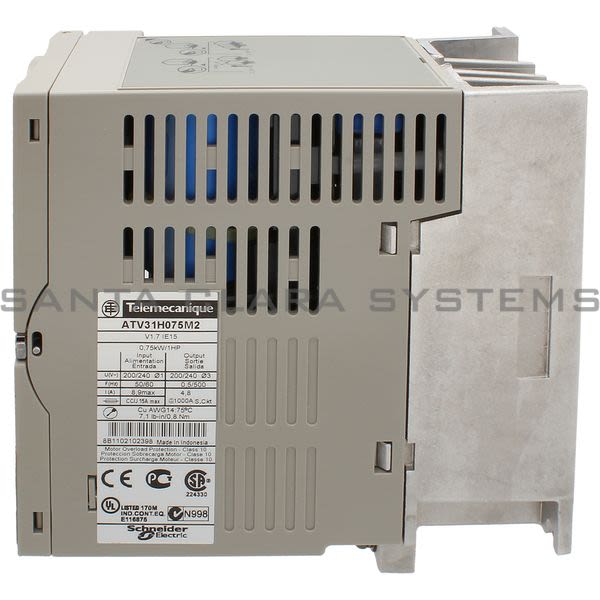

ATV31H075M2

Telemecanique - variable speed drive ATV31 - 0.75kW - 240V 1-phase supply - EMC filter - IP20

Current response time:

11 Minutes 58 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: variable speed drive ATV31 - 0.75kW - 240V 1-phase supply - EMC filter - IP20
Product weight: 23.59 lb(US) (10.7 kg)
Range of product: Altivar 31
IP degree of protection: IP55
Standards: EN 50178
Protective treatment: TC
Operating altitude: <= 3280.84 ft. (1000 m) without derating, >= 3280.84 ft. (1000 m) with current derating 1 % per 100 m
Tightening torque: 5.31 lbf.in (0.6 N.m) Al1, Al2, Al3, AOV, AOC, R1A, R1B, R1C, R2A, R2B, LI1...LI6, 7.08 lbf.in (0.8 N.m) L1, L2, L3, U, V, W, PA, PB, PA/+, PC/-
Vibration resistance: 1 gn 13...150 Hz EN/IEC 60068-2-6, 1.5 mm 3...13 Hz EN/IEC 60068-2-6
Shock resistance: 15 gn 11 ms EN/IEC 60068-2-27
Electrical connection: Terminal 0 in (2.5 mm) AWG 14 Al1, Al2, Al3, AOV, AOC, R1A, R1B, R1C, R2A, R2B, LI1...LI6, Terminal 0 in (2.5 mm) AWG 14 L1, L2, L3, U, V, W, PA, PB, PA/+, PC/-
Insulation resistance: >= 500 mOhm 500 V DC for 1 minute
motor power kW: 4 kW
[Us] rated supply voltage: 380...500 V - 15...10 %
Relative humidity: 5...95 % without condensation IEC 60068-2-3, 5...95 % without dripping water IEC 60068-2-3
Protection type: Input phase breaks drive, Line supply overvoltage and undervoltage safety circuits drive, Line supply phase loss safety function, for three phases supply drive, Motor phase breaks drive, Overcurrent between output phases and earth (on power up only) drive, Overheating protection drive, Short-circuit between motor phases drive, Thermal protection motor
Response time: 8 ms analog AOV, AOC, 8 ms discrete R1A, R1B, R1C, R2A, R2B
Switching frequency: 2...16 kHz adjustable
Supply voltage limits: 323...550 V
Dielectric strength: 2410 V DC between earth and power terminals, 3400 V AC between control and power terminals
Product or component type: Variable speed drive
Network frequency limits: 47.5...63 Hz
Electromagnetic compatibility: 1.2/50 s - 8/20 s surge immunity test level 3 IEC 61000-4-5, Electrical fast transient/burst immunity test level 4 IEC 61000-4-4, Electrostatic discharge immunity test level 3 IEC 61000-4-2, Radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3
Product destination: Asynchronous motors
Speed drive output frequency: 0.5...500 Hz
Product specific application: Simple machine
Nominal switching frequency: 4 kHz
Product certifications: CSA, C-Tick, N998, UL
Assembly style: Enclosed
Pollution degree: 2
Component name: ATV31
Braking torque: 100 % with braking resistor continuously, 30 % without braking resistor, <= 150 % with braking resistor 60 s
EMC filter: Integrated
Regulation loop: Frequency PI regulator
Motor slip compensation: Automatic whatever the load, Adjustable, Suppressible
Supply frequency: 50...60 Hz - 5...5 %
Output voltage: <= power supply voltage
Phase: 3 phases
Ambient air temperature for storage: -13...158 F (-25...70 C)
Ambient air temperature for operation: 14...122 F (-10...50 C) without derating with protective cover on top of the drive, 14...140 F (-10...60 C) with derating factor without protective cover on top of the drive

Motor power hp: 5 hp
Insulation: Electrical between power and control
Line current: 10.6 A 500 V 1 kA, 13.9 A 380 V 1 kA
Supply: Internal supply for logic inputs 19...30 V 100 mA overload protection, Internal supply for logic inputs 19...30 V 100 mA short-circuit protection, Internal supply for reference potentiometer 10...10.8 V 10 mA overload protection, Internal supply for reference potentiometer 10...10.8 V 10 mA short-circuit protection
Apparent power: 9.2 kVA
Analogue input type: Configurable current AI3 0...20 mA 250 Ohm, Configurable voltage AI1 0...10 V 30 V max 30000 Ohm, Configurable voltage AI2 +/- 10 V 30 V max 30000 Ohm
prospective line Isc: 5 kA
Sampling duration: 4 ms LI1...LI6 discrete, 8 ms AI1, AI2, AI3 analog
Nominal output current: 9.5 A 4 kHz
Maximum transient current: 14.3 A 60 s
Linearity error: +/- 0.2 % output
power dissipation in W: 150 W at nominal load
Analogue output number: 2
Speed range: 1...50
Analogue output type: Configurable current AOC 0...20 mA 800 Ohm 8 bits, Configurable voltage AOV 0...10 V 470 Ohm 8 bits
Transient overtorque: Of nominal motor torque
Discrete input logic: Logic input not wired LI1...LI4 < 13 V, Negative logic (source) LI1...LI6 > 19 V, Positive logic (source) LI1...LI6 < 5 V > 11 V
Asynchronous motor control profile: Factory set : constant torque, Sensorless flux vector control with PWM type motor control signal
Discrete output number: 2
Analogue input number: 3
Discrete output type: Configurable relay logic R1A, R1B, R1C 1 NO + 1 NC 100000 cycles, Configurable relay logic R2A, R2B NC 100000 cycles
Minimum switching current: 10 mA 5 V DC R1-R2
Maximum switching current: 2 A 250 V AC inductive cos phi = 0.4 L/R = 7 ms R1-R2, 2 A 30 V DC inductive cos phi = 0.4 L/R = 7 ms R1-R2, 5 A 250 V AC resistive cos phi = 1 L/R = 0 ms R1-R2, 5 A 30 V DC resistive cos phi = 1 L/R = 0 ms R1-R2
Discrete input number: 6
Discrete input type: Programmable LI1...LI6 24 V 0...100 mA PLC 3500 Ohm
Acceleration and deceleration ramps: S, U or customized, Linear adjustable separately from 0.1 to 999.9 s
Braking to standstill: By DC injection
Local signaling: 1 LED red drive voltage, Four 7-segment display units CANopen bus status
Time constant: 5 ms for reference change
Frequency resolution: 0.1 Hz display unit, 0.1...100 Hz analog input
Communication port protocol: CANopen, Modbus
Connector type: 1 RJ45 CANopen via VW3 CANTAP2 adaptor, 1 RJ45 Modbus
Physical interface: RS485 multidrop serial link Modbus
Transmission frame: RTU Modbus
Transmission rate: 10, 20, 50, 125, 250, 500 kbps or 1 Mbps CANopen via VW3 CANTAP2 adaptor, 4800, 9600 or 19200 bps Modbus
Number of addresses: 1...127 CANopen via VW3 CANTAP2 adaptor, 1...247 Modbus
Number of drive: 127 CANopen via VW3 CANTAP2 adaptor, 31 Modbus
Marking: CE
Operating position: Vertical +/- 10 degree
