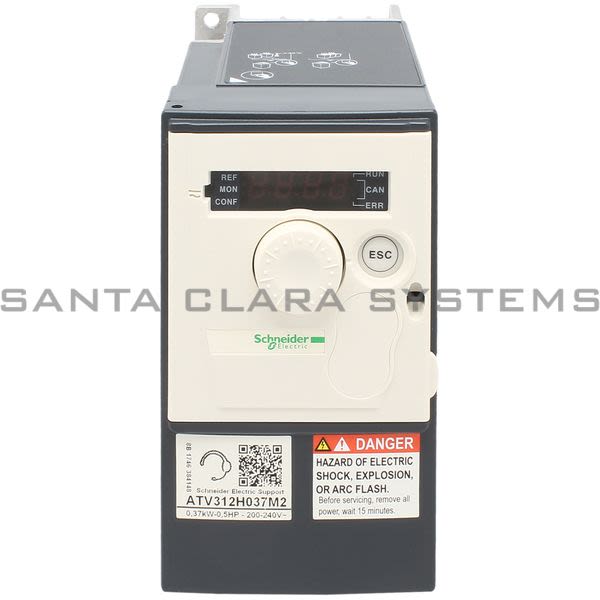

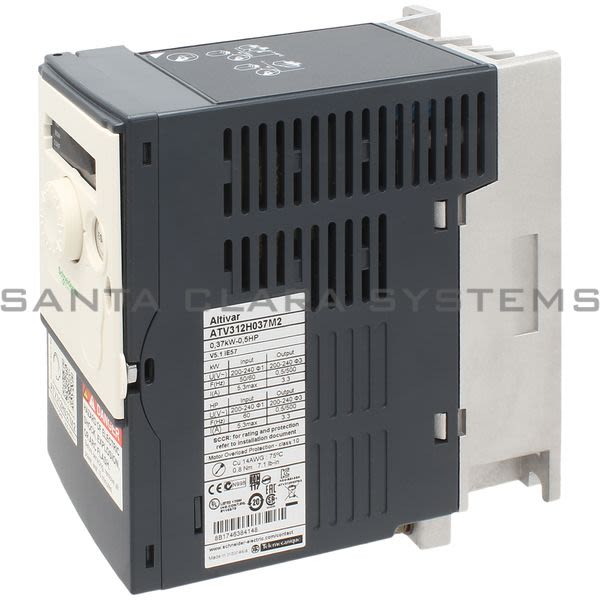

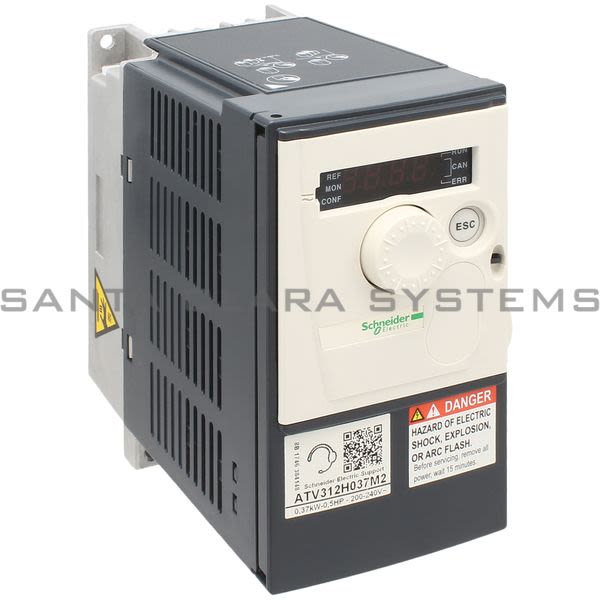

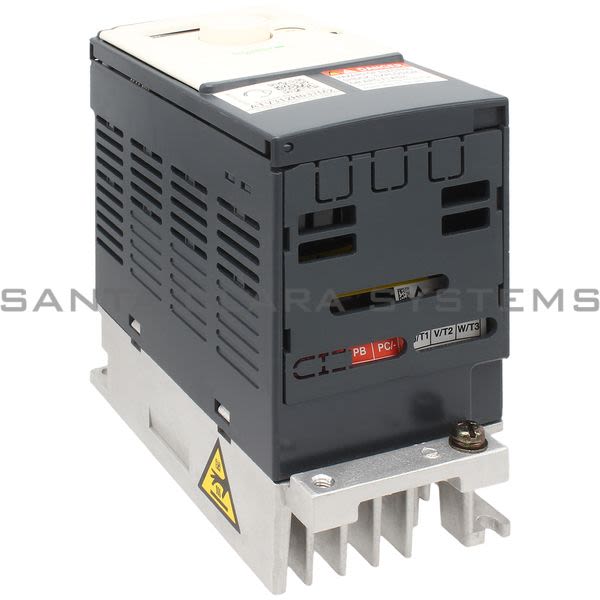

Telemecanique ATV312H037M2 variable speed drive ATV312 - 0.37kW - 1kVA - 41 W - 200..240 V - 1-phase supply Product Image

ATV312H037M2

Telemecanique - variable speed drive ATV312 - 0.37kW - 1kVA - 41 W - 200..240 V - 1-phase supply

Current response time:

17 Minutes 46 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: variable speed drive ATV312 - 0.37kW - 1kVA - 41 W - 200..240 V - 1-phase supply
Product weight: 3.31 lb(US) (1.5 kg)
Range of product: Altivar 312
IP degree of protection: IP20 on upper part without cover plate, IP21 on connection terminals, IP31 on upper part, IP41 on upper part
Standards: IEC 61800-3, IEC 61800-5-1
Width: 2.83 in (72 mm)
Height: 5.71 in (145 mm)
Depth: 5.2 in (132 mm)
Protective treatment: TC
Operating altitude: <= 3280.84 ft. (1000 m) without derating, 3280.84...6561.68 ft. (1000...2000 m) with current derating 1 % per 100 m
Tightening torque: 5.31 lbf.in (0.6 N.m) Al1, Al2, Al3, AOV, AOC, R1A, R1B, R1C, R2A, R2B, LI1...LI6, 7.08 lbf.in (0.8 N.m) L1, L2, L3, U, V, W, PA, PB, PA/+, PC/-
Vibration resistance: 1.5 mm (f = 3...13 Hz) conforming to EN/IEC 60068-2-6, 1 gn (f = 13...150 Hz) conforming to EN/IEC 60068-2-6
Shock resistance: 15 gn 11 ms conforming to EN/IEC 60068-2-27
Electrical connection: Al1, Al2, Al3, AOV, AOC, R1A, R1B, R1C, R2A, R2B, LI1...LI6 terminal 0 in (2.5 mm) AWG 14, L1, L2, L3, U, V, W, PA, PB, PA/+, PC/- terminal 0 in (2.5 mm) AWG 14
Insulation resistance: >= 500 mOhmat 500 V DC for 1 minute
motor power kW: 0.37 kW
[Us] rated supply voltage: 200...240 V (- 15...10 %)
Relative humidity: 5...95 % without condensation conforming to IEC 60068-2-3, 5...95 % without dripping water conforming to IEC 60068-2-3
Protection type: Input phase breaks drive, Line supply overvoltage and undervoltage safety circuits drive, Line supply phase loss safety function, for three phases supply drive, Motor phase breaks drive, Overcurrent between output phases and earth (on power up only) drive, Overheating protection drive, Short-circuit between motor phases drive, Thermal protection motor
Response time: AOV, AOC 8 ms analog, R1A, R1B, R1C, R2A, R2B 8 ms discrete
Switching frequency: 2...16 kHz adjustable
Supply voltage limits: 170...264 V
Dielectric strength: 2040 V DC between earth and power terminals, 2880 V AC between control and power terminals
Product or component type: Variable speed drive
Network frequency: 47.5...63 Hz
Electromagnetic compatibility: Electrical fast transient/burst immunity test conforming to IEC 61000-4-4 level 4, Electrostatic discharge immunity test conforming to IEC 61000-4-2 level 3, Radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3 level 3, 1.2/50 s - 8/20 s surge immunity test conforming to IEC 61000-4-5 level 3
Product destination: Asynchronous motors
prospective line Isc: 1 kA
Product specific application: Simple machine
Continuous output current: 3.3 A at 4 kHz
Product certifications: GOST, CSA, NOM, DNV, UL, C-Tick
Assembly style: With heat sink
Output frequency: 0...500 kHz
Pollution degree: 2
Component name: ATV312
Nominal switching frequency: 4 kHz
Motor power hp: 0.5 hp
Transient overtorque: 170...200 % of nominal motor torque
Braking torque: 100 % with braking resistor continuously, 150 % without braking resistor, 150 % with braking resistor for 60 s
Supply frequency: 50...60 Hz (- 5...5 %)
Regulation loop: Frequency PI regulator
Ambient air temperature for storage: -13...158 F (-25...70 C)

Phase: Single phase
Motor slip compensation: Automatic whatever the load, Adjustable, Suppressible
Ambient air temperature for operation: 14...122 F (-10...50 C) without derating with protective cover on top of the drive, 14...140 F (-10...60 C) with derating factor without protective cover on top of the drive
Line current: 4.4 Afor 240 V, 5.3 Afor 200 V, 1 kA
Output voltage: <= power supply voltage
EMC filter: Integrated
Apparent power: 1 kVA
Insulation: Electrical between power and control
Maximum transient current: 5 Afor 60 s
Analogue input number: 3
power dissipation in W: 41 W at nominal load
Analogue input type: AI1 configurable voltage 0...10 V, input voltage 30 V max, impedance 30000 Ohm, AI2 configurable voltage +/- 10 V, input voltage 30 V max, impedance 30000 Ohm, AI3 configurable current 0...20 mA, impedance 250 Ohm
Speed range: 1...50
Sampling duration: AI1, AI2, AI3 8 ms analog, LI1...LI6 4 ms discrete
Asynchronous motor control profile: Factory set : constant torque, Sensorless flux vector control with PWM type motor control signal
Linearity error: +/- 0.2 % output
Supply: Internal supply for logic inputsat 19...30 V, <= 100 mA for overload and short-circuit protection, Internal supply for reference potentiometer (2.2 to 10 kOhm)at 10...10.8 V, <= 10 mA for overload and short-circuit protection
Analogue output number: 1
Communication port protocol: Modbus, CANopen
Analogue output type: AOC configurable current 0...20 mA, impedance 800 Ohm, resolution 8 bits, AOV configurable voltage 0...10 V, impedance 470 Ohm, resolution 8 bits
Discrete input logic: (LI1...LI4) logic input not wired, < 13 V (state 1), (LI1...LI6) negative logic (source), > 19 V (state 0), (LI1...LI6) positive logic (source), < 5 V (state 0), > 11 V (state 1)
Option card: CANopen daisy chain communication card, DeviceNet communication card, Fipio communication card, Modbus TCP communication card, Profibus DP communication card
Discrete output number: 2
Discrete output type: (R1A, R1B, R1C) configurable relay logic 1 NO + 1 NC, electrical durability 100000 cycles, (R2A, R2B) configurable relay logic NC, electrical durability 100000 cycles
Minimum switching current: R1-R2 10 mAat 5 V DC
Maximum switching current: R1-R2 on inductive load, 2 A at 250 V AC, (cos phi = 0.4, and L/R = 7 ms), R1-R2 on inductive load, 2 A at 30 V DC, (cos phi = 0.4, and L/R = 7 ms), R1-R2 on resistive load, 5 A at 250 V AC, (cos phi = 1, and L/R = 0 ms), R1-R2 on resistive load, 5 A at 30 V DC, (cos phi = 1, and L/R = 0 ms)
Discrete input number: 6
Discrete input type: (LI1...LI6) programmable, 24 V 0...100 mA with PLC, impedance 3500 Ohm
Acceleration and deceleration ramps: S, U or customized, Linear adjustable separately from 0.1 to 999.9 s
Braking to standstill: By DC injection
Local signaling: 1 LED red drive voltage, Four 7-segment display units CANopen bus status
Time constant: 5 ms for reference change
Frequency resolution: Analog input 0.1...100 Hz, Display unit 0.1 Hz
Connector type: 1 RJ45 Modbus/CANopen
Physical interface: RS485 multidrop serial link
Transmission frame: RTU
Transmission rate: 10, 20, 50, 125, 250, 500 kbps or 1 Mbps CANopen, 4800, 9600 or 19200 bps Modbus
Number of addresses: 1...247 Modbus, 1...127 CANopen
Number of drive: 127 CANopen, 31 Modbus
Marking: CE
Operating position: Vertical +/- 10 degree
