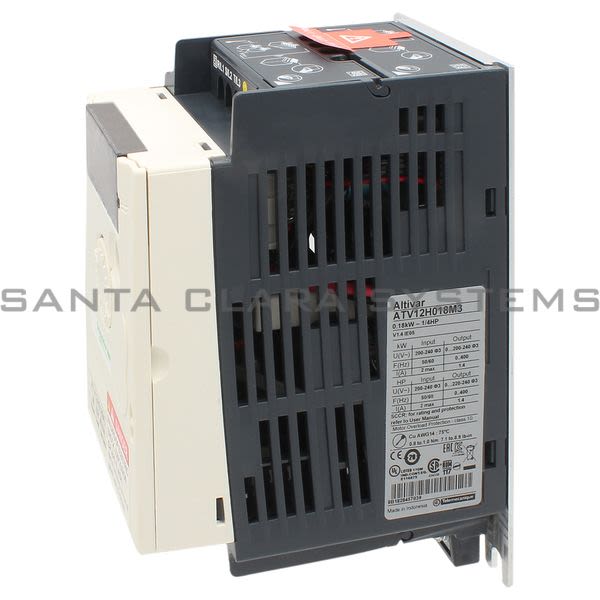

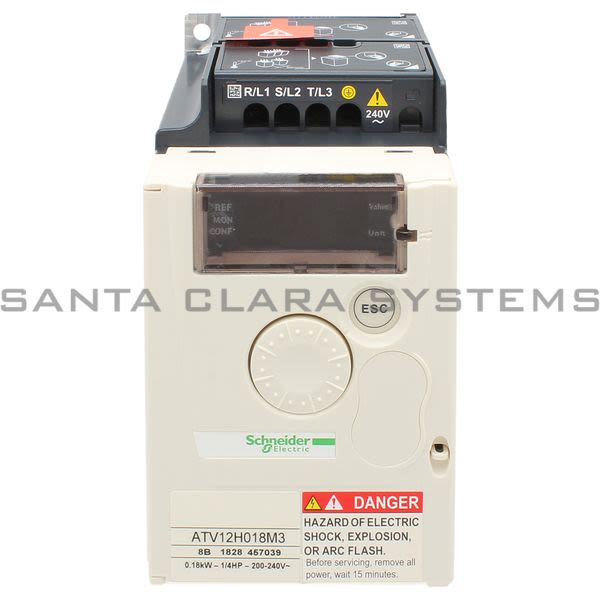

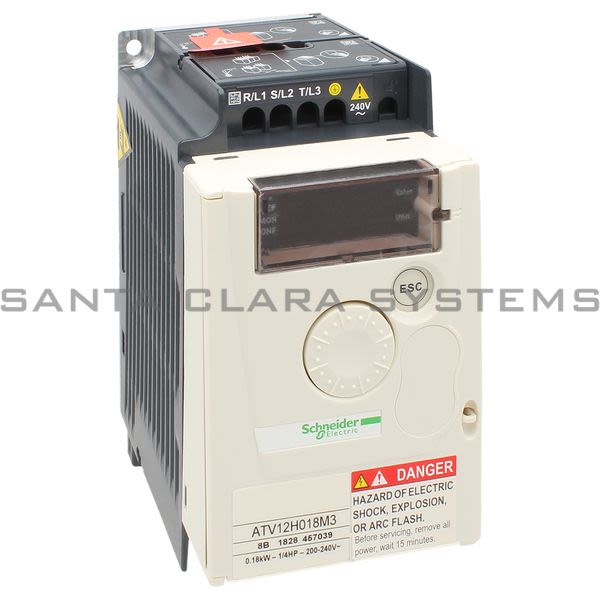

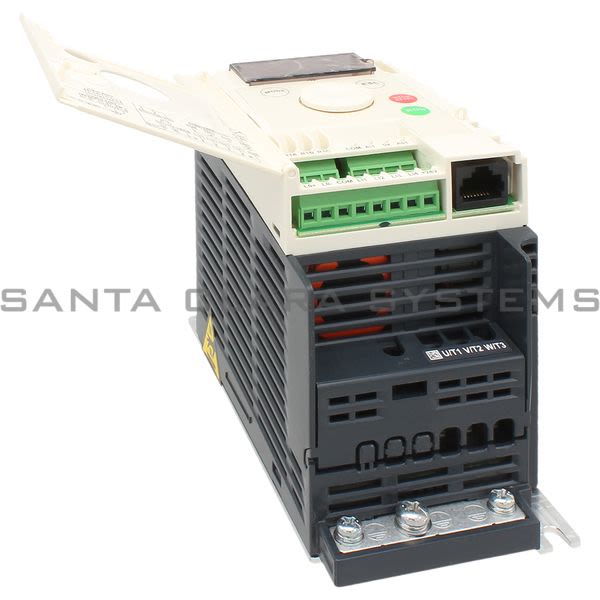

ATV12H018M3

Telemecanique - variable speed drive ATV12 - 0.18kW - 0.25hp - 200..240V - 3ph

Current response time:

11 Minutes 43 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: variable speed drive ATV12 - 0.18kW - 0.25hp - 200..240V - 3ph
Product weight: 1.54 lb(US) (0.7 kg)
Range of product: Altivar 12
IP degree of protection: IP20 without blanking plate on upper part
Width: 2.83 in (72 mm)
Height: 5.63 in (143 mm)
Depth: 4.02 in (102.2 mm)
Operating altitude: > 3280.84...9842.52 ft. (> 1000...3000 m) with current derating 1 % per 100 m, <= 3280.84 ft. (1000 m) without derating
Tightening torque: 7.08 lbf.in (0.8 N.m)
Vibration resistance: 1 gn EN/IEC 60068-2-6 13...200 Hz, 1.5 mm peak to peak EN/IEC 60068-2-6 3...13 Hz drive unmounted on symmetrical DIN rail
Shock resistance: 15 gn EN/IEC 60068-2-27 11 ms
Electrical connection: Terminal 3.5 mm AWG 12 L1, L2, L3, U, V, W, PA, PC
motor power kW: 0.18 kW
[Us] rated supply voltage: 200...240 V - 15...10 %
Relative humidity: 5...95 % without condensation IEC 60068-2-3, 5...95 % without dripping water IEC 60068-2-3
Protection type: Against input phase loss in three-phase, Thermal motor protection via the drive by continuous calculation of It, Line supply overvoltage, Line supply undervoltage, Overcurrent between output phases and earth, Overheating protection, Short-circuit between motor phases
Switching frequency: 2...16 kHz adjustable, 4...16 kHz with derating factor
Supply frequency: 50/60 Hz +/- 5 %
Electromagnetic compatibility: Immunity to conducted disturbances level 3 EN/IEC 61000-4-6, Surge immunity test level 3 EN/IEC 61000-4-5, Voltage dips and interruptions immunity test EN/IEC 61000-4-11, Electrical fast transient/burst immunity test level 4 EN/IEC 61000-4-4, Electrostatic discharge immunity test level 3 EN/IEC 61000-4-2, Radiated radio-frequency electromagnetic field immunity test level 3 EN/IEC 61000-4-3
Product or component type: Variable speed drive
Connector type: 1 RJ45 Modbus on front face
Electromagnetic emission: Radiated emissions environment 1 category C2 EN/IEC 61800-3 2...16 kHz shielded motor cable, Conducted emissions with additional EMC filter environment 1 category C2 EN/IEC 61800-3 4...12 kHz shielded motor cable, Conducted emissions with additional EMC filter environment 2 category C3 EN/IEC 61800-3 4...12 kHz shielded motor cable
Product destination: Asynchronous motors
Physical interface: 2-wire RS 485 Modbus
Product certifications: CSA, UL, C-Tick, GOST, NOM
Product specific application: Simple machine
Transmission frame: RTU Modbus
Assembly style: On base plate
Transmission rate: 4800 bit/s, 9600 bit/s, 19200 bit/s, 38400 bit/s
Component name: ATV12
Number of addresses: 1...247 Modbus
Quantity per set: Set of 1
Communication service: Read holding registers (03) 29 words, Write single register (06) 29 words, Write multiple registers (16) 27 words, Read/write multiple registers (23) 4/4 words, Read device identification (43)
Ambient air temperature for storage: -13...158 F (-25...70 C)
EMC filter: Without EMC filter
prospective line Isc: <= 5 kA
Ambient air temperature for operation: 14...104 F (-10...40 C) protective cover from the top of the drive removed, 104...140 F (40...60 C) with current derating 2.2 % per C
Built-in fan: Without
Continuous output current: 1.4 A 4 kHz

Phase: 3 phases
Maximum transient current: 2.1 A 60 s
Speed drive output frequency: 0.5...400 Hz
Nominal switching frequency: 4 kHz
Motor power hp: 0.25 hp
Communication port protocol: Modbus
Braking torque: Up to 70 % of nominal motor torque without braking resistor
Line current: 2 A 200 V, 1.7 A 240 V
Motor slip compensation: Preset in factory, Adjustable
Speed range: 1...20
Output voltage: 200...240 V 3 phases
Transient overtorque: 150...170 % of nominal motor torque depending on drive rating and type of motor
Asynchronous motor control profile: Quadratic voltage/frequency ratio, Voltage/frequency ratio (V/f), Sensorless flux vector control
Insulation: Electrical between power and control
Noise level: 0 dB
Supply: Internal supply for reference potentiometer 5 V DC 4.75...5.25 V 10 mA overload and short-circuit protection, Internal supply for logic inputs 24 V DC 20.4...28.8 V 100 mA overload and short-circuit protection
Analogue input number: 1
Analogue input type: Configurable voltage AI1 0...10 V 30 kOhm, Configurable voltage AI1 0...5 V 30 kOhm, Configurable current AI1 0...20 mA 250 Ohm
Discrete input number: 4
Discrete input type: Programmable LI1...LI4 24 V 18...30 V
Discrete input logic: Negative logic (sink) > 16 V < 10 V 3.5 kOhm, Positive logic (source) 0...< 5 V > 11 V
Sampling duration: 20 ms +/- 1 ms logic input, 10 ms analogue input
Linearity error: +/- 0.3 % of maximum value analogue input
Analogue output number: 1
Analogue output type: Software-configurable voltage AO1 0...10 V 470 Ohm 8 bits, Software-configurable current AO1 0...20 mA 800 Ohm 8 bits
Discrete output number: 2
Discrete output type: Logic output LO+, LO-, Protected relay output R1A, R1B, R1C 1 C/O
Minimum switching current: 5 mA 24 V DC logic relay
Maximum switching current: 2 A 250 V AC inductive cos phi = 0.4 L/R = 7 ms logic relay, 2 A 30 V DC inductive cos phi = 0.4 L/R = 7 ms logic relay, 3 A 250 V AC resistive cos phi = 1 L/R = 0 ms logic relay, 4 A 30 V DC resistive cos phi = 1 L/R = 0 ms logic relay
Acceleration and deceleration ramps: U, Linear from 0 to 999.9 s, S
Braking to standstill: By DC injection <= 30 s
Frequency resolution: 0.1 Hz display unit, Converter A/D, 10 bits analog input
Time constant: 20 ms +/- 1 ms for reference change
Marking: CE
Operating position: Vertical +/- 10 degree
Specific application: Commercial equipment
Discrete and process manufacturing: Commercial equipment : mixer, Commercial equipment : other application, Textile : ironing
Power range: 0...0.5 kW at 200...240 V 3 phases
Motor starter type: Variable speed drive
