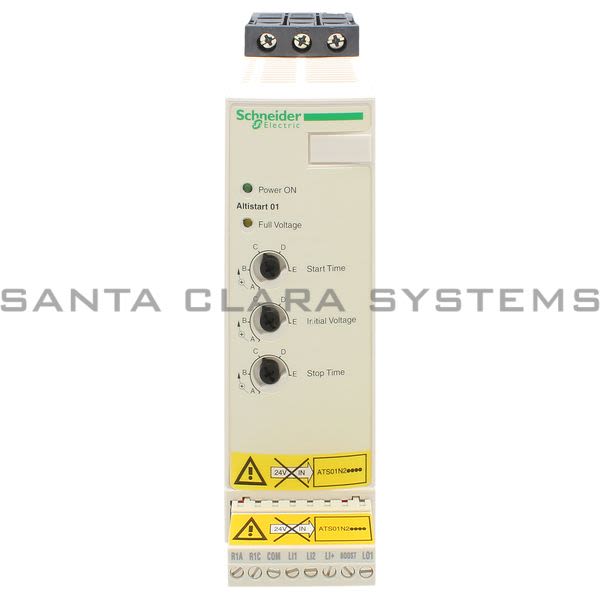

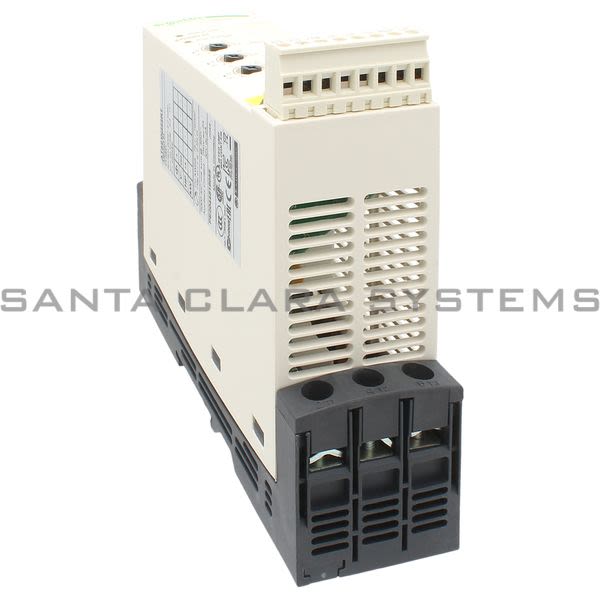

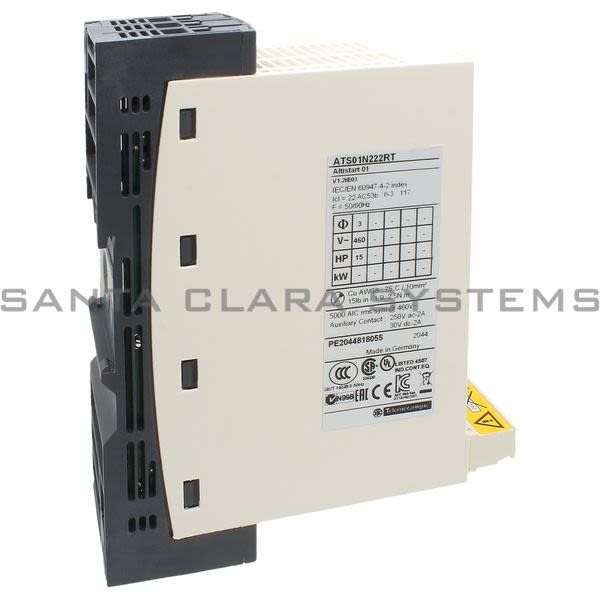

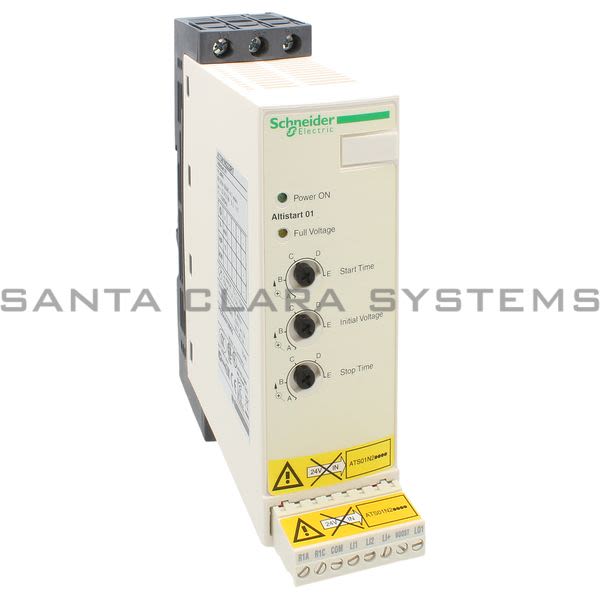

ATS01N222RT

Telemecanique - Soft Starter

Current response time:

By 5AM PT on Monday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: Soft Starter
Product weight: 1.23 lb(US) (0.56 kg)
Range of product: Altistart 01
IP degree of protection: IP20
Standards: EN/IEC 60947-4-2
Device short name: ATS01
Width: 1.77 in (45 mm)
Height: 6.06 in (154 mm)
Depth: 5.16 in (131 mm)
Operating altitude: <= 3280.84 ft. (1000 m) without derating, > 3280.84 ft. (1000 m) with current derating of 2.2 % per additional 100 m
Tightening torque: 16.81...22.12 lbf.in (1.9...2.5 N.m), 4.42 lbf.in (0.5 N.m)
[Uc] control circuit voltage: Built into the starter
Vibration resistance: 1.5 mm peak to peak 3...13 Hz EN/IEC 60068-2-6, 1 gn 13...150 Hz EN/IEC 60068-2-6
Shock resistance: 15 gn 11 ms EN/IEC 60068-2-27
Electrical connection: 4 mm screw clamp terminal rigid 1 1...10 mm AWG 8 power circuit, Screw connector rigid 1 0.5...2.5 mm AWG 14 control circuit, 4 mm screw clamp terminal rigid 2 1...6 mm AWG 10 power circuit, Screw connector rigid 2 0.5...1 mm AWG 17 control circuit, Screw connector flexible with cable end 1 0.5...1.5 mm AWG 16 control circuit, 4 mm screw clamp terminal flexible without cable end 1 1.5...10 mm AWG 8 power circuit, Screw connector flexible without cable end 1 0.5...2.5 mm AWG 14 control circuit, 4 mm screw clamp terminal flexible with cable end 2 1...6 mm AWG 10 power circuit, 4 mm screw clamp terminal flexible without cable end 2 1.5...6 mm AWG 10 power circuit, Screw connector flexible without cable end 2 0.5...1.5 mm AWG 16 control circuit
Utilization category: AC-53B EN/IEC 60947-4-2
[Us] rated supply voltage: 460...480 V - 10...10 %
Relative humidity: 5...95 % without condensation or dripping water EN/IEC 60068-2-3
Assembly style: With heat sink
Electromagnetic compatibility: Damped oscillating waves level 3 IEC 61000-4-12, Electrostatic discharge level 3 IEC 61000-4-2, Immunity to electrical transients level 4 IEC 61000-4-4, Immunity to radiated radio-electrical interference level 3 IEC 61000-4-3, Voltage/current impulse level 3 IEC 61000-4-5, Conducted and radiated emissions level B CISPR 11, Conducted and radiated emissions level B IEC 60947-4-2, EMC immunity EN 50082-2, Harmonics IEC 1000-3-2, Harmonics IEC 1000-3-4, Immunity to conducted interference caused by radio-electrical fields level 3 IEC 61000-4-6, Micro-cuts and voltage fluctuation IEC 61000-4-11, EMC immunity EN 50082-1
Product or component type: Soft starter
Function available: Integrated bypass
Product destination: Asynchronous motors
Supply voltage limits: 414...528 V
Product certifications: UL, CSA, C-Tick, CCC, GOST, B44.1-96/ASME A17.5 for starter wired to the motor delta terminal
Product specific application: Simple machine
Supply frequency: 50...60 Hz - 5...5 %

Network frequency: 47.5...63 Hz
Pollution degree: 2 EN/IEC 60947-4-2
Phase: 3 phases
Output voltage: <= power supply voltage
Motor power hp: 10 hp 3 phases 460...480 V, 15 hp 3 phases 460...480 V
Starting time: 1 s 100, 10 s 10, 5 s 20, Adjustable from 1 to 10 s
IcL starter rating: 22 A
Deceleration time symb: Adjustable from 1 to 10 s
Ambient air temperature for operation: 14...104 F (-10...40 C) without derating, 104...122 F (40...50 C) with current derating of 2 % per C
Starting torque: 30...80 % of starting torque of motor connected directly on the line supply
Ambient air temperature for storage: -13...158 F (-25...70 C) EN/IEC 60947-4-2
Current consumption: 110 A at nominal load
Discrete input type: Logic LI1, LI2, BOOST stop, run and boost on start-up functions <= 8 mA 27 kOhm
Type of start: Start with voltage ramp
Discrete input voltage: 24...40 V
power dissipation in W: 124.5 W in transient state, 4.5 W at full load and at end of starting
Discrete input logic: Positive LI1, LI2, BOOST < 5 V and <= 0.2 mA > 13 V >= 0.5 mA
Discrete output current: 2 A DC-13, 3 A AC-15
Discrete output type: Open collector logic LO1 end of starting signal, Relay outputs R1A, R1C NO
Discrete output voltage: 24 V 6...30 V open collector logic
Minimum switching current: 10 mA 6 V DC relay outputs
Maximum switching current: 2 A 250 V AC inductive cos phi = 0.5 20 ms relay outputs, 2 A 30 V DC inductive cos phi = 0.5 20 ms relay outputs
Display type: 1 LED green starter powered up, 1 LED yellow nominal voltage reached
Marking: CE
Operating position: Vertical +/- 10 degree
Compatibility code: ATS01N2
