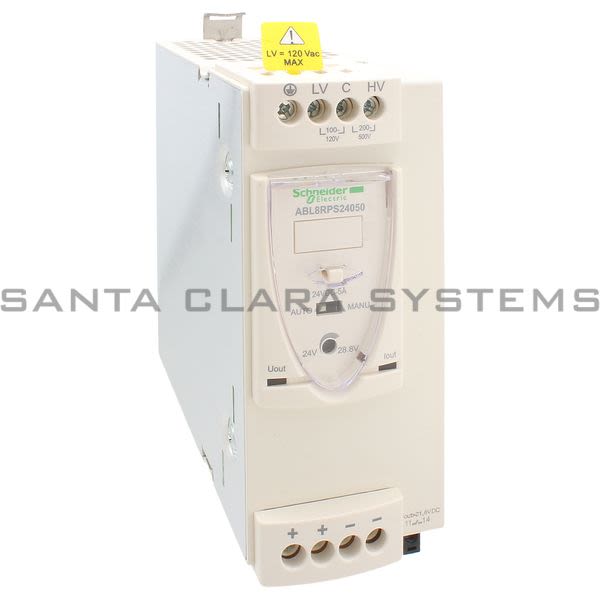

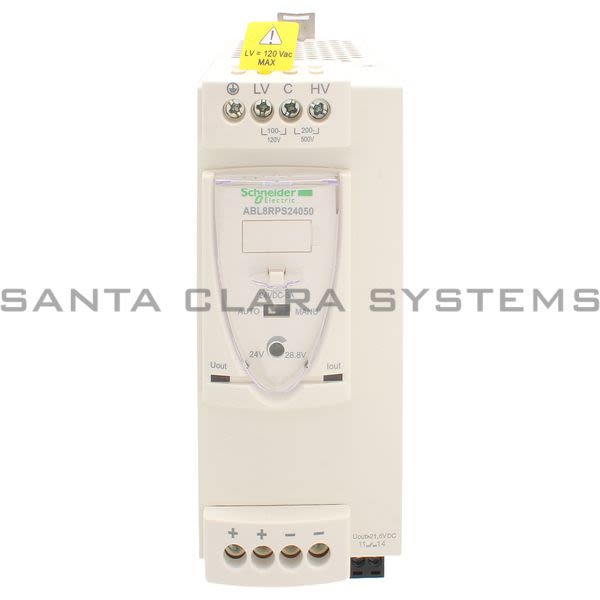

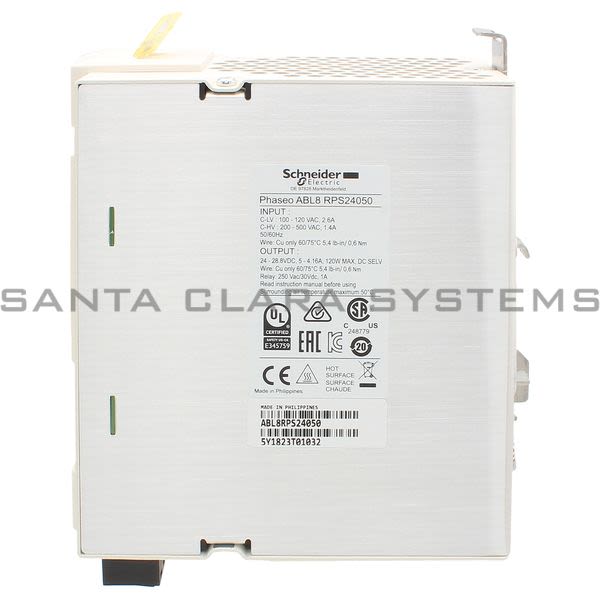

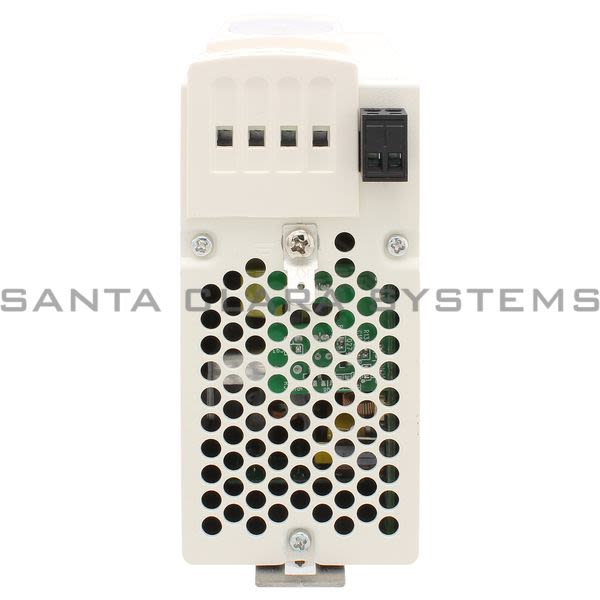

ABL8RPS24050

Telemecanique - regulated SMPS - 1 or 2-phase - 100..500 V - 24 V - 5 A

Current response time:

14 Minutes 9 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: regulated SMPS - 1 or 2-phase - 100..500 V - 24 V - 5 A
Product weight: 1.54 lb(US) (0.7 kg)
Range of product: Phaseo
IP degree of protection: IP20 conforming to EN/IEC 60529
Standards: CSA C22.2 No 60950-1, UL 508
Width: 2.2 in (56 mm)
Height: 5.63 in (143 mm)
Depth: 4.72 in (120 mm)
Operating altitude: 6561.68 ft. (2000 m)
Connections - terminals: Screw type terminals input connection, connection capacity: 3 x 0.5...3 x 4 mm AWG 22...AWG 12, Screw type terminals input ground connection, connection capacity: 1 x 0.5...1 x 4 mm AWG 22...AWG 12, Screw type terminals output connection, connection capacity: 4 x 0.5...4 x 4 mm AWG 22...AWG 12, Screw type terminals output ground connection, connection capacity: 1 x 0.5...1 x 4 mm AWG 22...AWG 12, Removable screw terminal block diagnostic relay, connection capacity: 2 x 2.5 mm
Mounting support: 35 x 7.5 mm symmetrical DIN rail, 35 x 15 mm symmetrical DIN rail
Overvoltage category: Class I conforming to VDE 0106-1
Relative humidity: 0...90 % during operation, 0...95 % in storage
Input voltage: 100...120 V AC single phase, terminal(s): N-L1, 200...500 V AC phase to phase, terminal(s): L1-L2
Input voltage limits: 85...132 V, 170...550 V
Product certifications: KC, RCM, CB Scheme, EAC
Product or component type: Power supply
Network frequency: 47...63 Hz
Power supply type: Regulated switch mode
Inrush current: <= 30 A 2 ms
Environmental characteristic: EMC conforming to EN 61000-6-1, EMC conforming to EN 61000-6-3, EMC conforming to EN/IEC 61000-6-2, EMC conforming to EN/IEC 61000-6-4, EMC conforming to EN/IEC 61204-3, Safety conforming to EN/IEC 60950-1, Safety conforming to EN/IEC 61204-3, Safety conforming to SELV

Cos phi: 0.51 at 240 V, 0.59 at 120 V
Output voltage: 24 V DC
Efficiency: 87%
Ambient air temperature for storage: -40...158 F (-40...70 C)
rated power in W: 120 W
Output voltage limits: 24...28.8 V adjustable
Provided equipment: Power factor correction filter conforming to IEC 61000-3-2
power dissipation in W: 15.5 W
Power supply output current: 5:00 AM
Line and load regulation: 1...3 %
Dielectric strength: Between input and ground, Between output and ground, Between input and output
Output protection type: Against overload, protection technology: manual or automatic reset, Against overvoltage, protection technology: 30...32 V, manual reset, Against short-circuits, protection technology: manual or automatic reset, Against undervoltage, protection technology: tripping if U < 21.6 V, Thermal, protection technology: automatic reset
Holding time: >= 120 ms at 400 V, >= 20 ms at 100 V, >= 40 ms at 240 V
Ambient air temperature for operation: 122...140 F (50...60 C) with, -13...122 F (-25...50 C) without
Permissible temporary current boost: 1.5 x In for 4 s
Marking: CE
Operating position: Vertical
Output coupling: Parallel, Series
Name of test: Harmonic current emission conforming to EN/IEC 61000-3-2, Conducted emissions on the power line conforming to EN 55022 Class B, Electrostatic discharges conforming to EN/IEC 61000-4-2, Induced electromagnetic field conforming to EN/IEC 61000-4-6, Magnetic field conforming to EN 61000-4-8, Primary outage conforming to IEC 61000-4-11, Radiated electromagnetic field conforming to EN/IEC 61000-4-3, Radiated emissions conforming to EN 55022 Class B, Rapid transient conforming to IEC 61000-4-4, Surge conforming to EN/IEC 61000-4-5
status LED: 1 LED green and red output voltage, 1 LED green, red and orange output current
