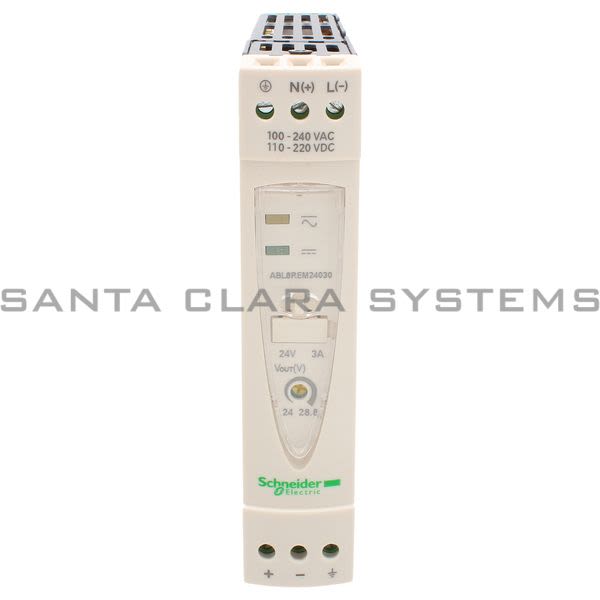

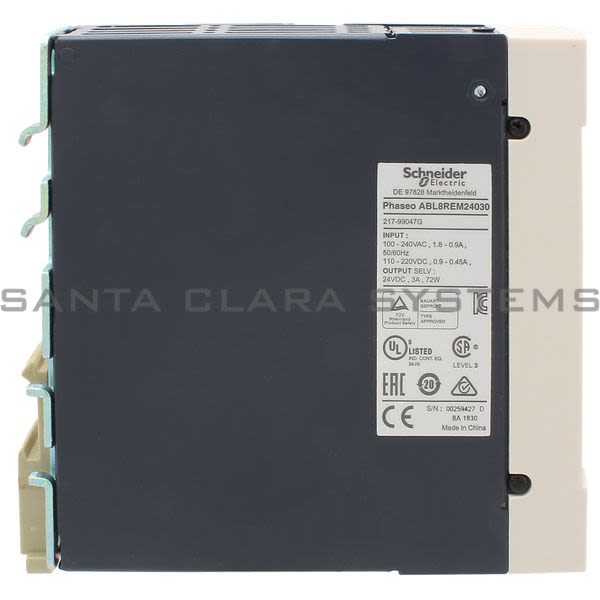

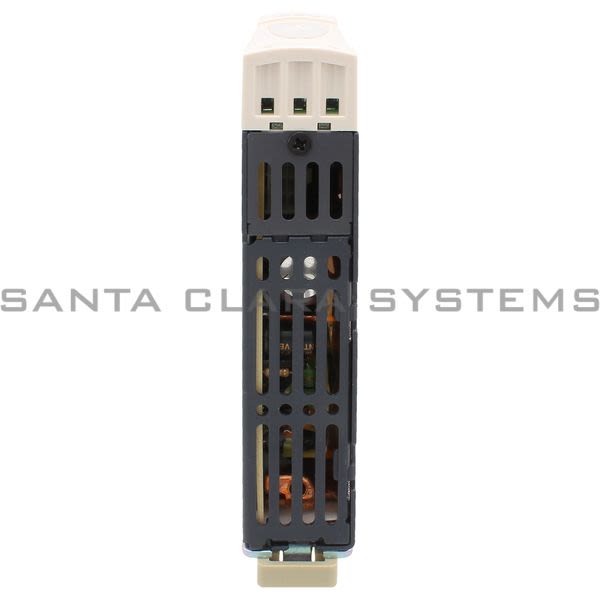

ABL8REM24030

Telemecanique - regulated SMPS - 1 or 2-phase - 100..240 V AC - 24 V - 3 A

Current response time:

14 Minutes 33 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: regulated SMPS - 1 or 2-phase - 100..240 V AC - 24 V - 3 A
Product weight: 1.15 lb(US) (0.52 kg)
Range of product: Phaseo
IP degree of protection: IP20 conforming to EN/IEC 60529
Standards: UL 508, CSA C22.2 No 60950-1
Width: 1.06 in (27 mm)
Height: 4.72 in (120 mm)
Depth: 4.72 in (120 mm)
Operating altitude: 6561.68 ft. (2000 m)
Connections - terminals: Screw type terminals input connection, connection capacity: 2 x 0.14...2 x 2.5 mm AWG 26...AWG 14, Screw type terminals input ground connection, connection capacity: 1 x 0.14...1 x 2.5 mm AWG 26...AWG 14, Screw type terminals output connection, connection capacity: 2 x 0.14...2 x 2.5 mm AWG 26...AWG 14, Screw type terminals output ground connection, connection capacity: 1 x 0.14...1 x 2.5 mm AWG 26...AWG 14
Mounting support: 35 x 7.5 mm symmetrical DIN rail, 35 x 15 mm symmetrical DIN rail, 75 x 7.5 mm symmetrical DIN rail
Overvoltage category: Class I conforming to VDE 0106-1
Relative humidity: 0...95 % without condensation or dripping water
Input voltage: 100...240 V AC phase to phase, terminal(s): L1-L2, 100...240 V AC single phase, terminal(s): N-L1, 110...220 V DC
Input voltage limits: 85...264 V, 100...250 V
Product certifications: KC, RCM, EAC, TUV 60950-1
Product or component type: Power supply
Network frequency: 47...63 Hz
Power supply type: Regulated switch mode
Inrush current: <= 30 A
Environmental characteristic: EMC conforming to EN 50081-1, EMC conforming to EN 50082-2, EMC conforming to EN/IEC 61000-6-2, Safety conforming to EN/IEC 60950, Safety conforming to SELV

Cos phi: 0.65
Output voltage: 24 V DC
Efficiency: 85%
Ambient air temperature for storage: -13...158 F (-25...70 C)
rated power in W: 72 W
Output voltage limits: 100...120 % adjustable
Input protection type: Integrated fuse (not interchangeable)
power dissipation in W: 12.7 W
Power supply output current: 3:00 AM
Current consumption: 0.83 A at 240 V, 1.46 A at 100 V
Dielectric strength: Between input and ground, Between output and ground, Between input and output, Between outputs
Output protection type: Against overload, protection technology: 1.1 x In, Against overvoltage, protection technology: tripping if U > 1.5 x Un, Against short-circuits, protection technology: automatic reset, Against undervoltage, protection technology: tripping if U < 0.8 x Un
Line and load regulation: +/- 3 %
Ambient air temperature for operation: 32...122 F (0...50 C) without, 122...140 F (50...60 C) with
Holding time: >= 10 ms at 100 V, >= 10 ms at 240 V
Marking: CE
Operating position: Vertical
Output coupling: Parallel, Series
Name of test: Conducted/radiated emissions conforming to EN 55011, Conducted/radiated emissions conforming to EN 55022 Class B, Electrostatic discharges conforming to EN/IEC 61000-4-2, Emission conforming to EN 50081-1, Induced electromagnetic field conforming to EN/IEC 61000-4-6, Primary outage conforming to IEC 61000-4-11, Radiated electromagnetic field conforming to EN/IEC 61000-4-3, Rapid transient conforming to IEC 61000-4-4, Surge conforming to EN/IEC 61000-4-5
status LED: 1 LED green output voltage, 1 LED orange input voltage
