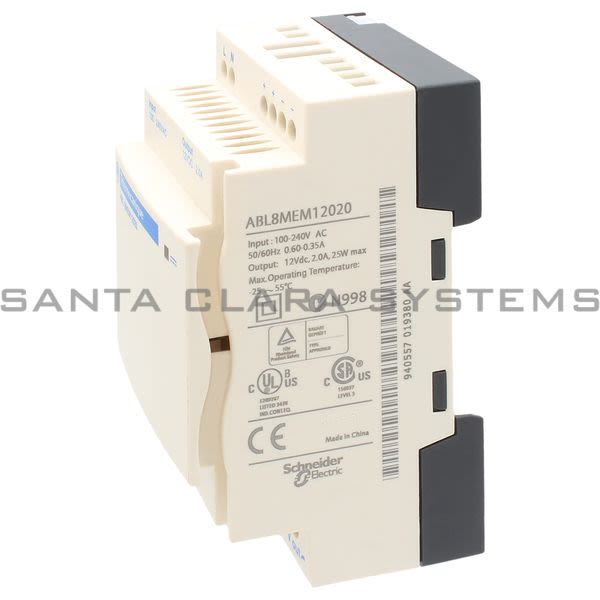

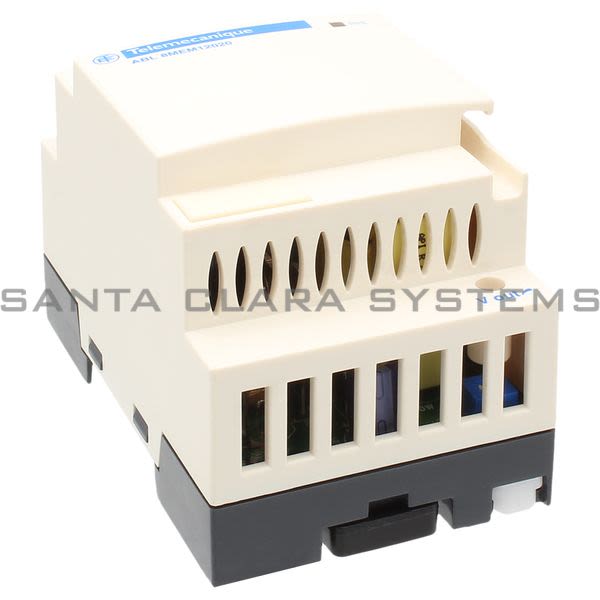

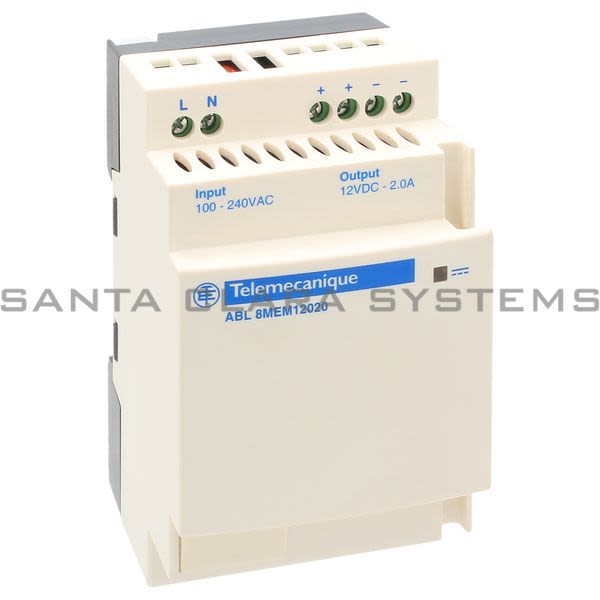

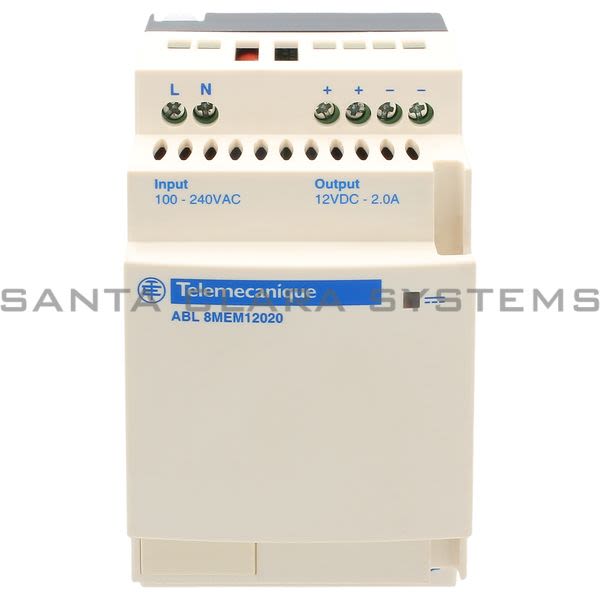

ABL8MEM12020

Telemecanique - regulated SMPS - 1 or 2-phase - 100..240 V AC - 12 V - 2 A

Current response time:

6 Minutes 34 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: regulated SMPS - 1 or 2-phase - 100..240 V AC - 12 V - 2 A
Product weight: 0.43 lb(US) (0.195 kg)
Range of product: Phaseo
IP degree of protection: IP20 conforming to EN/IEC 60529
Standards: CSA C22.2 No 60950-1, UL 508
Width: 2.13 in (54 mm)
Height: 3.94 in (100 mm)
Depth: 2.32 in (59 mm)
Operating altitude: 6561.68 ft. (2000 m)
Connections - terminals: Screw type terminals input connection, connection capacity: 2 x 0.14...2 x 2.5 mm AWG 26...AWG 14, Screw type terminals output connection, connection capacity: 4 x 0.14...4 x 2.5 mm AWG 26...AWG 14
Mounting support: 35 x 15 mm symmetrical DIN rail, 35 x 7.5 mm symmetrical DIN rail, Panel 2 screws, diameter : 4 mm
Overvoltage category: Class II conforming to VDE 0106-1
Relative humidity: 0...90 % during operation, 0...95 % in storage
Input voltage: 100...240 V AC phase to phase, terminal(s): L1-L2, 100...240 V AC single phase, terminal(s): N-L1, 120...250 V DC
Input voltage limits: 85...264 V
Product certifications: TUV 60950-1, RCM, EAC, KC
Product or component type: Power supply
Network frequency: 47...63 Hz
Power supply type: Regulated switch mode
Inrush current: <= 20 A
Environmental characteristic: EMC conforming to EN 55022 Class B, EMC conforming to EN 61000-6-3, EMC conforming to EN/IEC 61000-6-2, EMC conforming to EN/IEC 61204-3, Safety conforming to EN/IEC 60950-1, Safety conforming to SELV

Cos phi: 0.5
Output voltage: 12...15 V DC
Efficiency: 80%
Ambient air temperature for storage: -40...158 F (-40...70 C)
rated power in W: 25 W
Output voltage limits: 11.4...15 V adjustable
Input protection type: Integrated fuse (not interchangeable)
power dissipation in W: 6.2 W
Power supply output current: 2.1 A
Current consumption: 0.35 A at 240 V, 0.6 A at 100 V
Dielectric strength: Between input and output
Output protection type: Against short-circuits
Line and load regulation: +/- 3 %
Ambient air temperature for operation: -13...131 F (-25...55 C) without, 55...70 C with
Residual ripple: 250 mV
Holding time: >= 10 ms at 100 V
Marking: CE
Operating position: Vertical
Output coupling: Parallel, Series
Name of test: Harmonic current emission conforming to EN/IEC 61000-3-2, Conducted emissions on the power line conforming to EN 55022 Class B, Electrostatic discharges conforming to EN/IEC 61000-4-2, Emission conforming to EN 50081-1, Induced electromagnetic field conforming to EN/IEC 61000-4-6, Primary outage conforming to IEC 61000-4-11, Radiated electromagnetic field conforming to EN/IEC 61000-4-3, Radiated emissions conforming to EN 55022 Class B, Rapid transient conforming to IEC 61000-4-4, Surge conforming to EN/IEC 61000-4-5
status LED: 1 LED green output voltage
