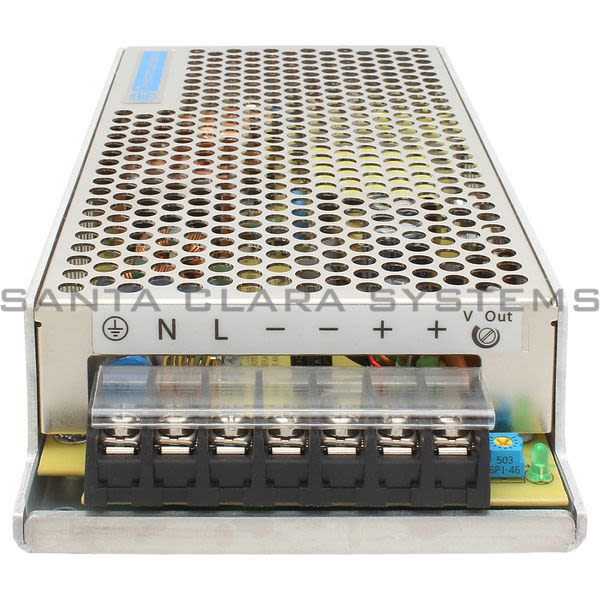

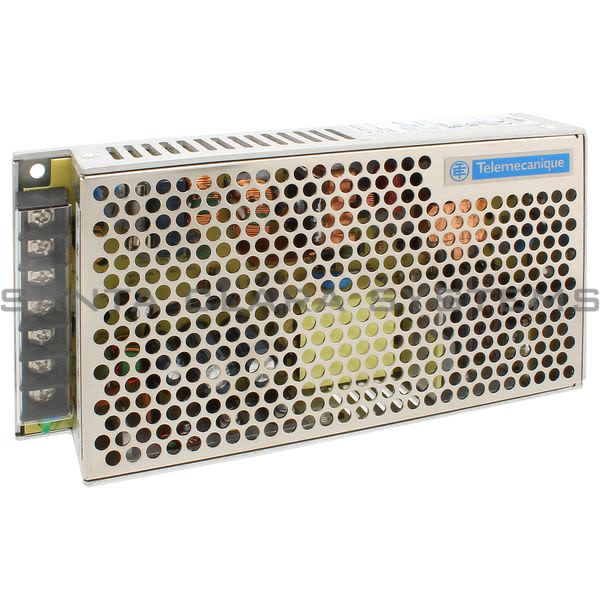

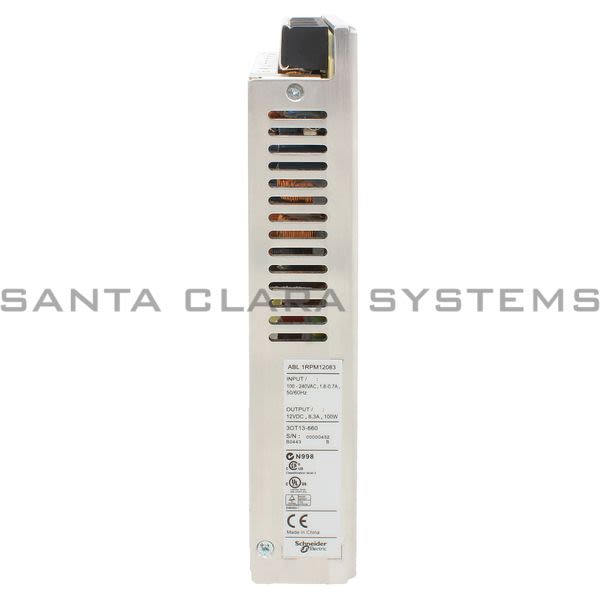

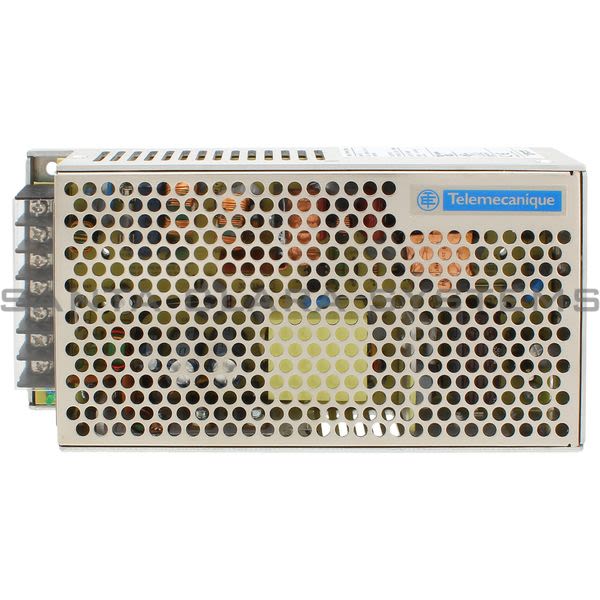

ABL1RPM12083

Telemecanique - regulated SMPS - single phase - 100..240 V input - 12 V output - 100 W

Current response time:

7 Minutes 40 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: regulated SMPS - single phase - 100..240 V input - 12 V output - 100 W
Product weight: 1.41 lb(US) (0.64 kg)
Range of product: Phaseo Dedicated
IP degree of protection: IP20 conforming to EN/IEC 60950
Operating altitude: 6561.68 ft. (2000 m)
Connections - terminals: Screw type terminals ground connection, connection capacity: 1 x 4 mm AWG 12, Screw type terminals input connection, connection capacity: 2 x 4 mm AWG 12, Screw type terminals output connection, connection capacity: 4 x 4 mm AWG 12
Mounting support: Panel, Reversible mounting bracket
Vibration resistance: 2 gn (f = 9...150 Hz) conforming to EN/IEC 61131-2, 3.5 mm (f = 5...9 Hz) conforming to EN/IEC 61131-2
Overvoltage category: II
Relative humidity: 20...90 %
Input voltage: AC single phase, DC
Input voltage limits: 85...264 V
Product certifications: CSA 22-2 No 60950-1, TUV 60950-1, EAC, UL 508, RCM, CCSAus
Product or component type: Power supply
Network frequency: 47...63 Hz
Environmental characteristic: Low frequency harmonic currents conforming to EN/IEC 61000-3-2, EMC conforming to EN 50081-1, EMC conforming to EN 50082-2, EMC conforming to EN 61000-6-3, EMC conforming to EN/IEC 61000-6-2, Safety conforming to EN/IEC 60950-1, Safety conforming to SELV
Power supply type: Regulated switch mode
Inrush current: <= 50 A at 115 V AC, <= 100 A at 230 V AC
rated power in W: 100 W
Cos phi: 0.7...0.95

Ambient air temperature for operation: 32...113 F (0...45 C) without derating factor, 113...140 F (45...60 C) with derating factor
Efficiency: > 80 %
Ambient air temperature for storage: -13...185 F (-25...85 C)
Output voltage: 12 V DC
power dissipation in W: 25 W
Power supply output current: 8.3 A
Current consumption: 0.7 A at 240 V, 1.7 A at 100 V
Operating position: Any position
Input protection type: Integrated fuse (not interchangeable)
Pollution degree: 2
Output voltage limits: 10.8...13.2 V
Dielectric strength: 1500 V between input and ground, 3000 V between input and output, 500 V between output and ground
Name of test: Conducted interference conforming to EN 61000-4-8 level 4, Conducted/radiated emissions conforming to EN 55022 Class B, Conducted/radiated emissions conforming to EN/IEC 55011, Electrostatic discharges conforming to EN/IEC 61000-4-2 level 3, Emission conforming to EN/IEC 61000-6-3, Induced electromagnetic field conforming to EN/IEC 61000-4-6 level 3, Primary outage conforming to IEC 61000-4-11, Radiated electromagnetic field conforming to EN/IEC 61000-4-3 level 3, Rapid transient conforming to IEC 61000-4-4 level 3, Surge conforming to EN/IEC 61000-4-5
Line and load regulation: +/- 3 %
Holding time: >= 10 ms at 100 V, >= 40 ms at 240 V
Output protection type: Against overload, protection technology: 1.1...1.5 x In, Against overvoltage, protection technology: tripping if U > 1.25 x Un, Against short-circuits, protection technology: automatic reset, Thermal
Marking: CE
Output coupling: Parallel, Series
meantime between failure [MTBF]: > 100000 hat 104 F (40 C)
status LED: 1 LED green output voltage
