MGN-61431

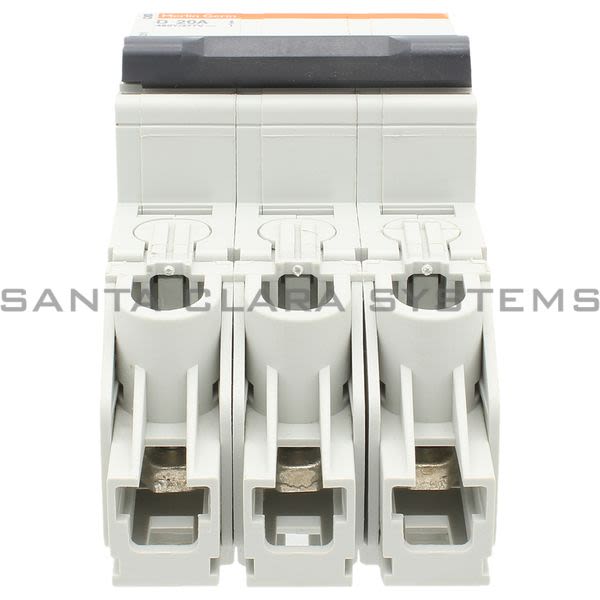

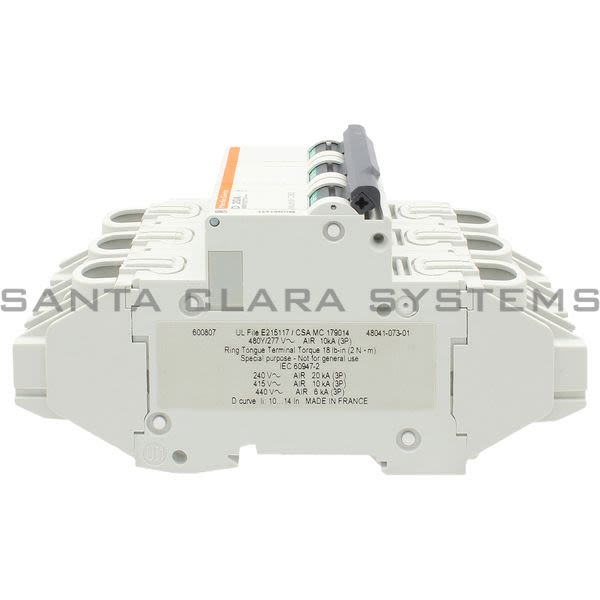

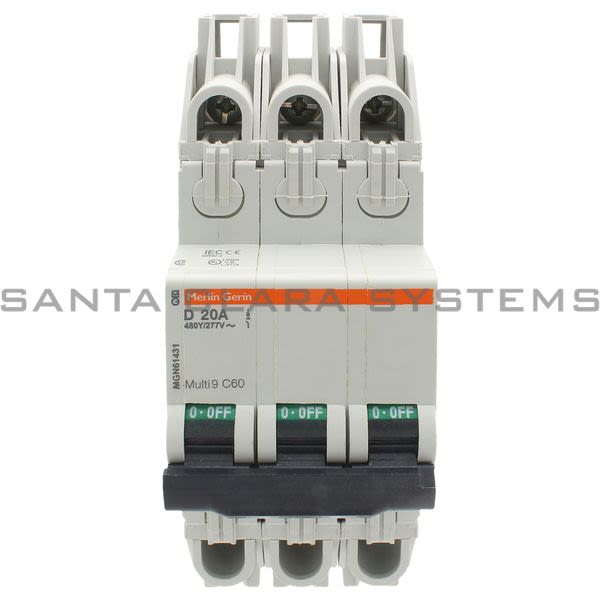

Square D - Miniature Circuit Breaker

Current response time:

7 Minutes 59 Seconds

*Santa Clara Systems is not a Square D Authorized Distributor.

Description: Miniature Circuit Breaker
Poles description: 3P
Control type: Toggle
Product name: Multi 9 C60
Product or component type: Miniature circuit-breaker
Device short name: C60 UL489
Device application: Distribution
Number of protected poles: 3
[In] rated current: 20 A at 25 C
Trip unit technology: Thermal-magnetic
Curve code: D
Suitability for isolation: Yes conforming to EN/IEC 60947-2
Network frequency: 50/60 Hz
[Ue] rated operational voltage: 480Y/277 V AC

Limitation class: 3 conforming to EN/IEC 60947-2
[Ui] rated insulation voltage: 500 V AC conforming to EN/IEC 60947-2
[Uimp] rated impulse withstand voltage: 6 kV conforming to EN/IEC 60947-2
Contact position indicator: Yes
Local signalling: ON/OFF indication
Mounting mode: Clip-on
Mounting support: DIN rail
9 mm pitches: 6
Height: 141 mm
Width: 54 mm
Depth: 68.7 mm
Product weight: 0.33 kg
Colour: Grey

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on MGN-61431 . Santa Clara Systems carries 5,544 items from Square D.
