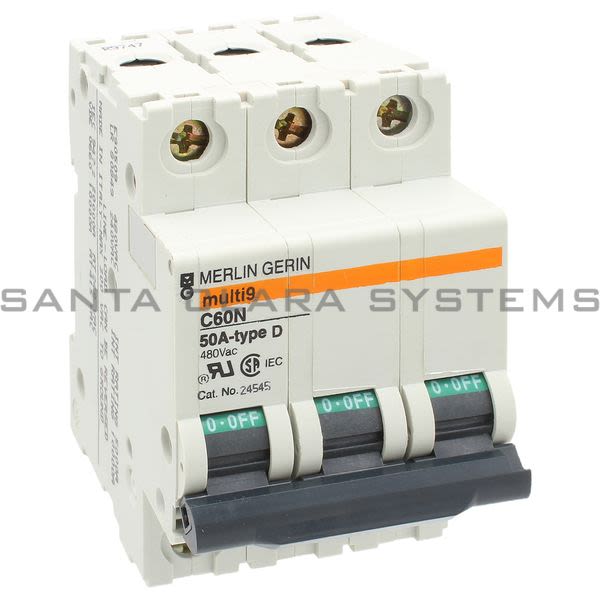

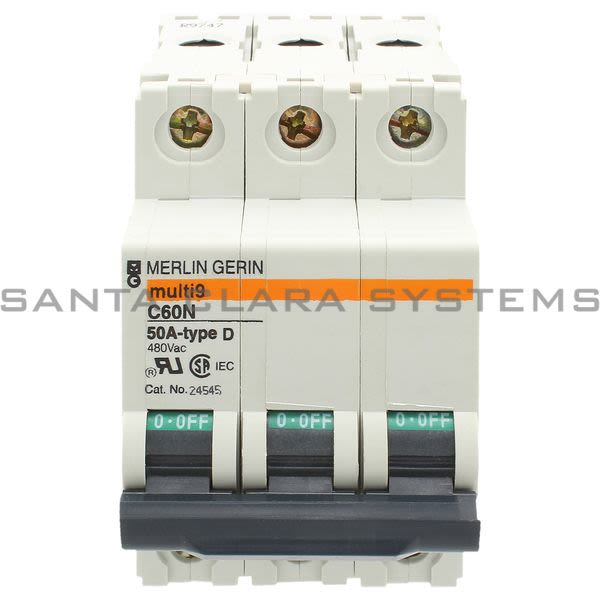

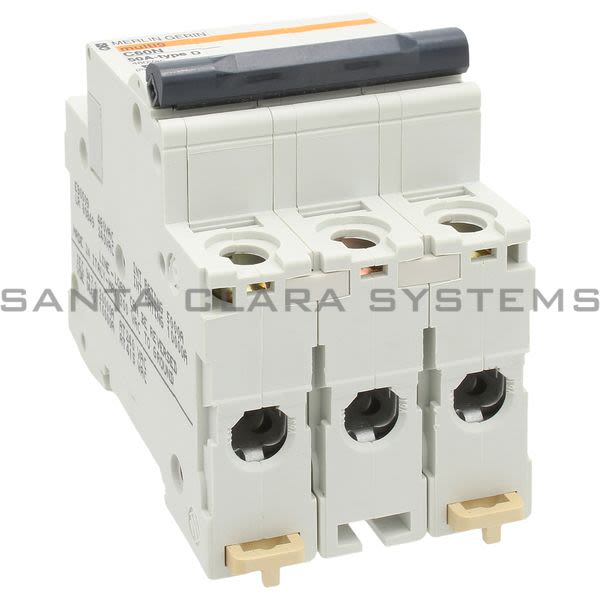

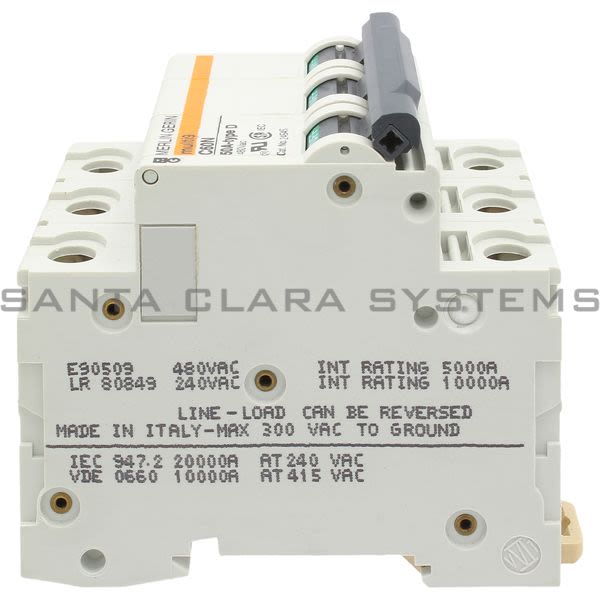

- Description: Supplementary Protector
- Poles description: 3P
- Control type: Toggle
- Range: Multi 9
- Product name: Multi 9 C60
- Device short name: C60 UL1077
- Device application: Distribution
- Number of protected poles: 3
- [In] rated current: 50 A at 25 C
- Trip unit technology: Thermal-magnetic
- Suitability for isolation: Yes conforming to EN/IEC 60947-2
- Mounting mode: Clip-on
- Network frequency: 50/60 Hz
- Curve code: D
- Limitation class: 3 conforming to EN/IEC 60947-2
- [Ui] rated insulation voltage: 500 V AC conforming to EN/IEC 60947-2
- [Uimp] rated impulse withstand voltage: 6 kV conforming to EN/IEC 60947-2
- Contact position indicator: Yes
- Local signalling: ON/OFF indication
- Mounting support: DIN rail
- 9 mm pitches: 6
- Height: 81 mm
- Width: 54 mm
- Depth: 73 mm
- Product weight: 0.33 kg
- Colour: Grey
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on MG-24545 . Santa Clara Systems carries 5,544 items from Square D.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
