MG-17415

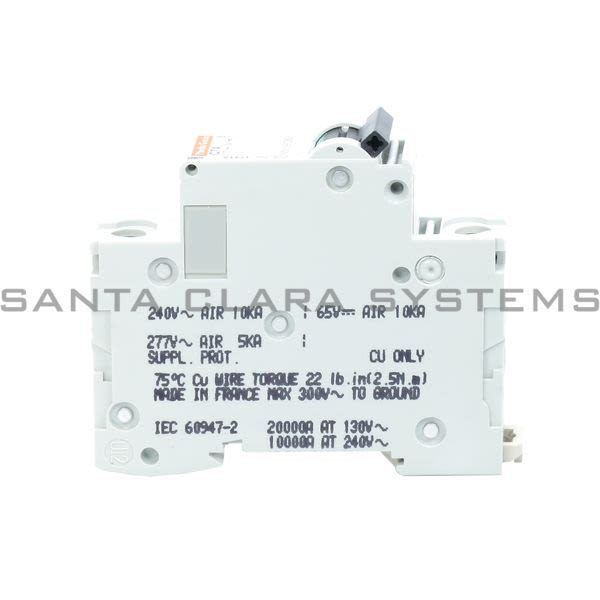

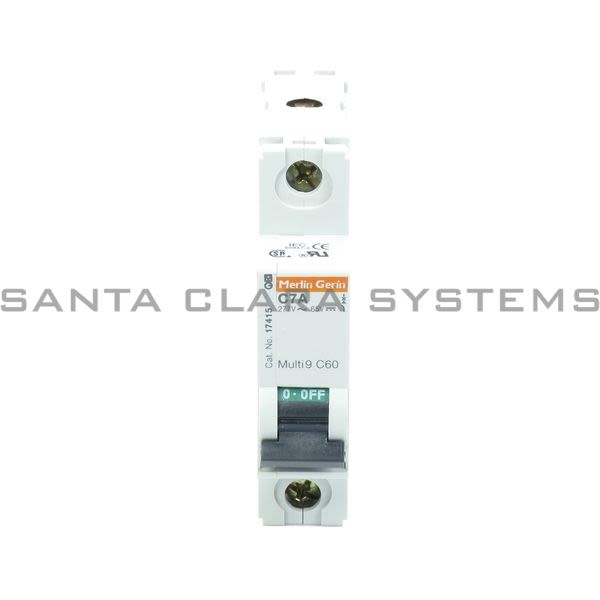

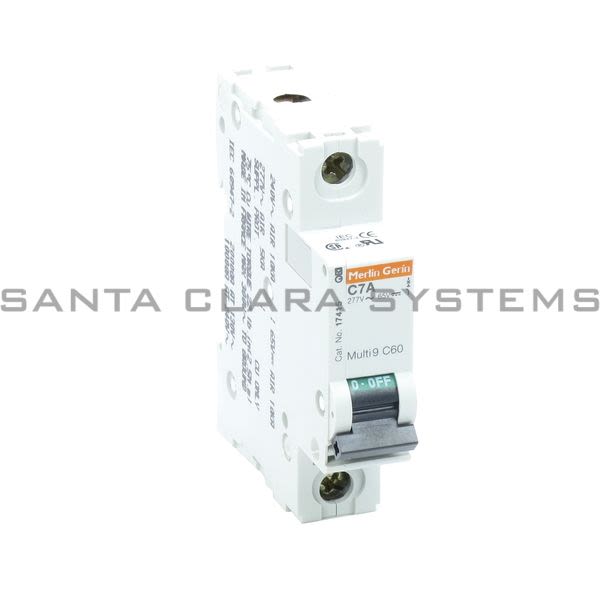

Square D - Circuit Breaker | Merlin Gerin C7A C60

Current response time:

By 5AM PT on Friday

Emergency?

*Santa Clara Systems is not a Square D Authorized Distributor.

Description: Circuit Breaker | Merlin Gerin C7A C60
Number of Poles: 1-Pole
Mounting Type: DIN Rail (35mm)
Voltage Rating: 240VAC
Wire Size: #14 to #4 AWG (Cu)
Circuit Breaker Type: Standard
Short Circuit Current Rating: 10kA@120/240VAC - 5kA@277VAC
Ampere Rating: 7A
Range: Multi 9
Product name: Multi 9 C60
Device short name: C60 UL1077
Device application: Distribution
Number of protected poles: 1
[In] rated current: 7 A at 25 C

Trip unit technology: Thermal-magnetic
Suitability for isolation: Yes conforming to EN/IEC 60947-2
Mounting mode: Clip-on
Height: 81 mm
Width: 18 mm
Depth: 73 mm
Product weight: 0.11 kg
Colour: Grey
Mechanical durability: 20000 cycles
Electrical durability: 10000 cycles
Provision for padlocking: Padlockable
Connections - terminals: Tunnel type terminal, top or bottom rigid wire(s) 2.5...25 mm max (AWG 14...AWG 4)
Wire stripping length: 14 mm top or bottom
Tightening torque: 2.5 N.m top or bottom
