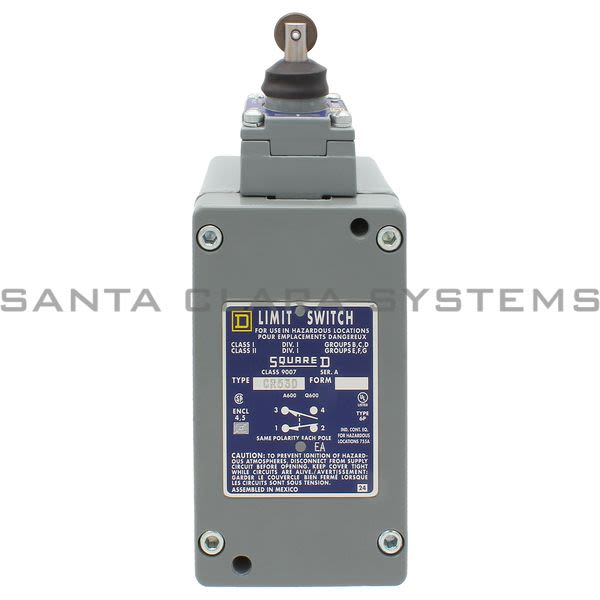

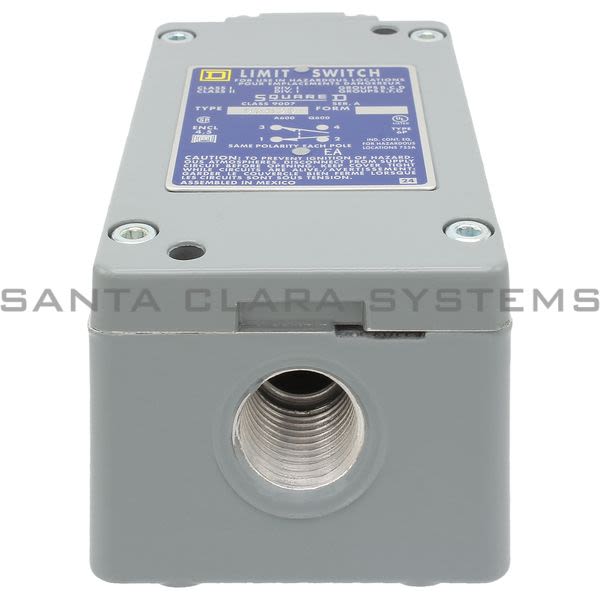

Square D 9007-CR53D Limit Switch Product Image

9007-CR53D

Square D - Limit Switch

Current response time:

11 Minutes 12 Seconds

*Santa Clara Systems is not a Square D Authorized Distributor.

Description: Limit Switch
Number of poles: 1
Head type: Plunger head
Electrical connection: (AWG 22...AWG 12) screw-clamp terminals, 1...2
Material: Metal
Series name: Heavy duty
Product or component type: Limit switch
Product specific application: Hazardous location box
Device short name: 9007CR
Body type: Fixed
Fixing mode: By the body
Movement of operating head: Linear
Type of operator: Steel spring return roller plunger (-)
Switch actuation: By 30 cam
Type of approach: 2 directions lateral approach
Cable entry: 1 entry for 1/2" - 14 NPT conforming to ANSI B1.20.1
Contacts type and composition: NC-NO

Contact operation: Snap action
Positive opening: Without
Width: 2.72 in
Height: 7.05 in
Depth: 2.08 in
Product weight: 2.5 lb(US)
Shock resistance: 60 gn (duration = 9 ms) conforming to IEC 60068-2-27
Vibration resistance: 25 gn (f = 10...150 Hz) conforming to IEC 60068-2-6
IP degree of protection: IP67 conforming to IEC 60529
Electrical shock protection class: Class 0 conforming to IEC 61140
Ambient air temperature for operation: -20...185 F for hazardous location
Ambient air temperature for storage: -20...185 F
Environmental characteristic: Standard environment
Protective treatment: Epoxy powder coat
Sustainable offer status: Green Premium product
Product environmental profile: Available
Product end of life instructions: Need no specific recycling operations
