9007-C54F

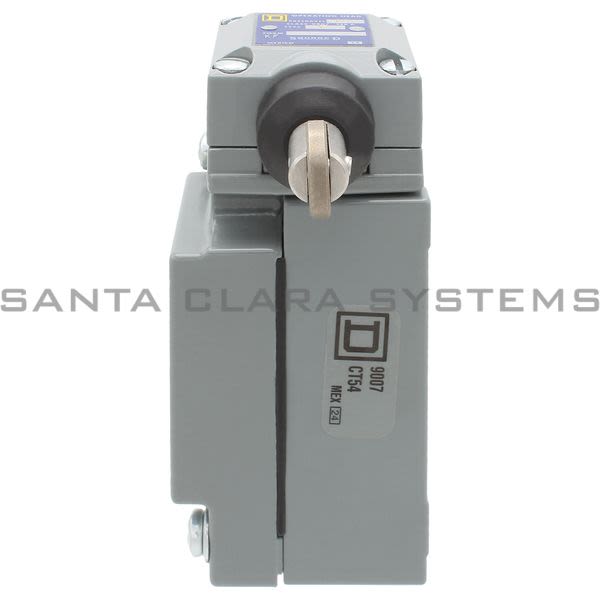

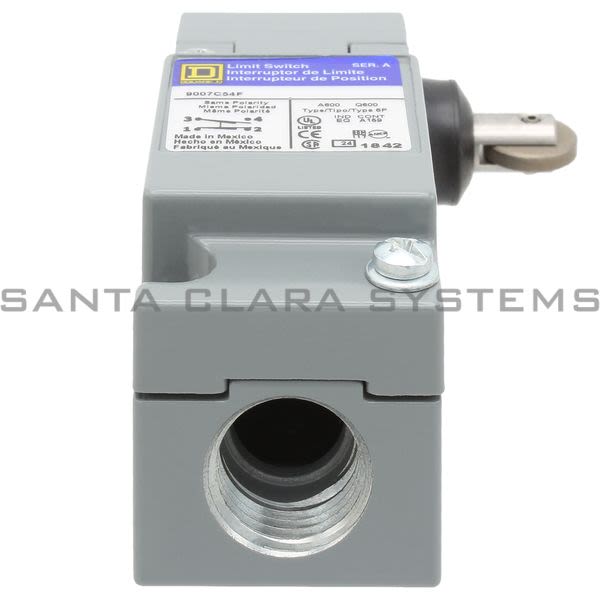

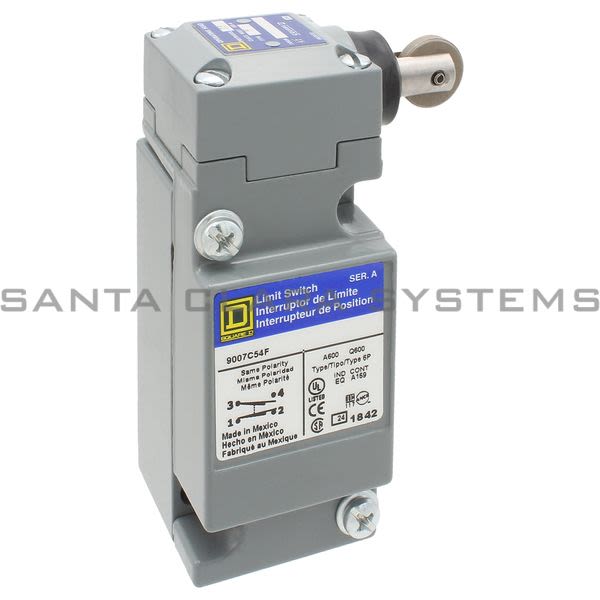

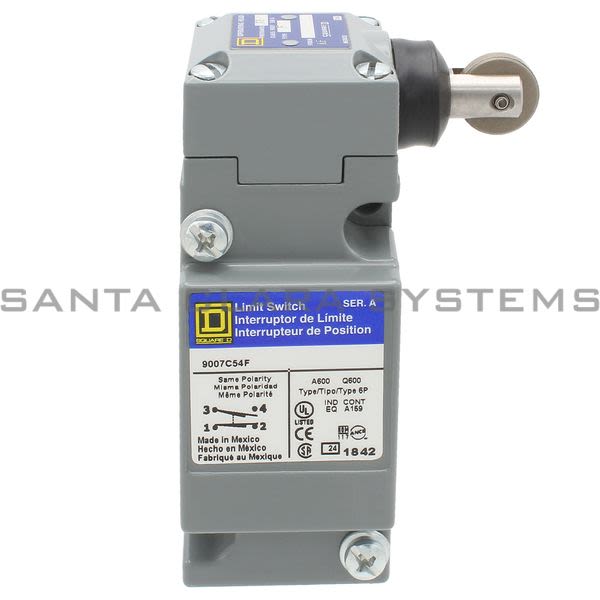

Square D - Limit Switch

Current response time:

15 Minutes 28 Seconds

*Santa Clara Systems is not a Square D Authorized Distributor.

Description: Limit Switch
Number of poles: 1
Head type: Plunger head
Electrical connection: (AWG 22...AWG 12) screw-clamp terminals, 1...2
Material: Metal
Series name: Heavy duty
Product or component type: Limit switch
Product specific application: Standard box
Device short name: 9007C
Body type: Plug-in
Fixing mode: By the body
Movement of operating head: Linear
Type of operator: Steel spring return side roller plunger with vertical roller (vertical convertible to horizontal)
Switch actuation: By 30 cam
Type of approach: 2 directions vertical approach

Cable entry: 1 entry for 1/2" - 14 NPT conforming to ANSI B1.20.1
Contacts type and composition: NC-NO
Contact operation: Snap action
Positive opening: Without
Body material: Zinc
Head material: Zinc
Function available: -
Switch function: SPDT-DB
Contact form: Form Z
Contacts material: Silver contacts
Width: 1.55 in
Height: 4.02 in
Depth: 2.63 in
Product weight: 1.25 lb(US)

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 9007-C54F . Santa Clara Systems carries 5,563 items from Square D.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
