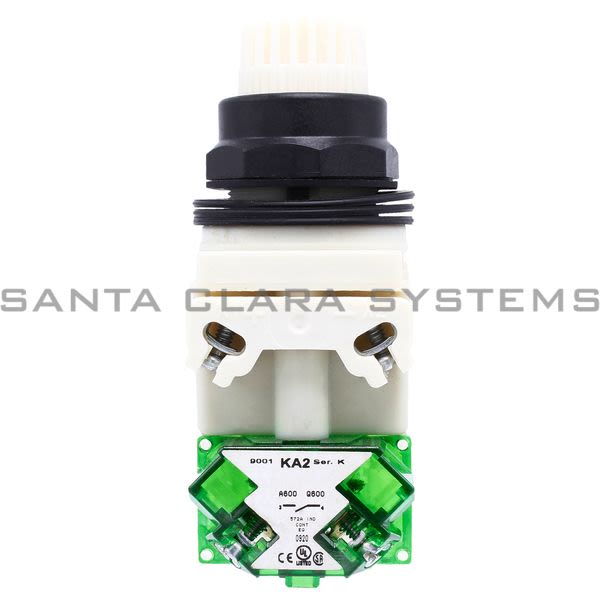

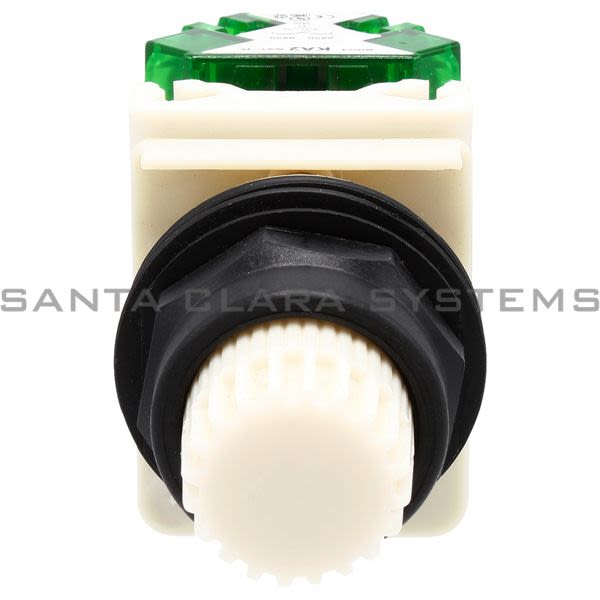

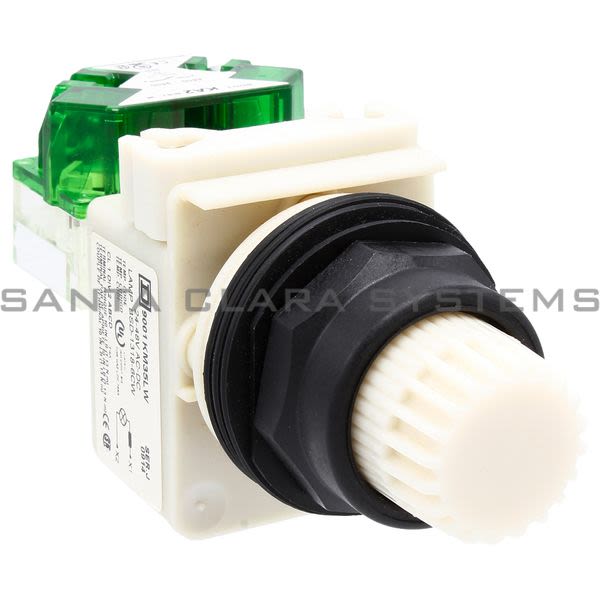

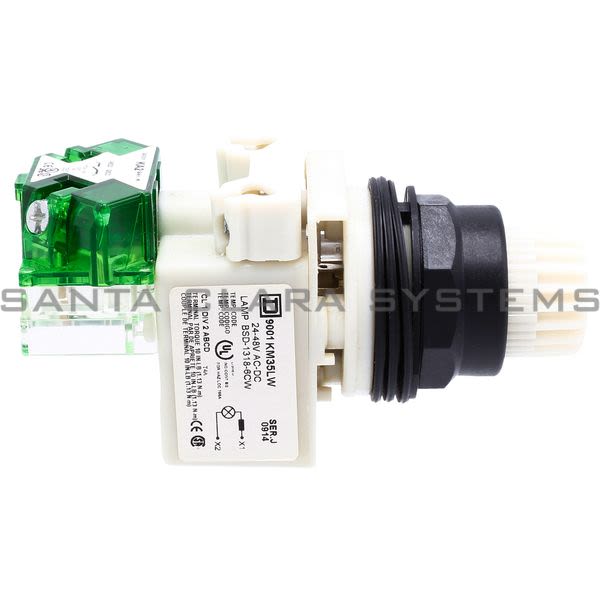

9001-SK2L35LWWH5

Square D - Pushbutton

Current response time:

By 5AM PT on Monday

Emergency?

*Santa Clara Systems is not a Square D Authorized Distributor.

Description: Pushbutton
Bezel material: Plastic
Product or component type: Illuminated push-button
Device short name: 9001SK
Type of operator: Spring return
Operator profile: White projecting unmarked
Operator additional information: Without guard
Light block supply: Direct
Mounting diameter: 30 mm
Light source: White LED
Bulb base: BA 9s
[Us] rated supply voltage: 24...28 V AC/DC
Contacts type and composition: 1 NO
Connections - terminals: Screw clamp terminals (1 x 0.22...2 x 1.5 mm) conforming to EN/IEC 60947-1
Tightening torque: 0.8 N.m conforming to EN/IEC 60947-1

Shape of screw head: Cross slotted
Mechanical durability: 5000000 cycles
Operating position: Any position
[Ui] rated insulation voltage: 250 V (degree of pollution: 3) conforming to EN/IEC 60947-1
[Uimp] rated impulse withstand voltage: 2.5 kV conforming to EN/IEC 60947-1
Contacts material: Silver alloy contacts
Contact operation: Standard
Positive opening: Without
Short-circuit protection: 10 A cartridge fuse conforming to EN/IEC 60947-5-1
[Ith] conventional free air thermal current: 10:00 AM
[Icm] rated short-circuit making capacity: <= 0.1 kA at 240 V (DC-13) 7200 VA
Rated breaking capacity: <= 1.2 kA at 600 V (AC-15) 720 VA
Product weight: 0.181 kg
Device presentation: Complete product
Product certifications: "NEMA

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 9001-SK2L35LWWH5 . Santa Clara Systems carries 5,579 items from Square D.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
