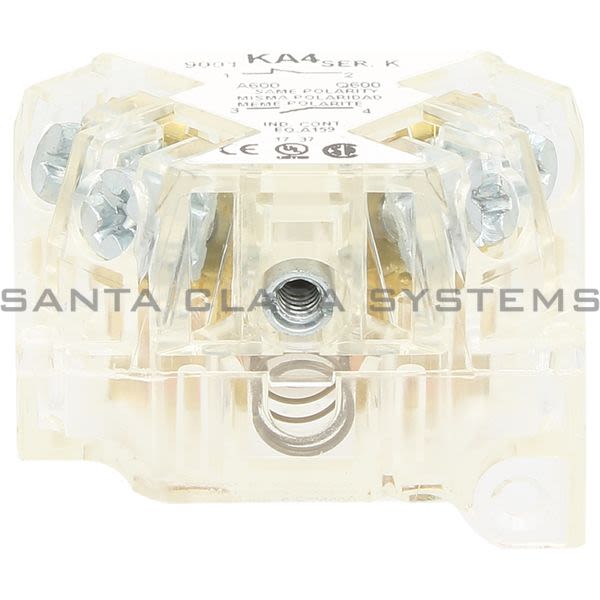

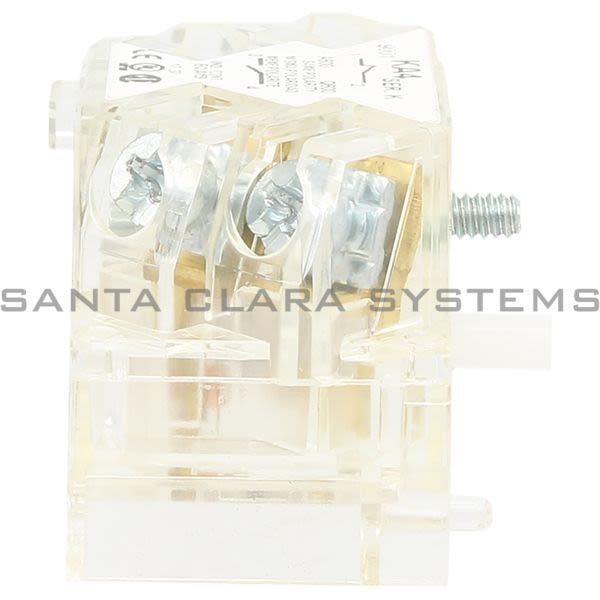

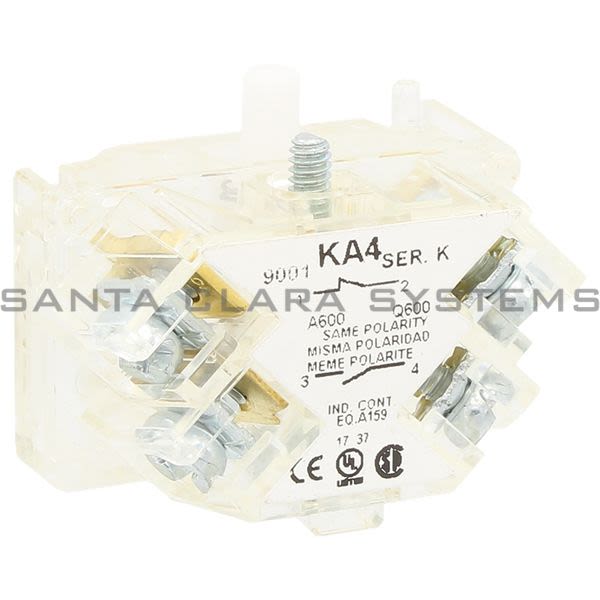

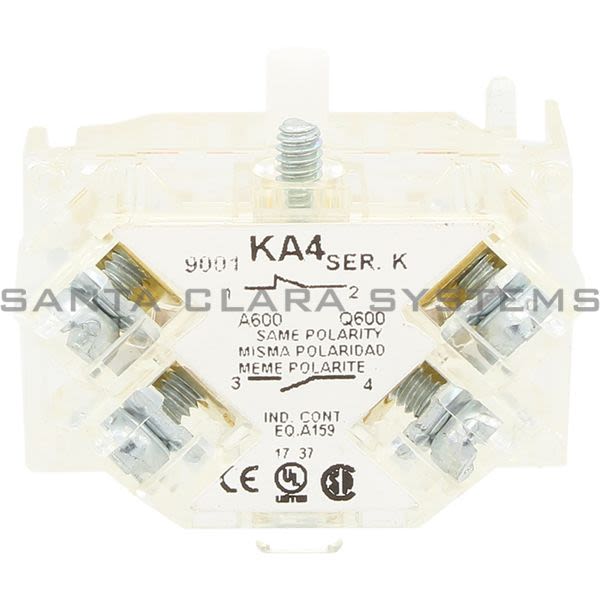

9001-KA4

Square D - Contact Block

Current response time:

8 Minutes 4 Seconds

*Santa Clara Systems is not a Square D Authorized Distributor.

Description: Contact Block
Product or component type: Contact block with protected terminals
Device short name: 9001K
terminals description ISO n1: (1-2-3-4)OC_OFF
Product weight: 0.027 kg
Contact operation: Late-break
Positive opening: Without
Connections - terminals: Screw clamp terminals (1 x 0.22...2 x 2.5 mm) conforming to IEC 60947-1
Tightening torque: 0.8 N.m conforming to IEC 60947-1
Shape of screw head: Cross slotted head
Contacts material: Silver alloy contacts

Short-circuit protection: 10 A cartridge fuse conforming to IEC 60947-5-1
[Ith] conventional free air thermal current: 10:00 AM
[Ui] rated insulation voltage: 250 V (degree of pollution: 3) conforming to IEC 60947-1
[Uimp] rated impulse withstand voltage: 2.5 kV conforming to IEC 60947-1
Protective treatment: TC
Ambient air temperature for storage: -40...70 C
Ambient air temperature for operation: -25...70 C
Electrical shock protection class: Class II conforming to IEC 61140
IP degree of protection: IP20 conforming to IEC 60529
Product certifications: "UL 508

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 9001-KA4 . Santa Clara Systems carries 5,544 items from Square D.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
