BMH1402P32A1A

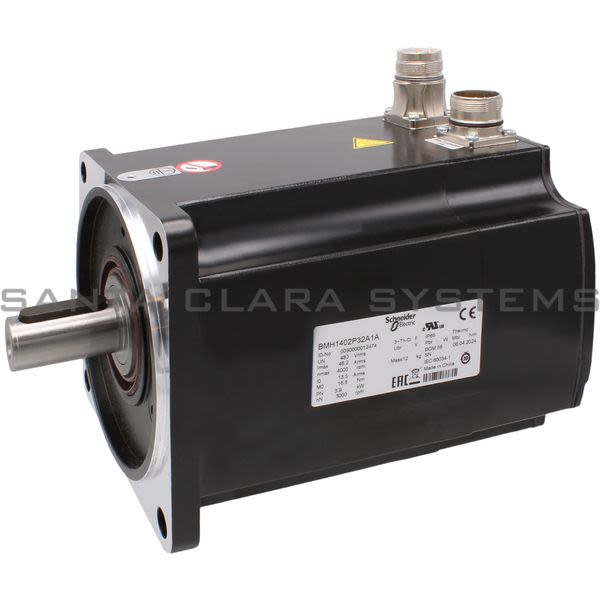

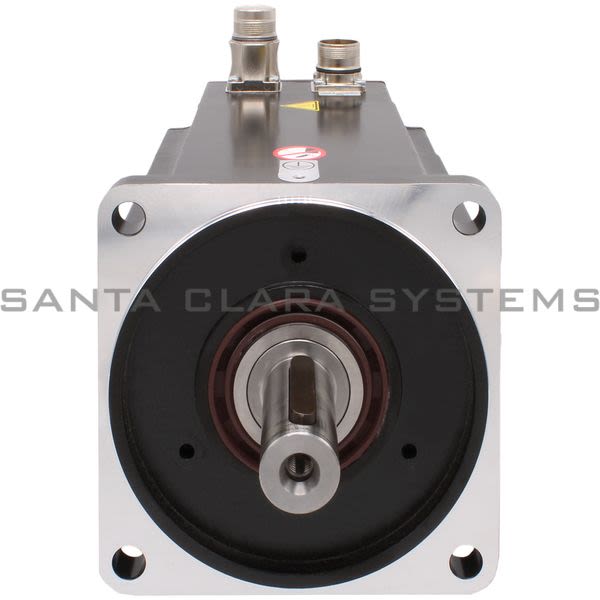

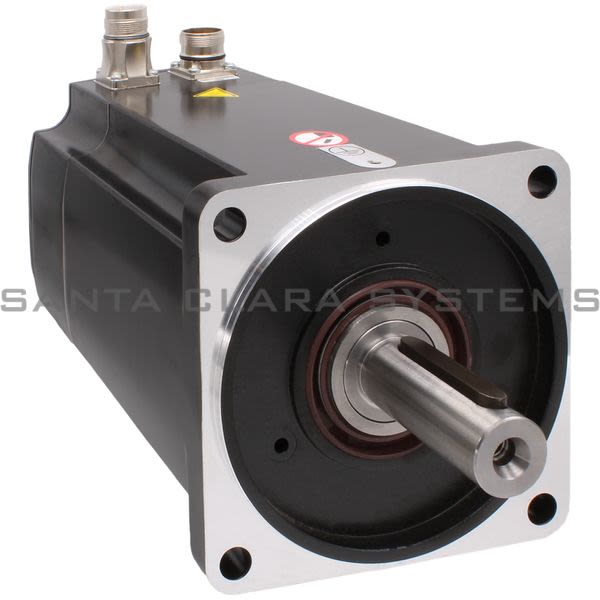

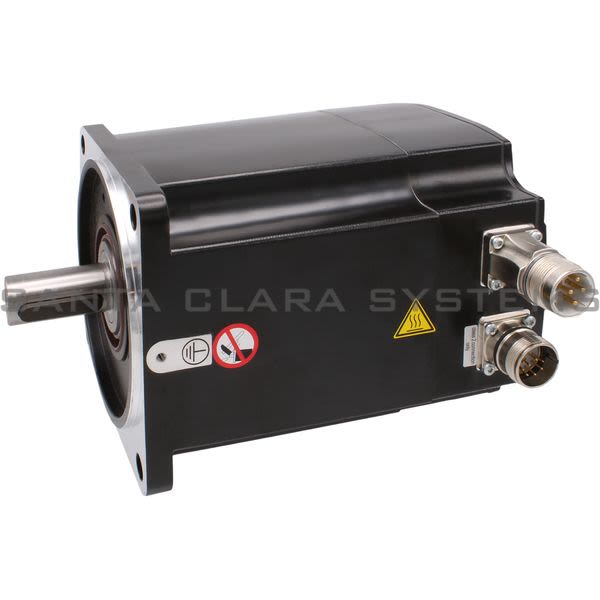

Schneider - servo motor BMH - 18.5 Nm - 4000 rpm - keyed shaft - without brake - IP65/IP67

Product Summary:

Product or component type: Servo motor
Range compatibility: Lexium 32
Category: 18282 - LEXIUM 32 MOTORS
Device short name: BMH
[Us] rated supply voltage: 480 V

Current response time:

12 Minutes 19 Seconds

*Santa Clara Systems is not a Schneider Authorized Distributor.

Description: servo motor BMH - 18.5 Nm - 4000 rpm - keyed shaft - without brake - IP65/IP67
Product or component type: Servo motor
Range compatibility: Lexium 32
Category: 18282 - LEXIUM 32 MOTORS
Device short name: BMH
[Us] rated supply voltage: 480 V
Discount Schedule: PC53
Maximum mechanical speed: 4000 rpm
Phase: Three phase
Nbr. of units in pkg.: 1
Continuous stall torque: 163.72 lbf.in (18.5 N.m) for LXM32.D72N4 24 A at 400 V three phase, 163.72 lbf.in (18.5 N.m) for LXM32.D72N4 24 A at 480 V three phase
Continuous stall current: 16.83 A
Package weight(Lbs): 27
Peak stall torque: 445.13 lbf.in (50.3 N.m) for LXM32.D72N4 24 A at 400 V three phase, 445.13 lbf.in (50.3 N.m) for LXM32.D72N4 24 A at 480 V three phase
Continuous power: 4.44 W
Returnability: N
Nominal output power: 3500 W for LXM32.D72N4 24 A at 400 V three phase, 3500 W for LXM32.D72N4 24 A at 480 V three phase
maximum current Irms: 57.4 A for LXM32.D72N4
Country of origin: DE
Nominal torque: 107.96 lbf.in (12.2 N.m) for LXM32.D72N4 24 A at 480 V three phase, 107.96 lbf.in (12.2 N.m) for LXM32.D72N4 24 A at 400 V three phase
Maximum permanent current: 57.4 A
Nominal speed: 3000 rpm LXM32.D72N4 24 A at 400 V three phase, 3000 rpm LXM32.D72N4 24 A at 480 V three phase
Second shaft: Without second shaft end
Product compatibility: LXM32.D72N4 at 400...480 V three phase
Shaft diameter: 0.94 in (24 mm)
Shaft end: Keyed
Shaft length: 1.97 in (50 mm)

IP degree of protection: IP65 (standard), IP67 (with IP67 kit)
Key width: 1.57 in (40 mm)
Speed feedback resolution: 131072 points/turn x 4096 turns
Feedback type: Multiturn SinCos Hiperface
Holding brake: Without
Motor flange size: 5.51 in (140 mm)
Mounting support: International standard flange
Number of motor stacks: 2
Electrical connection: Straight connectors
Torque constant: 1.1 N.m/A at 248 F (120 C)
Back emf constant: 70.7 V/krpm at 248 F (120 C)
Number of motor poles: 10
Rotor inertia: 32 kg.cm
Stator resistance: 0.23 Ohm at 68 F (20 C)
Stator inductance: 3 mH at 68 F (20 C)
Stator electrical time constant: 13 ms at 68 F (20 C)
maximum radial force Fr: 2240 N at 1000 rpm, 1780 N at 2000 rpm, 1550 N at 3000 rpm
maximum axial force Fa: 0.2 x Fr
Type of cooling: Natural convection
Length: 7.56 in (192 mm)
Centring collar diameter: 5.12 in (130 mm)
Centring collar depth: 0.14 in (3.5 mm)
Number of mounting holes: 4
Mounting holes diameter: 0.43 in (11 mm)
Circle diameter of the mounting holes: 6.5 in (165 mm)
Product weight: 26.46 lb(US) (12 kg)
