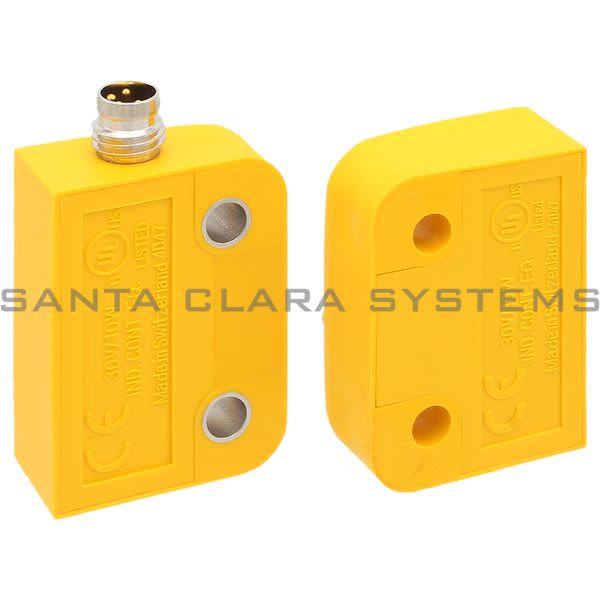

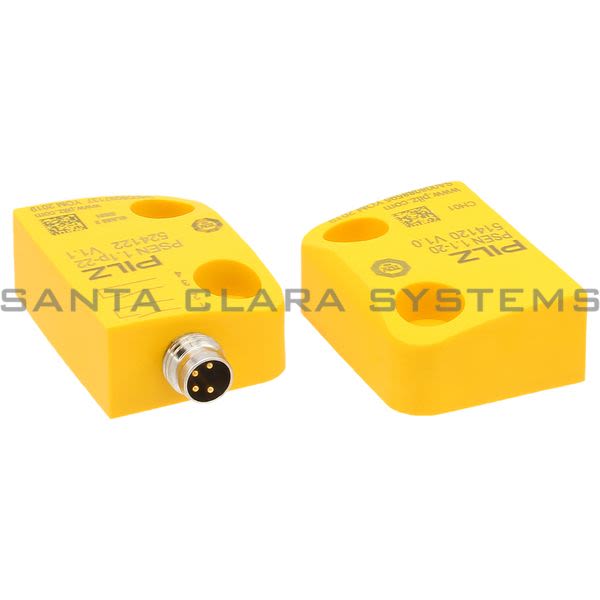

- Description: Magnetic safety switch 2 N/O, 4-pin M8 male connector, square design. Height design 13 mm IP67, operating distance 8mm,
- Gross weight:: 44 g
- Net weight:: 36 g
- Ambient temperature:: -10 - 55 C
- Height dimension:: 36.0 mm
- Width dimension:: 26.0 mm
- Depth dimension:: 13.0 mm
- Protection type, housing:: IP65, IP67
- Approvals:: CE, cULus Listed, EAC (Eurasian), TV
- Sensor principle:: magnetic
- Number of N/O:: 2
- Connection type:: M8, 4pol. male
- Switching voltage:: 24 V
- Type of switching voltage:: DC
- Assured switching distance:: 8.0 mm
- Assured release distance:: 26.0 mm
- Status indicator:: Without LED
- Design:: square
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on PSEN1.1P-22-PSEN1.1-20-8MM-IX1-1UNIT-504222 . Santa Clara Systems carries 338 items from Pilz.
- Operating Distance 8mm
- For Applications With Psen Ix1 Pu = 1 Piece With Actuator.
- Magnetic Safety Switch 2 N/o
- 4-Pin M8 Male Connector
- Square Design. Height Design 13 Mm Ip67
