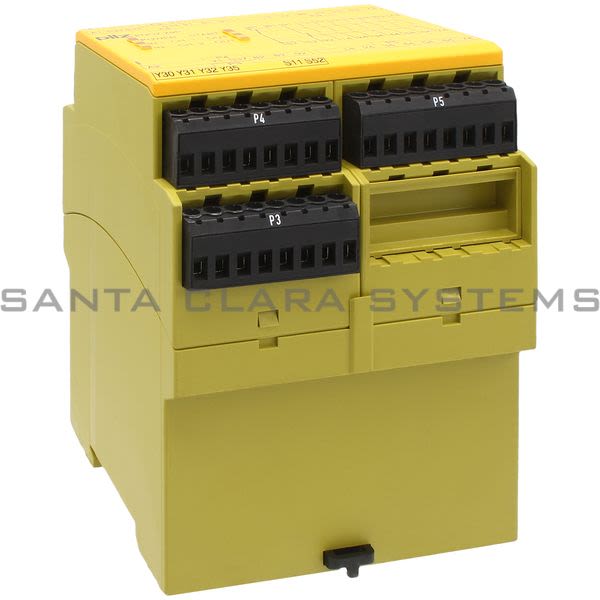

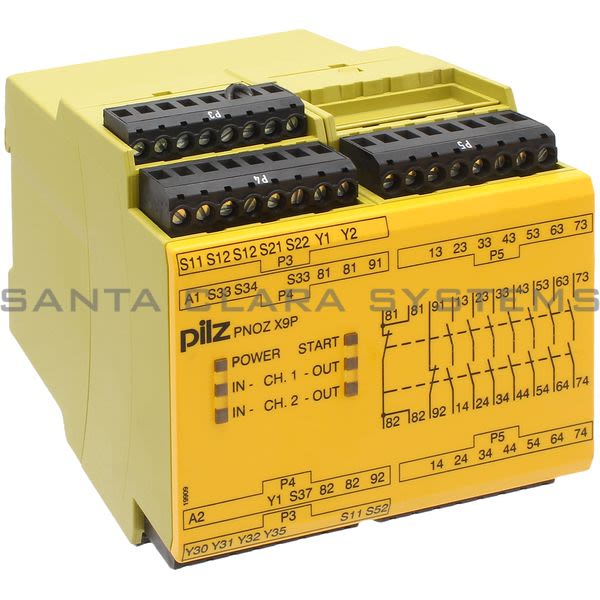

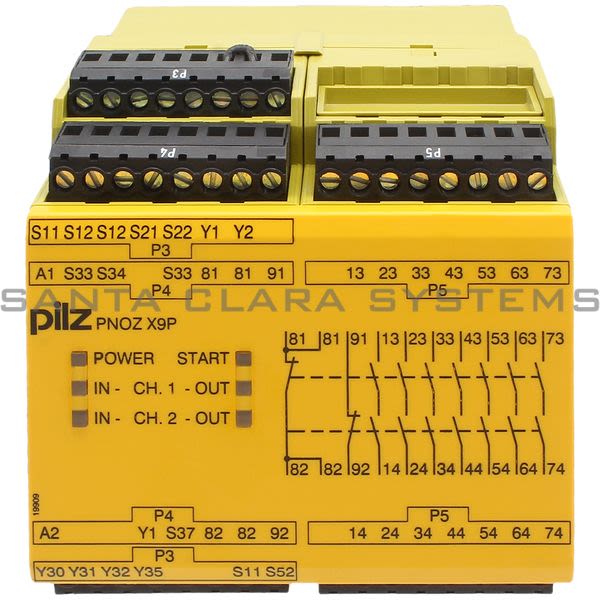

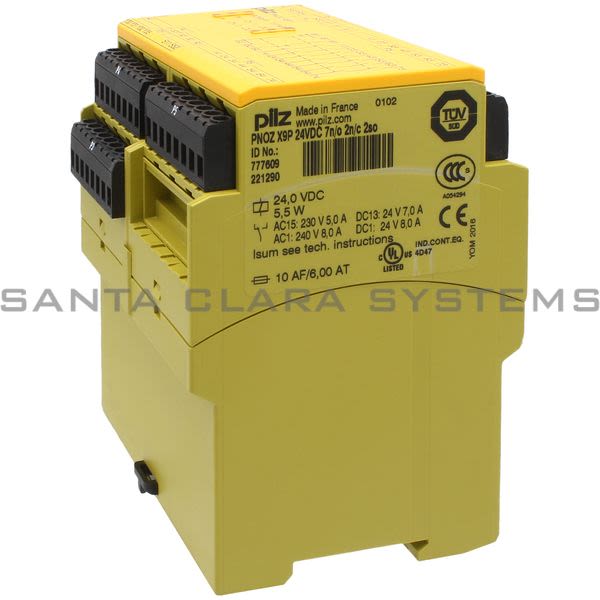

PNOZX9P24VDC7N-O2N-C2SO-777609

Pilz - Safety relay (standalone) Inputs: 1-/2-channel wiring with/without detection of shorts across contacts Outputs: 7 N/O, 2

Current response time:

5 Minutes 34 Seconds

Description: Safety relay (standalone) Inputs: 1-/2-channel wiring with/without detection of shorts across contacts Outputs: 7 N/O, 2
Gross weight:: 575 g
Net weight:: 570 g
Ambient temperature:: -10 - 55 C
Height dimension:: 94.0 mm
Width dimension:: 90.0 mm
Depth dimension:: 121.0 mm
Supply voltage (V):: 24,0
Supply voltage type:: DC
Terminal type:: Screw terminal
Terminal style:: Plug-in

Application options:: Safety gate monitor, Instantaneous E-STOP monitoring, Limit switch, Light beam device mon. Type 4, Light beam device mon. Type 2 w/o t/p, Light beam device mon. Type 2 with t/p
Approvals:: CE, cULus Listed, EAC (Eurasian), TV, CCC
Operating modes:: Single-channel, Automatic reset, Dual-channel, Manual reset, Detection of shorts across contacts, Monitored manual reset, without detection of shorts across contacts
Product standard:: EN 60947-5-1
Standards:: EN 60204-1, EN 62061, EN ISO 13849-1, VDE 0113-1
Number of instantaneous safety contacts:: 7
Number of auxiliary contacts:: 2
Number of semiconductor outputs:: 2
Stop category:: 0
Max. current at DC13 I (6 cycles/min):: 7.0 A
Max. current at AC15:: 5.0 A

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on PNOZX9P24VDC7N-O2N-C2SO-777609 . Santa Clara Systems carries 338 items from Pilz.

Plug-In Terminals Of Screw Type Monitoring E-Stop
Safety Gates.

Safety Relay (Standalone) Inputs: 1-/2-Channel Wiring With/without Detection Of Shorts Across Contacts Outputs: 7 N/o
2 N/c
2 Semiconductor. Automatic/monitored Start Ub 24 V Dc
Width: 90 Mm
