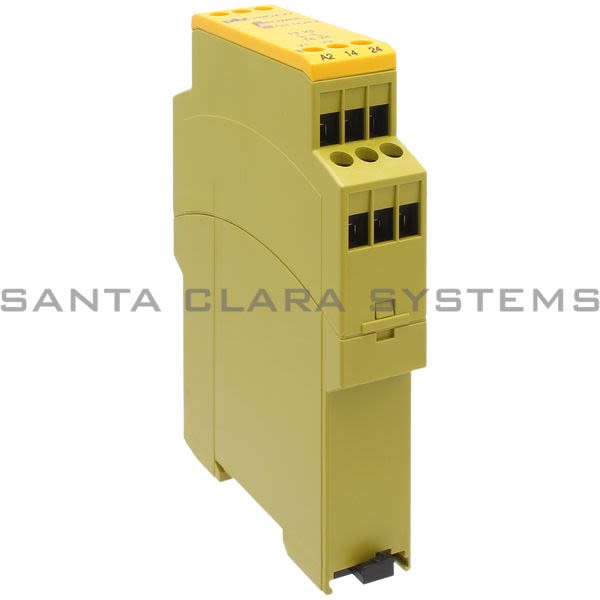

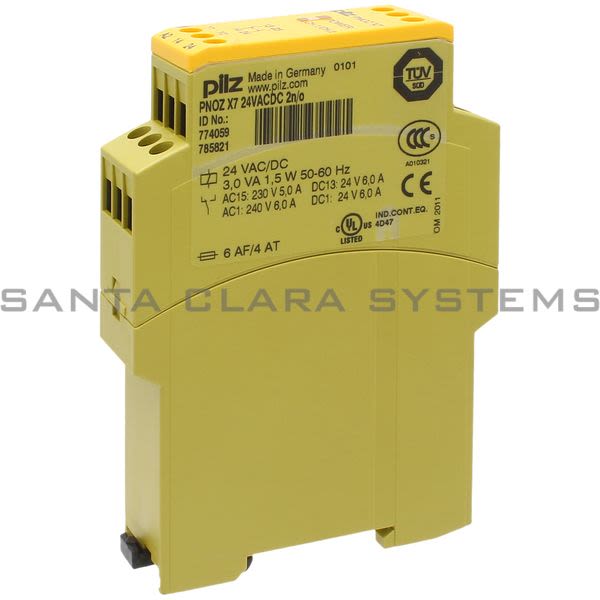

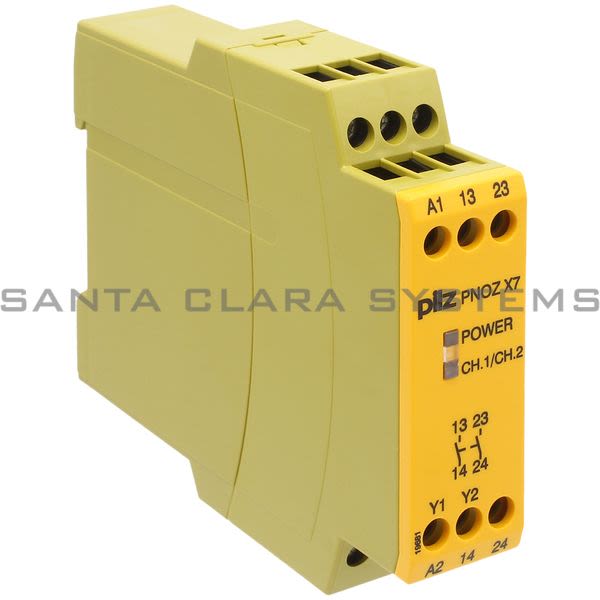

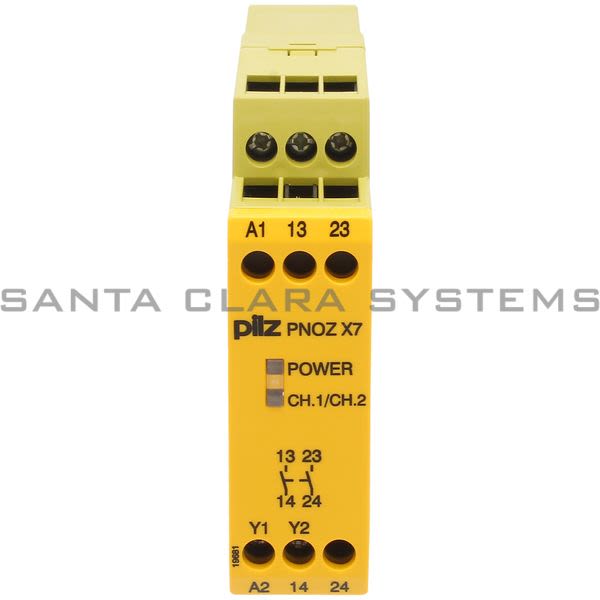

- Description: Safety relay (standalone) Inputs: Single-channel wiring Outputs: 2 N/O. Automatic/manual start UB 24 V AC/DC, width: 22.
- Gross weight:: 195 g
- Net weight:: 185 g
- Ambient temperature:: -10 - 55 C
- Height dimension:: 87.0 mm
- Width dimension:: 22.5 mm
- Depth dimension:: 121.0 mm
- Supply voltage (V):: 24,0
- Supply voltage type:: AC/DC
- Terminal type:: Screw terminal
- Terminal style:: fixed
- Application options:: Safety gate monitor, Instantaneous E-STOP monitoring, Limit switch
- Approvals:: CE, cULus Listed, EAC (Eurasian), TV, KOSHA, CCC
- Operating modes:: Single-channel, Automatic reset, Manual reset
- Product standard:: EN 60947-5-1
- Standards:: EN 60204-1, EN 62061, EN ISO 13849-1, VDE 0113-1
- Number of instantaneous safety contacts:: 2
- Stop category:: 0
- Max. current at DC13 I (6 cycles/min):: 6.0 A
- Max. current at AC15:: 5.0 A
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on PNOZX724VACDC2N-O-774059 . Santa Clara Systems carries 339 items from Pilz.
- Safety Gates.
- Safety Relay (Standalone) Inputs: Single-Channel Wiring Outputs: 2 N/o. Automatic/manual Start Ub 24 V Ac/dc
- Width: 22.5 Mm
- Plug-In Terminals Of Screw Type Monitoring E-Stop
