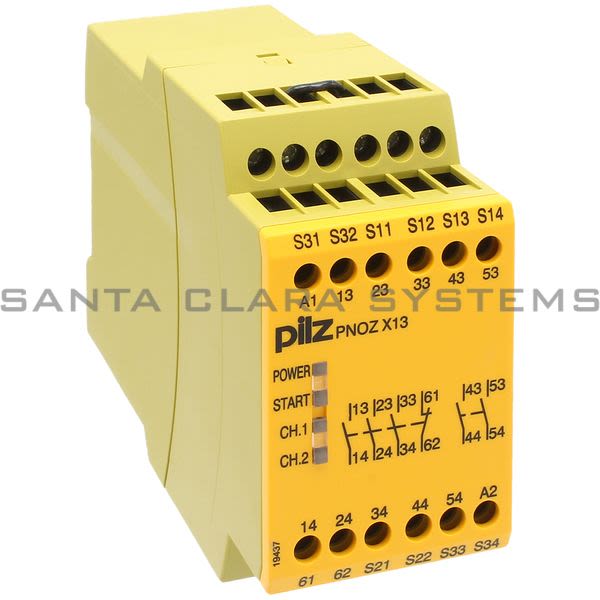

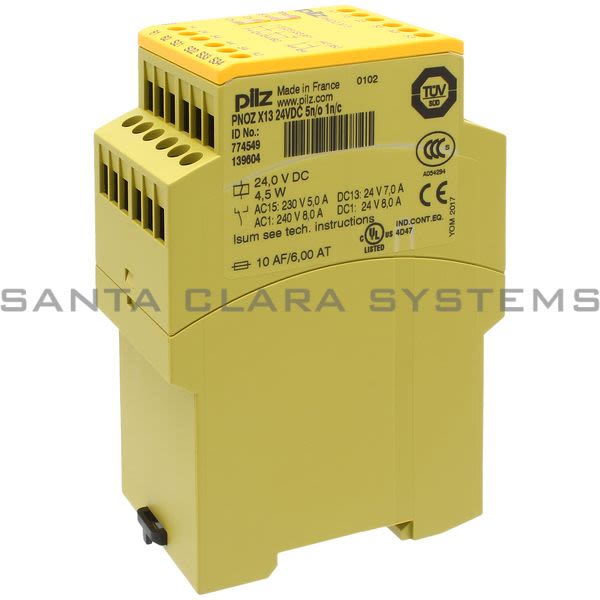

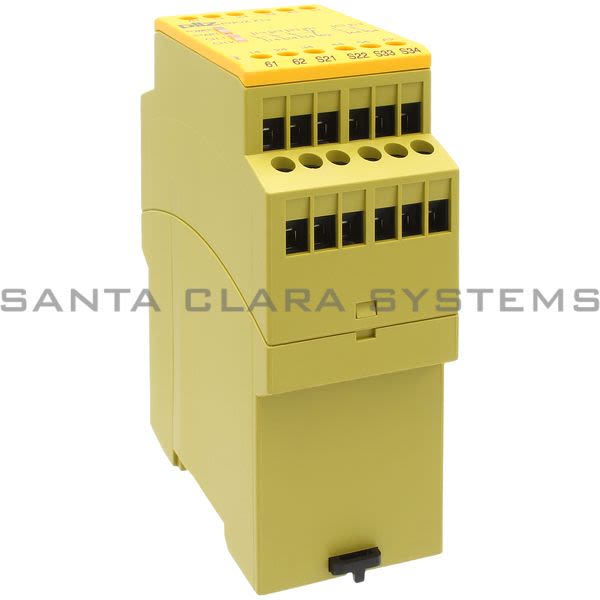

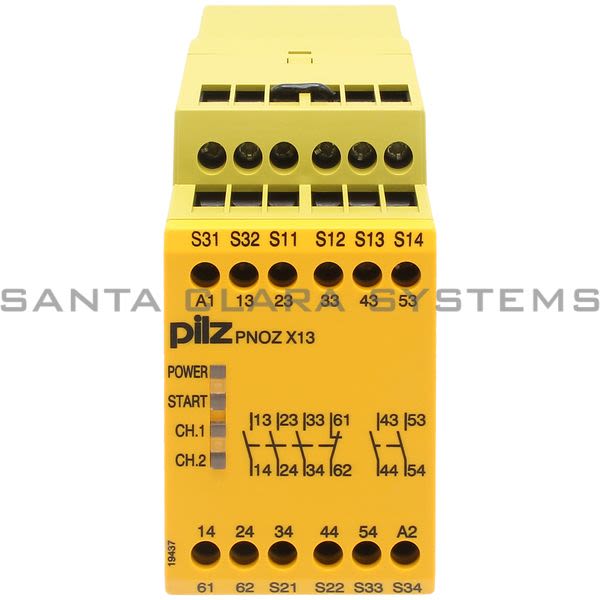

- Description: Safety relay (standalone) Inputs: 1-/2-channel wiring with/without detection of shorts across contacts Outputs: 5 N/O, 1
- Gross weight:: 355 g
- Net weight:: 345 g
- Ambient temperature:: -10 - 55 C
- Height dimension:: 87.0 mm
- Width dimension:: 45.0 mm
- Depth dimension:: 121.0 mm
- Supply voltage (V):: 24,0
- Supply voltage type:: DC
- Terminal type:: Screw terminal
- Terminal style:: fixed
- Application options:: Safety gate monitor, Instantaneous E-STOP monitoring, Limit switch
- Approvals:: CE, cULus Listed, EAC (Eurasian), TV, CCC
- Operating modes:: Single-channel, Automatic reset, Dual-channel, Detection of shorts across contacts, Monitored manual reset
- Product standard:: EN 60947-5-1
- Standards:: EN 60204-1, EN 62061, EN ISO 13849-1, VDE 0113-1
- Number of instantaneous safety contacts:: 5
- Number of auxiliary contacts:: 1
- Stop category:: 0
- Max. current at DC13 I (6 cycles/min):: 7.0 A
- Max. current at AC15:: 5.0 A
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on PNOZX1324VDC5N-O1N-C-774549 . Santa Clara Systems carries 338 items from Pilz.
- Plug-In Terminals Of Screw Type Monitoring E-Stop
- Safety Gates.
- Safety Relay (Standalone) Inputs: 1-/2-Channel Wiring With/without Detection Of Shorts Across Contacts Outputs: 5 N/o
- 1 N/c Ub 24 V Dc
- Width: 45 Mm
