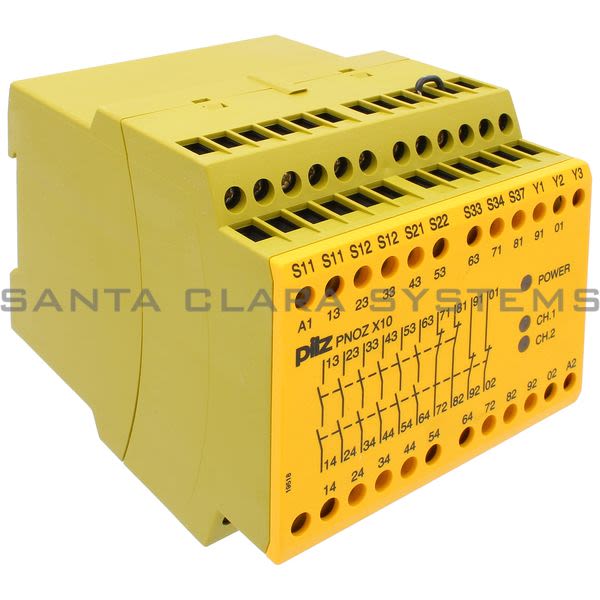

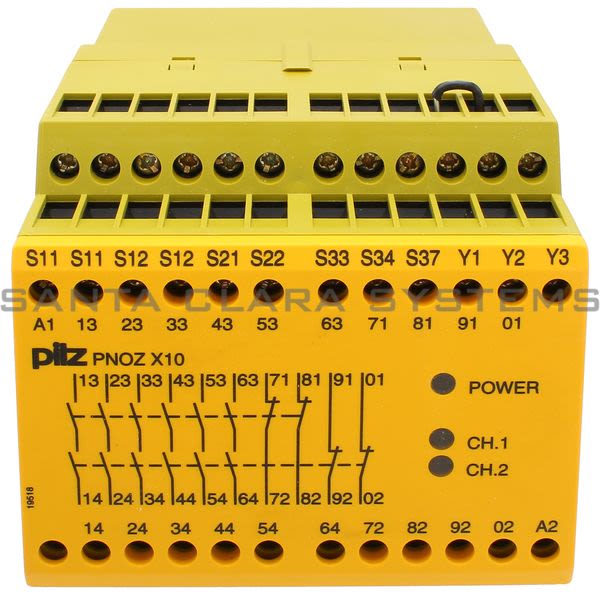

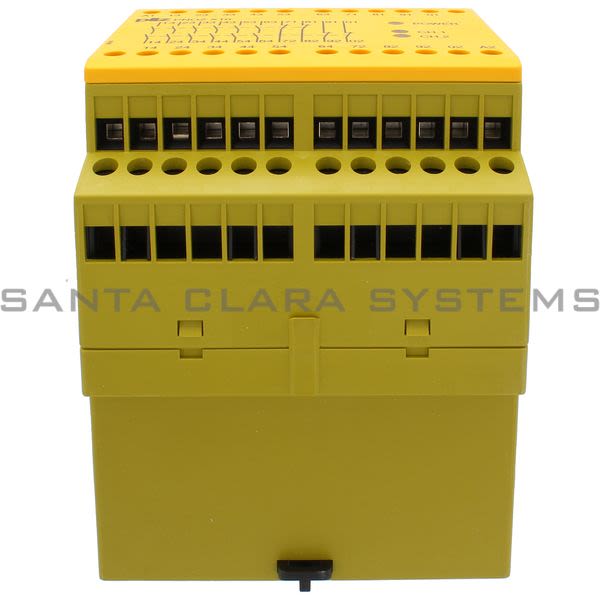

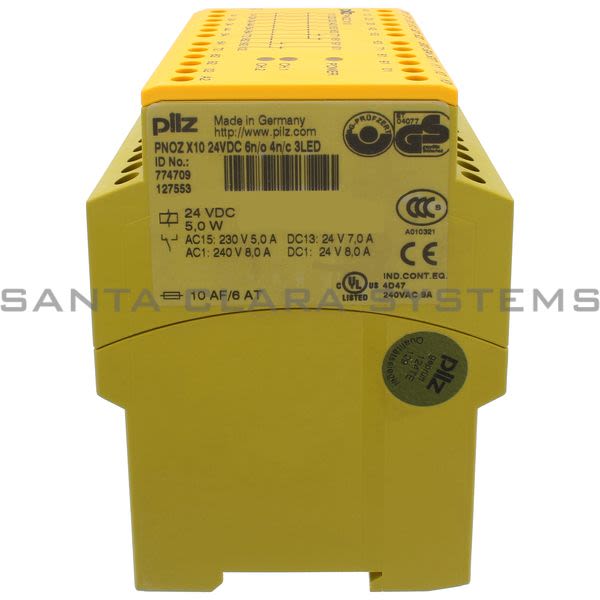

- Description: Safety relay (standalone) Inputs: 1-/2-channel wiring with/without detection of shorts across contacts Outputs: 6 N/O, 4
- Gross weight:: 550 g
- Net weight:: 540 g
- Ambient temperature:: -10 - 55 °C
- Height dimension:: 87.0 mm
- Width dimension:: 90.0 mm
- Depth dimension:: 121.0 mm
- Supply voltage (V):: 24,0
- Supply voltage type:: DC
- Terminal type:: Screw terminal
- Terminal style:: fixed
- Application options:: Safety gate monitor, Instantaneous E-STOP monitoring, Limit switch, Light beam device mon. Type 4, Light beam device mon. Type 2 w/o t/p, Light beam device mon. Type 2 with t/p
- Operating modes:: Single-channel, Automatic reset, Dual-channel, Manual reset, Detection of shorts across contacts, Monitored manual reset, without detection of shorts across contacts
- Max. current at DC13 I (6 cycles/min):: 7.0 A
- Max. current at AC15:: 5.0 A
- Approvals:: CE, cULus Listed, EAC (Eurasian), TÜV, CCC
- Product standard:: EN 60947-5-1
- Standards:: EN 60204-1, EN 62061, EN ISO 13849-1, VDE 0113-1
- Number of instantaneous safety contacts:: 6
- Number of auxiliary contacts:: 4
- Stop category:: 0
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on PNOZX1024VDC6N-O4N-C3LED-774709 . Santa Clara Systems carries 339 items from Pilz.
- Plug-In Terminals Of Screw Type Monitoring E-Stop
- Safety Gates.
- Safety Relay (Standalone) Inputs: 1-/2-Channel Wiring With/without Detection Of Shorts Across Contacts Outputs: 6 N/o
- 4 N/c. Automatic/monitored Start Ub 24 V Dc
- Width: 90 Mm
