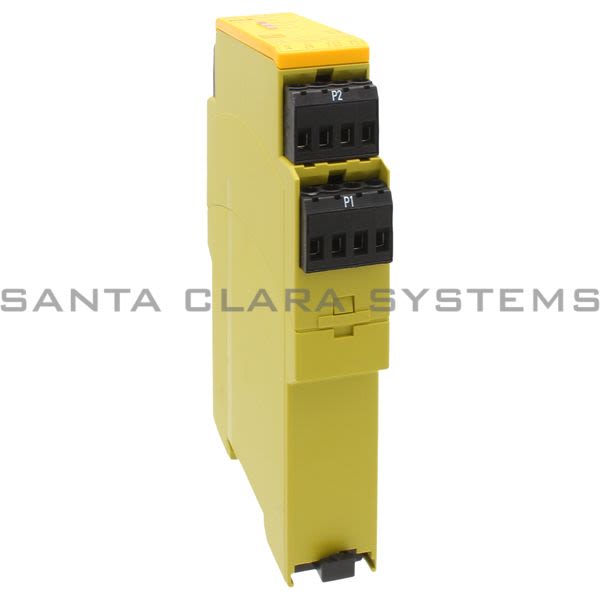

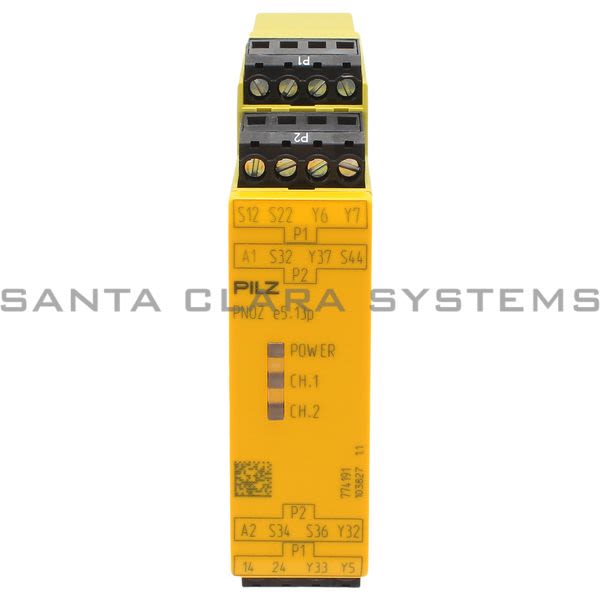

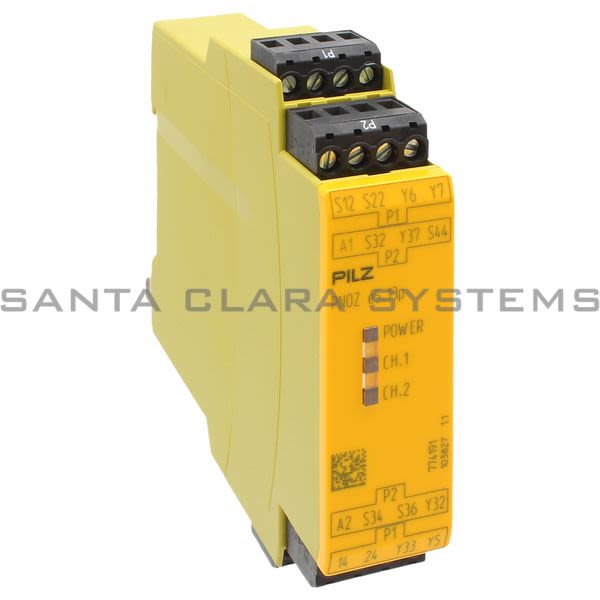

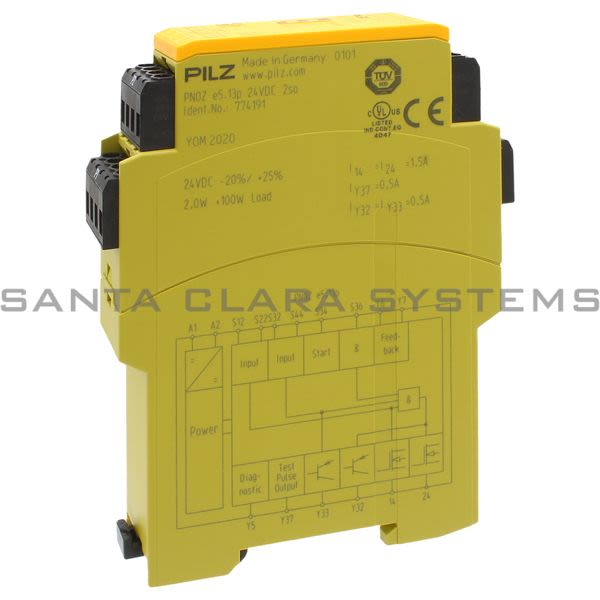

PNOZE5.13P24VDC2SO-774191

Pilz - Safety relay (standalone) Inputs: 1-/2-channel wiring without detection of shorts across contacts Outputs: 2 safety outp

Current response time:

By 5AM PT on Tuesday

Emergency?

Description: Safety relay (standalone) Inputs: 1-/2-channel wiring without detection of shorts across contacts Outputs: 2 safety outp
Gross weight:: 145 g
Net weight:: 130 g
Ambient temperature:: -10 - 55 C
Height dimension:: 94.0 mm
Width dimension:: 22.5 mm
Depth dimension:: 121.0 mm
Supply voltage (V):: 24,0
Supply voltage type:: DC
Terminal type:: Screw terminal

Terminal style:: Plug-in
Application options:: Safety gate monitor, Instantaneous E-STOP monitoring, Limit switch, Light beam device mon. Type 2 w/o t/p, Light beam device mon. Type 2 with t/p
Approvals:: CE, cULus Listed, EAC (Eurasian), TV, CCC
Operating modes:: Single-channel, Automatic reset, Dual-channel, Detection of shorts across contacts, Start-up testing, Monitored manual reset, without detection of shorts across contacts, Self test, with AND input, With OR input
Product standard:: EN 60947-5-1
Standards:: DIN V VDE 801-1/A1, EN 60204-1, EN 62061, EN ISO 13849-1, VDE 0113-1, VDE 0116
Number of instantaneous safety outputs:: 2 ST
Number of test pulse outputs:: 1
Stop category:: 0

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on PNOZE5.13P24VDC2SO-774191 . Santa Clara Systems carries 339 items from Pilz.

Plug-In Terminals Of Screw Type
Connecting Several Devices
E-Stop & Safety Gate Monitor
Evaluation Device Safety Sensor.

Safety Relay (Standalone) Inputs: 1-/2-Channel Wiring Without Detection Of Shorts Across Contacts Outputs: 2 Safety Outputs + 1 Auxiliary Output In Semiconductor Technology
Delayed Internal And Operation
Automatic/monitored Start
Ub 24 V Dc
Width: 22.5 Mm
