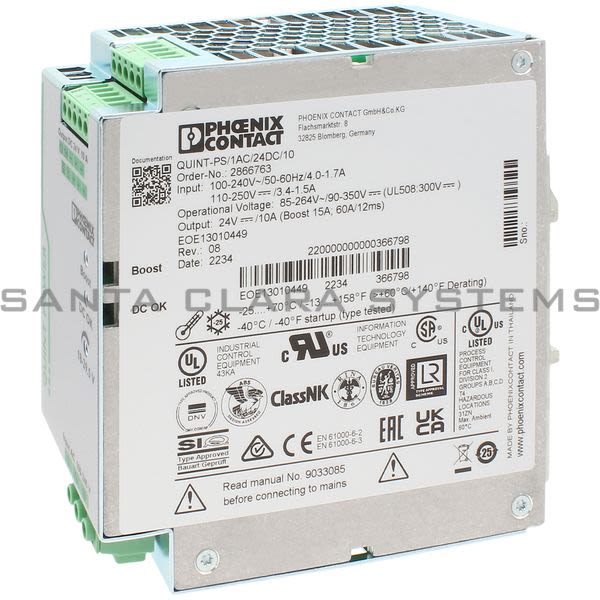

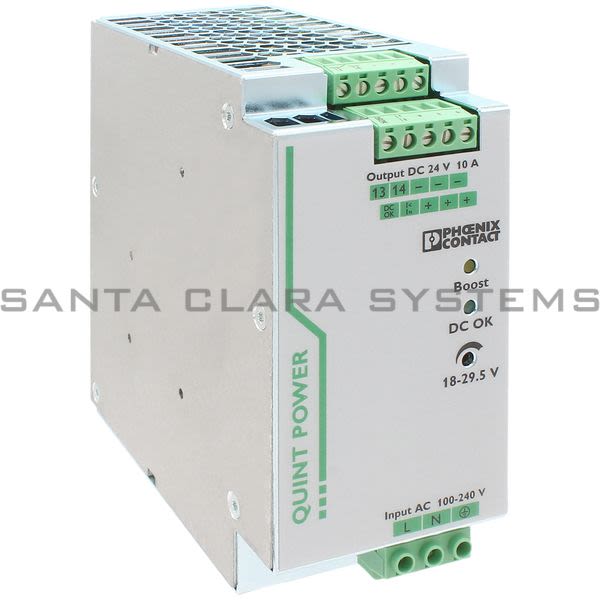

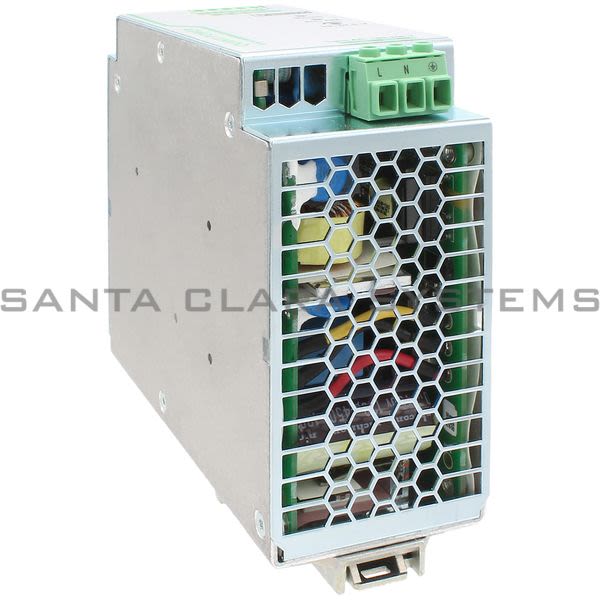

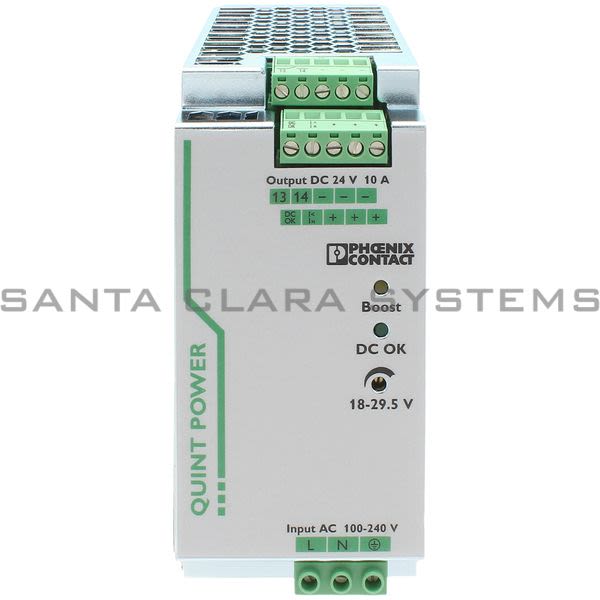

Description: Power Supply | Quint-PS/1AC/24DC/10
Degree of protection: IP20
Nominal input voltage range: 100 V AC ... 240 V AC
Input voltage range: 85 V AC ... 264 V AC
Dielectric strength maximum: 300 V AC
AC frequency range: 45 Hz ... 65 Hz
Frequency range DC: 0 Hz
Nominal power consumption: 302 VA
Inrush current: < 15 A

Mains buffering time: > 36 ms (120 V AC) / > 36 ms (230 V AC)
Input fuse: 10 A (slow-blow, internal)
Recommended breaker for input protection: 10 A ... 20 A (AC: Characteristics B, C, D, K)
Power factor (cos phi): 0.85
Type of protection: Transient surge protection
Protective circuit/component: Varistor, gas-filled surge arrester
Setting range of the output voltage: 18 V DC ... 29.5 V DC (> 24 V DC, constant capacity restricted)
Protection against overvoltage at the output (OVP): < 35 V DC
Protection class: I
