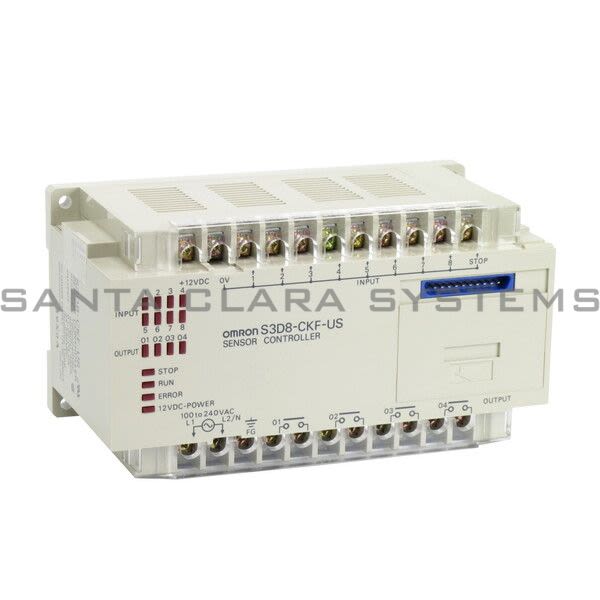

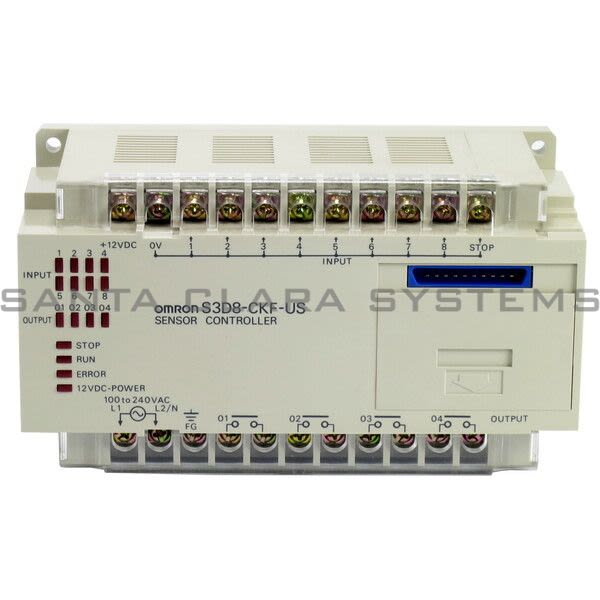

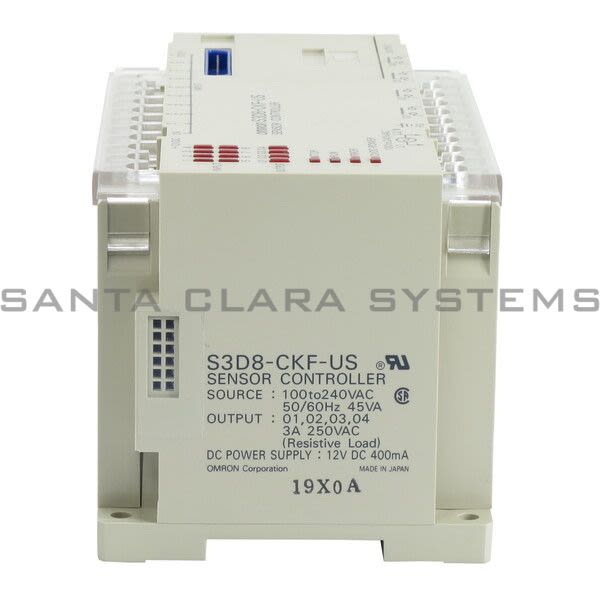

- Description: Sensor Controller NPN Out
- Supply Voltage: 100 to 240 VAC ±10%, 50/60 Hz
- Power Consumption: Approx. 35 VA
- Input Signal - ON Level: 0 to 3 V; IN1 to 3: 9 mA min., IN4 to 8: 8 mA min.
- Input Signal - OFF Level: 9 to 12 V; IN1 to 3: 1.5 mA max., IN4 to 8: 2 mA max.
- Input Signal - Current between 0 V and IN terminals and IN terminals: 12 mA typ. (20 mA max.)
- Input Signal - Max. Applied Voltage: 30 VDC
- Input Signal - Input Response Time - Contact: 22 ms + chattering time (for stop input and when input is specified by contact input key)
- Input Signal - Input Response Time - Transistor: 1 ms (up to 60 steps)/2 ms (61 steps or above)
- Control Output - Switching Capacity - Contact: 3 A, 250 VAC (cos? = 1), SPST-NO
- Control Output - Switching Capacity - Transistor: 80 mA, 30 VDC max. ON-state residual voltage: 1 V max. OFF-state leakage current: 0.1 mA max
- Control Output - Response Time - COntact: Input response time + 20 ms max.
- Control Output - Response Time - Transistor: Input response time + 1 ms
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on S3D8-CKF-US . Santa Clara Systems carries 8,879 items from Omron.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
