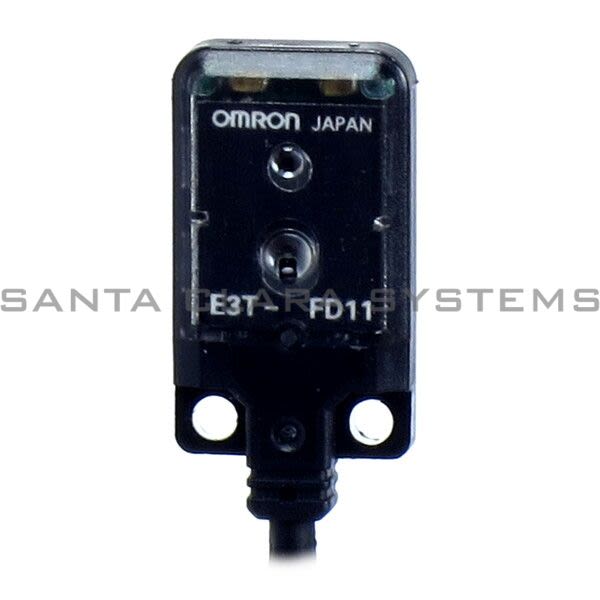

- Description: Photoelectric Sensor
- Response Time: Operate or reset: 1 ms max.
- Vibration Resistance: Destruction: 10 to 2,000 Hz, 1.5 mm double amplitude or 300 m/s2 for 0.5 hrs each in X, Y, and Z directions
- Sensing Distance: 5 to 30 mm (50 x 50 mm white paper)
- Minimum Detectable Object (typical): 0.15 mm dia. (sensing distance of 10 mm)
- Hysteresis (white paper): 6 mm max
- Light Source (wavelength): Red LED (?Pin-point? LED)= 650 nm
- Power Supply Voltage: 12 to 24 VDC ±10%, ripple (p-p) 10% max.
- Ambient Illumination: Incandescent lamp: 5,000 lx max. Sunlight: 10,000 lx max.
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on E3T-FD11 . Santa Clara Systems carries 8,879 items from Omron.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
