TCSEGDB23F24FA

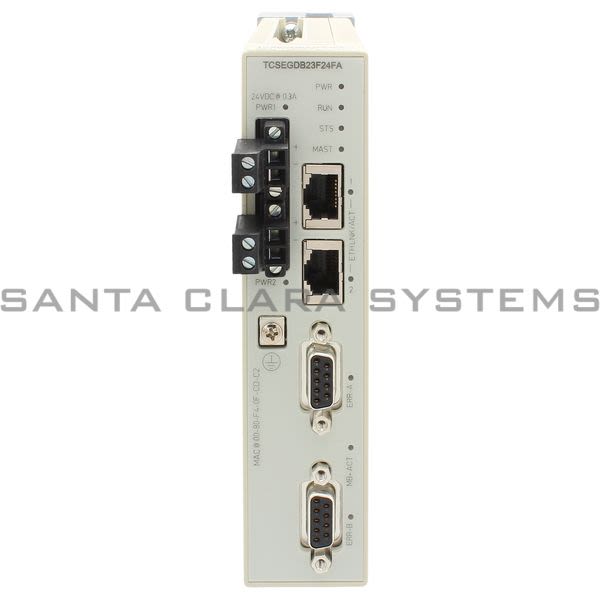

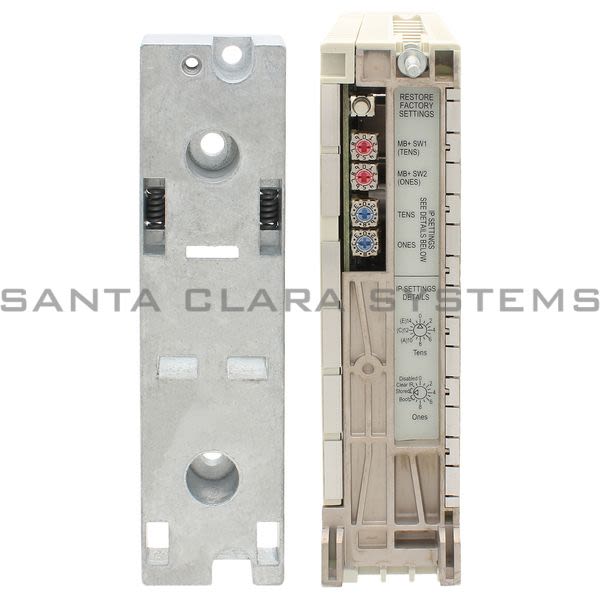

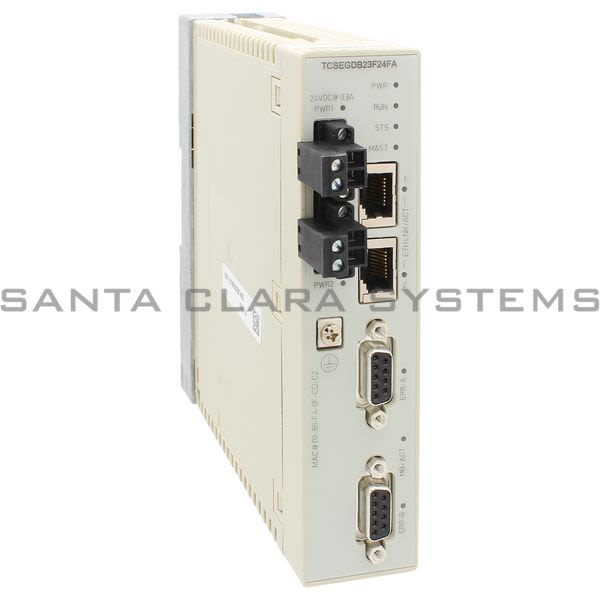

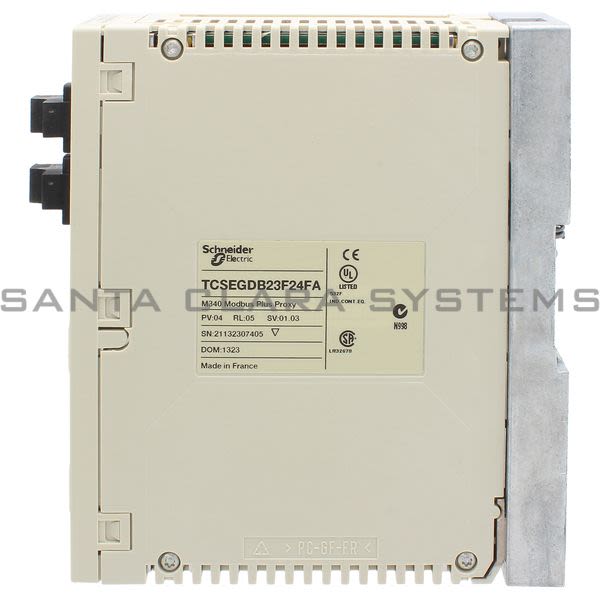

Modicon - Modbus Plus proxy module - for Modicon M340 PLC

Current response time:

14 Minutes 33 Seconds

*Santa Clara Systems is not a Modicon Authorized Distributor.

Description: Modbus Plus proxy module - for Modicon M340 PLC
Range of product: Modicon M340 automation platform
Relative humidity: 10...95 % without condensation
Operating altitude: <= 6561.68 ft. (2000 m)
Communication gateway: Ethernet Modbus TCP to Modbus Plus
Ambient air temperature for operation: 32...140 F (0...60 C)
Product or component type: Modbus Plus proxy module
Product compatibility: M340 PLC
Ambient air temperature for storage: -49...185 F (-45...85 C)
Structure type: Industrial bus

Physical interface: 10/100BASE-T, RS485
Method of access: Token ring (Modbus Plus), CSMA/CD (Modbus TCP)
Transmission support medium: Single twisted pair cable (Modbus Plus), Category 5 shielded twisted pair (STP) (Modbus TCP)
Transmission rate: 1 Mbit/s for bus length of 450 m per segment (Modbus Plus), 1 Mbit/s for bus length of 1800 m with 3 repeaters (Modbus Plus), 10...100 Mbit/s for bus length of 328.08 ft. (100 m) without repeater (Modbus TCP)
Number of slave: 128
Communication service: Modbus Plus messaging, Configuration control, Diagnostics, Modbus Plus server (scanned by the PLC), FDR, SNMP network management, Read/write variables, Peer cop dialogue, Global Data, Modbus TCP messaging
Integrated connection type: 2 Ethernet TCP/IP with RJ45 connector (Modbus TCP), 2 Modbus with SUB-D 9 connector (Modbus Plus)
Current consumption: 300 mA at 24 V DC external supply
Module format: Standard
