BMXP341000

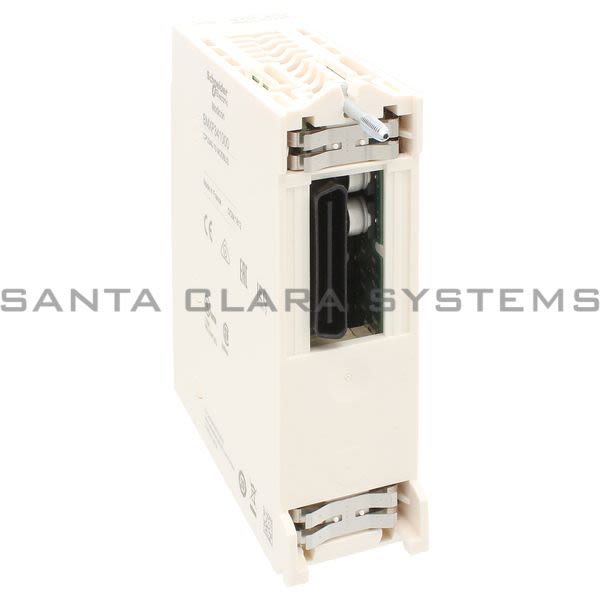

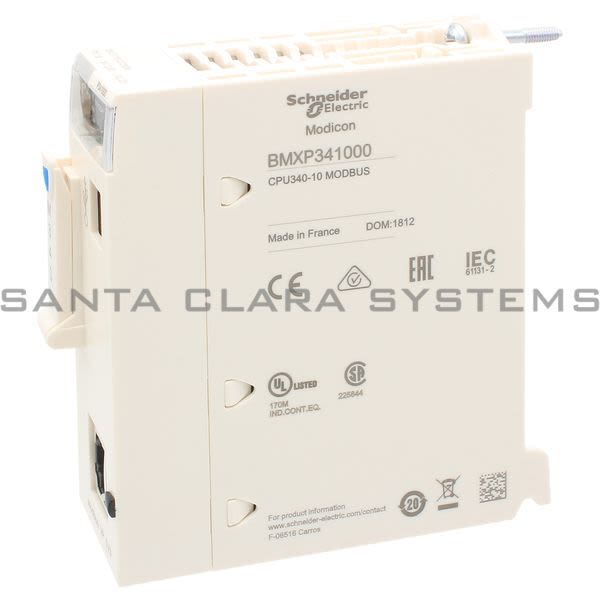

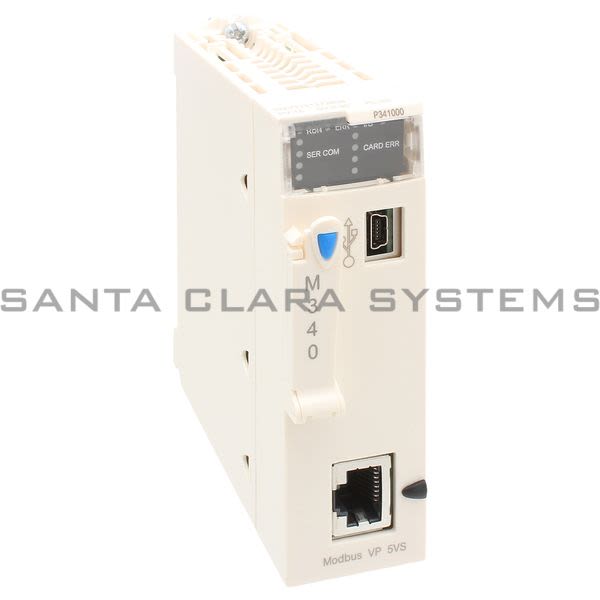

Modicon - processor module M340 - max 512 discrete + 128 analog I/O - Modbus

Current response time:

6 Minutes 2 Seconds

*Santa Clara Systems is not a Modicon Authorized Distributor.

Description: processor module M340 - max 512 discrete + 128 analog I/O - Modbus
Range of product: Modicon M340 automation platform
Product weight: 0.44 lb(US) (0.2 kg)
Protective treatment: TC
Relative humidity: 10...95 % without condensation
Standards: CSA C22.2 No 213 Class I Division 2, UL 508, CSA C22.2 No 142, EN 61131-2, IEC 61131-2
Control channels: Programmable loops
Ambient air temperature for operation: 32...140 F (0...60 C)
Product or component type: Processor module
Integrated connection type: USB port 12 Mbit/s, Non isolated serial link RJ45 character mode asynchronous in baseband RS232C full duplex 0.3...19.2 kbit/s 2 twisted shielded pairs, Non isolated serial link RJ45 character mode asynchronous in baseband RS485 half duplex 0.3...19.2 kbit/s 1 twisted shielded pair, Non isolated serial link RJ45 Modbus master/slave RTU/ASCII asynchronous in baseband RS232C half duplex 0.3...19.2 kbit/s 1 twisted shielded pair, Non isolated serial link RJ45 Modbus master/slave RTU/ASCII asynchronous in baseband RS485 half duplex 0.3...19.2 kbit/s 1 twisted shielded pair
Number of racks: 2
Communication module processor capacity: 2 Ethernet communication module, 2 AS-Interface module
IP degree of protection: IP20
Number of slots: 11
Number of devices per segment: 0...32 character mode, 0...32 Modbus
discrete I/O processor capacity: 512 I/O single-rack configuration
Number of devices: 2 point-to-point character mode, 2 point-to-point Modbus
analogue I/O processor capacity: 128 I/O multi-rack configuration, 66 I/O single-rack configuration

Bus length: 0...32.81 ft. (0...10 m) serial link non isolated character mode segment, 0...32.81 ft. (0...10 m) serial link non isolated Modbus segment, 0...3280.84 ft. (0...1000 m) serial link isolated character mode segment, 0...3280.84 ft. (0...1000 m) serial link isolated Modbus segment, 0...49.21 ft. (0...15 m) character mode point-to-point, 0...49.21 ft. (0...15 m) Modbus point-to-point
Number of application specific channel: 20
Tap links length: 15 m serial link non isolated character mode segment, 15 m serial link non isolated Modbus segment, 40 m serial link isolated character mode segment, 40 m serial link isolated Modbus segment
Monitoring: Diagnostic counters Modbus, Event counters Modbus
Number of addresses: 0...248 character mode, 0...248 Modbus
Requests: 1 K data bytes per request character mode, 252 data bytes per RTU request Modbus, 504 data bytes per ASCII request Modbus
Control parameter: One CRC on each frame (RTU) Modbus, One LRC on each frame (ASCII) character mode, One LRC on each frame (ASCII) Modbus
Memory description: 2048 kB internal RAM, 128 kB internal RAM data, 1792 kB internal RAM program constants and symbols, Supplied memory card (BMXRMS008MP) backup of programs, constants, symbols and data
Maximum size of object areas: 128 kB unlocated internal data, 16250 %Mi located internal bits, 32464 %MWi internal words located internal data, 32760 %KWi constant words located internal data
Default size of object areas: 128 %KWi constant words located internal data, 256 %Mi located internal bits, 512 %MWi internal words located internal data
Application structure: 1 cyclic/periodic master task, No auxiliary task, 32 event tasks, 1 periodic fast task
Execution time per instruction: 0.18 s Boolean, 0.26 s double-length words, 0.38 s single-length words, 1.74 s floating points
Number of instructions per ms: 4.2 Kinst/ms 65 % Boolean + 35 % fixed arithmetic, 5.4 Kinst/ms 100 % Boolean
System overhead: 0.2 ms fast task, 1.05 ms master task
Current consumption: 72 mA 24 V DC
Supply: Internal power supply via rack
Marking: CE

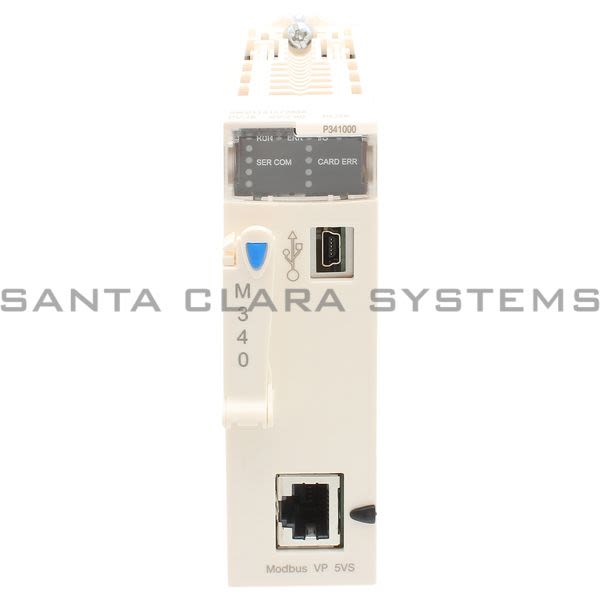

status LED: 1 LED green processor running (RUN), 1 LED red I/O module fault (I/O), 1 LED red memory card fault (CARD ERR), 1 LED red processor or system fault (ERR), 1 LED yellow activity on Modbus (SER COM)
