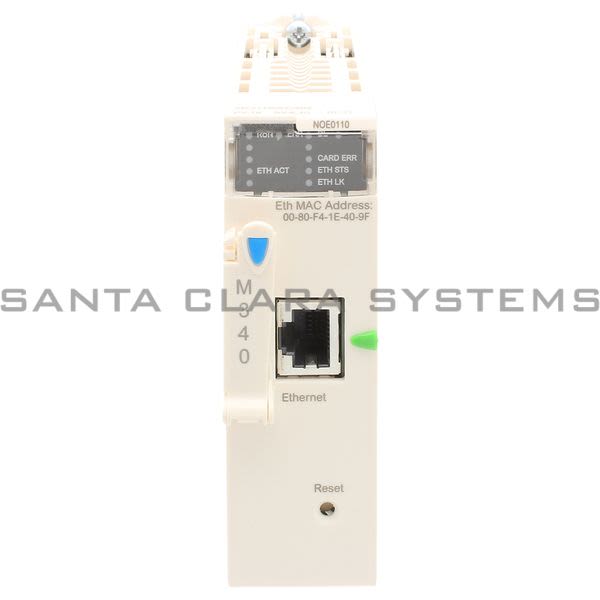

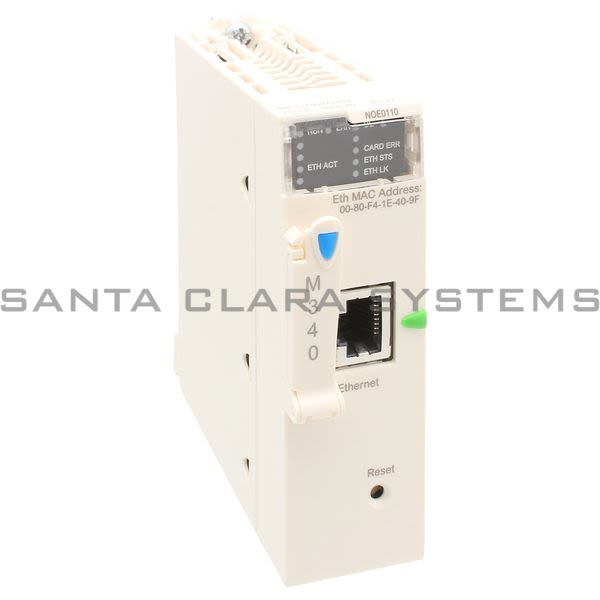

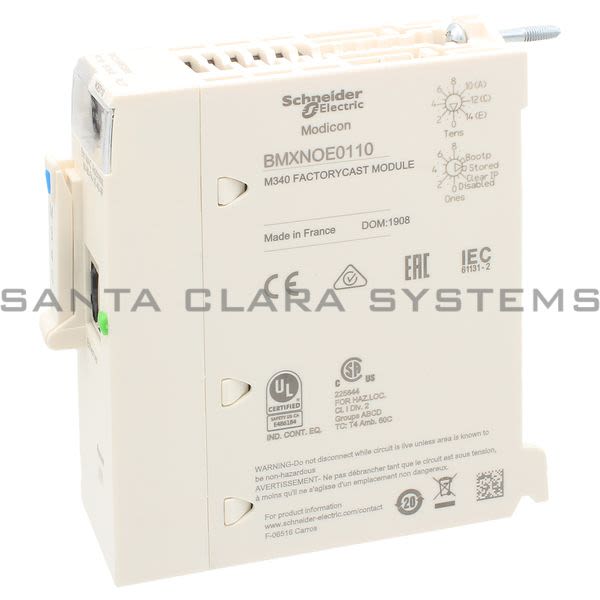

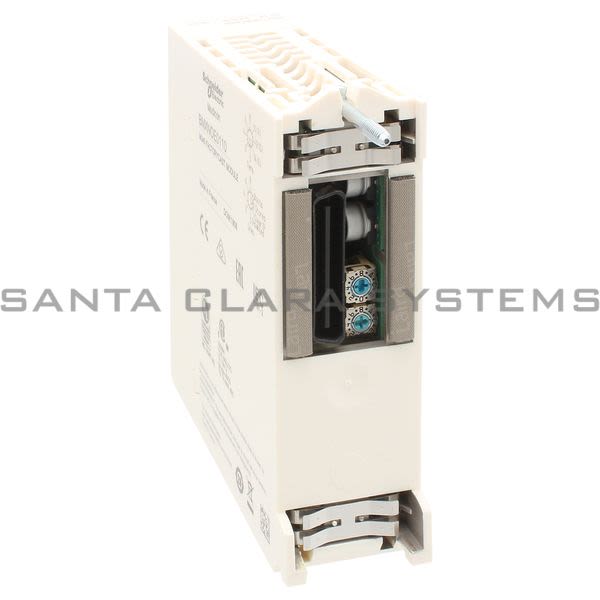

BMXNOE0110

Modicon - Ethernet module M340 - flash memory card - internal RAM 16 Mb - 1 x RJ45 10/100

Current response time:

13 Minutes 14 Seconds

*Santa Clara Systems is not a Modicon Authorized Distributor.

Description: Ethernet module M340 - flash memory card - internal RAM 16 Mb - 1 x RJ45 10/100
Range of product: Modicon M340 automation platform
Product weight: 0.44 lb(US) (0.2 kg)
Protective treatment: TC
Relative humidity: 10...95 % without condensation
Standards: CSA C22.2 No 142, EN/IEC 61131-2, CSA C22.2 No 213 Class I Division 2
Communication service: Bandwidth management, FDR server, Global Data, I/O scanning, Modbus TCP messaging, SNMP network administrator, Rack Viewer, Web server configurable, Data Editor (via PC, pocket PC or PDA terminal), SOAP XML Web service (server)
Ambient air temperature for operation: 32...140 F (0...60 C)
Product or component type: Ethernet TCP/IP network module
port Ethernet: 10BASE-T/100BASE-TX
Concept: Transparent Ready

Memory description: Supplied Flash memory card (BMXRWSC016M), Internal RAM 16000 kB
IP degree of protection: IP20
Integrated connection type: Ethernet TCP/IP RJ45 10/100 Mbit/s 1 twisted pair transparent ready class C30
Memory usage: User web page size : internal RAM, Activating the standard web server : supplied Flash memory card (BMXRWSC016M), Application saving : supplied Flash memory card (BMXRWSC016M)
Marking: CE
Supply: Internal power supply via rack
Product certifications: UL 508
Local signaling: 1 LED green activity on Ethernet network (ETH ACT), 1 LED green processor running (RUN), 1 LED green status of Ethernet network (ETH STS), 1 LED red data rate (ETH 100), 1 LED red memory card fault (CARD ERR), 1 LED red processor or system fault (ERR)
Control type: RESET push-button cold restart
Current consumption: 90 mA at 24 V DC
Module format: Standard
